Durable Commercial Truck Scales Q235 Steel 3x16m 60 Ton Electronic Digital

Basic Information
Place of Origin: Guangdong, China
Brand Name: Keda
Certification: ISO
Model Number: SCS-60T
Minimum Order Quantity: 1 set
Price: USD5000~14500
Packaging Details: The body of truck weight bridge is nude packed and the accessories are packed in cartons
Delivery Time: 10~25 days
Payment Terms: L/C, T/T
Supply Ability: 100 Set/Sets per Month
Material: Q235 Display: LED
Load Cell: Digital Power Supply: 220V AC Or 9V DC
Accuracy: OIML 3 Capacity: 60 Ton
Safe Overload: 150% Structure: U-shape Beams
Certificate: CE ISO9001 Interface: RS232C / Printer / PC
Place Of Origin: Guangdong, China Warranty: 1 Year
High Light:

vehicle weight scales

,

electronic truck scale

Q235 steel 3x16m 60 ton electronic digital commercial truck scales

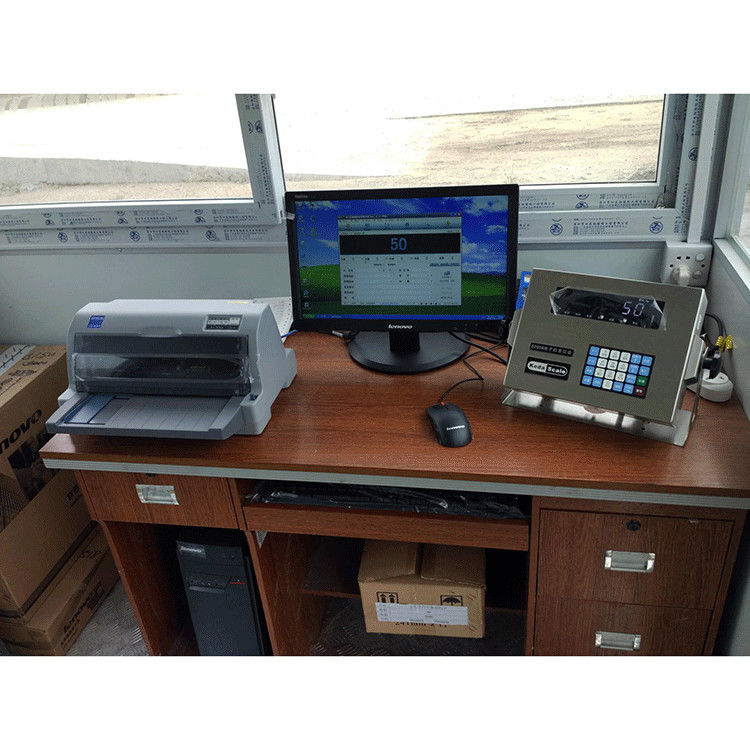

Standard configuration of KEDA SCS Truck Scale(weighbridge):

Truck scale (weighbridge) platform, high accuracy weighing load cells, weight indicator, junction box and shield cable are necessary parts of a basic truck scale (weighbridge). Printer, scoreboard and computer management system are optional so as to complete the requirements of data management and transmission on the higher level.

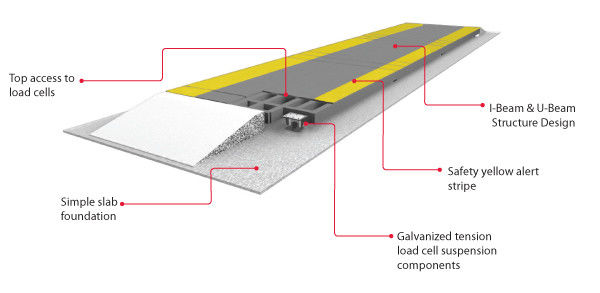

The SCS Truck scale(weighbridge) is available in both surface and pit mount designs. Key features include:

Truck Scale Technical Paramater

Type Digital truck scale
Platfrom size 3x16m
Platform material 8-20mm thickness top steel plate
Painting poxy zinc rich primer and acrylic marine paint
Max. Cap 60 ton
Accuracy 10kg, 20kg, 50kg (OIML Ⅲ)
Safe over loade 150%F.S
Power supply 110V+-10%; 220V +-10% AC or DC, 50 or 60Hz
Load cell Keli digital load cell or ZEMIC digital load cell
Weighing indicator YAOHUA or Keda indicator
Interface RS232 (or RS485), PC, printer, extra scoreboard
Working temperture -10~40ºC(indicator), -30~75ºC(load cell)
Working humidity ≤95%
Certificate CE, OIML, ISO9001:2015

Durable Commercial Truck Scales Q235 Steel 3x16m 60 Ton Electronic Digital 0

Durable Commercial Truck Scales Q235 Steel 3x16m 60 Ton Electronic Digital 1

Recommended dimension for KEDA truck scale platform

Capacity(Tons) 30 40 50 60 80 100 120 150
Division Value 5KG/10KG/20KG/50KG
Platform size:L*W(m) Recommended size Packing(container)
3*7             1x20'GP
3*9       1x20'GP
3*12     1x20'GP
3*14     1x20'GP
3*16       1x20'GP
3*18       1x20'GP
3*20         1x40'GP
3*22           1x40'GP
3*24             1x40'GP
Remark Other capacity, size and apprearance can be customized according your requirements.

Durable Commercial Truck Scales Q235 Steel 3x16m 60 Ton Electronic Digital 2

Durable Commercial Truck Scales Q235 Steel 3x16m 60 Ton Electronic Digital 3
