| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | Keda |
| Certification: | ISO |
| Model Number: | SCS-80T |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiated price |
| Packaging Details: | The platform of truck bridge is nude packed and the accessories are packed in cartons |
| Delivery Time: | 10~25 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 Set/Sets per Month |

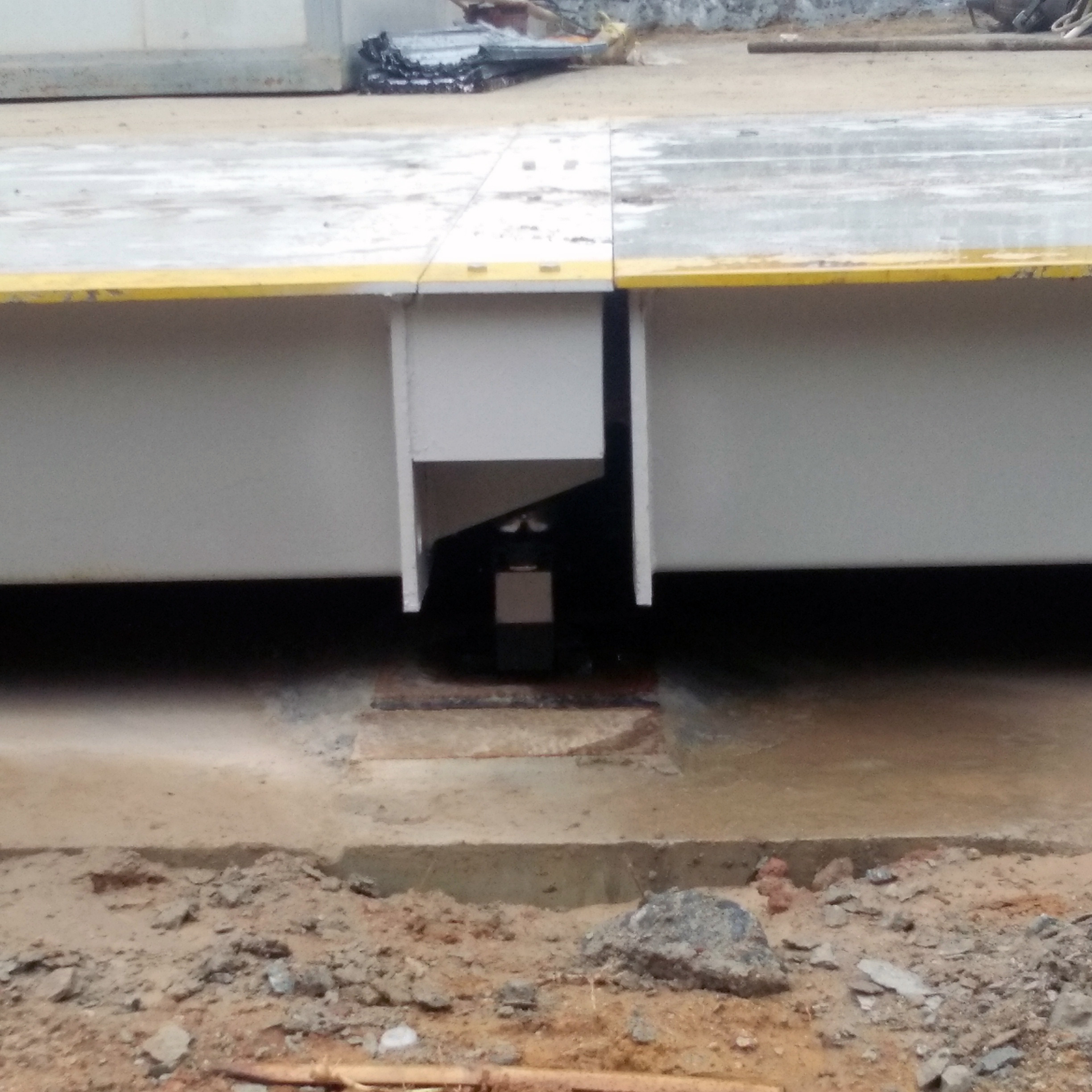

| Material: | Q235 | Structure: | U-Beams |
|---|---|---|---|
| Sensor: | Digital Load Cells | Power Supply: | 220V AC Or 9V DC |
| Safe Overload: | 150% F.S | Capacity: | 80Ton |
| Accuracy: | 20kg | Interface: | RS485 / Printer / PC |
| High Light: | truck weight scale,vehicle weight scales |
||
Truck scale width: 3m 3.2m 3.4m
Truck scale length: 6m 7m 8m 9m 10m 12m 14m 16m 18m 20m 21m 24m
Weighing scope: 1t~200t
Accuracy class: OIML III, dynamic,0.5 - 0.2%.
Inside resolution: 1000000
Converting speed: A/D, 500 Times/SEC
Weighing way: vehicle or axis measurement
Load cell: excitation voltage +10V
Remote transmission characteristics: no influence within 100 meters
Environmental temperature: load cell, -20 - +40°C;
weighing indicator: 0 - +40°C
Environmental humidity: <90% RH, without dew
Power supply: 220V(AC)+10%, 50Hz; 12V(DC), 500mA
Rated power: <20W
Display mode: 6 fluorescence display,
16 matrix liquid crystal display
Indicator keyboard: skin type 25 key keyboard
Communication interface: Rs232c can be connected to the printer or computer; Rs422 communication interface is optional.
Control output: be able to expand 3 control output
Data storage: 384 weighing record
Data protection: real-time clock, data protection in blackout
Cable length: 30m signal cable
Indicator shell: aluminum closed shell
| Item Type | Scs-30 | Scs-60 | Scs-80 | Scs-100 | Scs-120 | Scs-150 | |
| Max weighing Capability | 30 | 60 | 80 | 100 | 120 | 150 | |
| Graduation | 5 | 10 | 20 | 20 | 20 | 20 | |
| Accurancy grade | Oiml | ||||||
| Size of platform | 3*7 | √ | |||||
| 3*10 | √ | ||||||
| 3*12 | √ | √ | |||||
| 3*14 | √ | √ | √ | √ | √ | ||
| 3*16 | √ | √ | √ | √ | √ | ||
| 3*18 | √ | √ | √ | ||||
| 3*20 | |||||||
| 3.2*12 | |||||||
| 3.2*14 | √ | √ | |||||
| 3.2*16 | √ | √ | √ | √ | √ | ||
| 3.2*18 | √ | √ | √ | √ | √ | ||
| 3.2*20 | √ | √ | √ | √ | |||
| Remarks | 1.Other different size or special capacity can be customized according to customers’ needs. | ||||||
