| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | OEM |
| Certification: | ISO9001:2018 |
| Model Number: | SCS-60 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiated price |
| Packaging Details: | The platform of truck scale is nude packed and other electronic components is packed with carton box or wooden cases |
| Delivery Time: | 10~25 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 Set/Sets per Month |
| Product Name: | Weight Scale For Semi Truck | Capacity: | 60 Ton |
|---|---|---|---|
| Accuracy: | 10KG | Platform Size: | 3*16m |
| Power Supply: | 220V/50HZ | Material: | Q235 Steel |

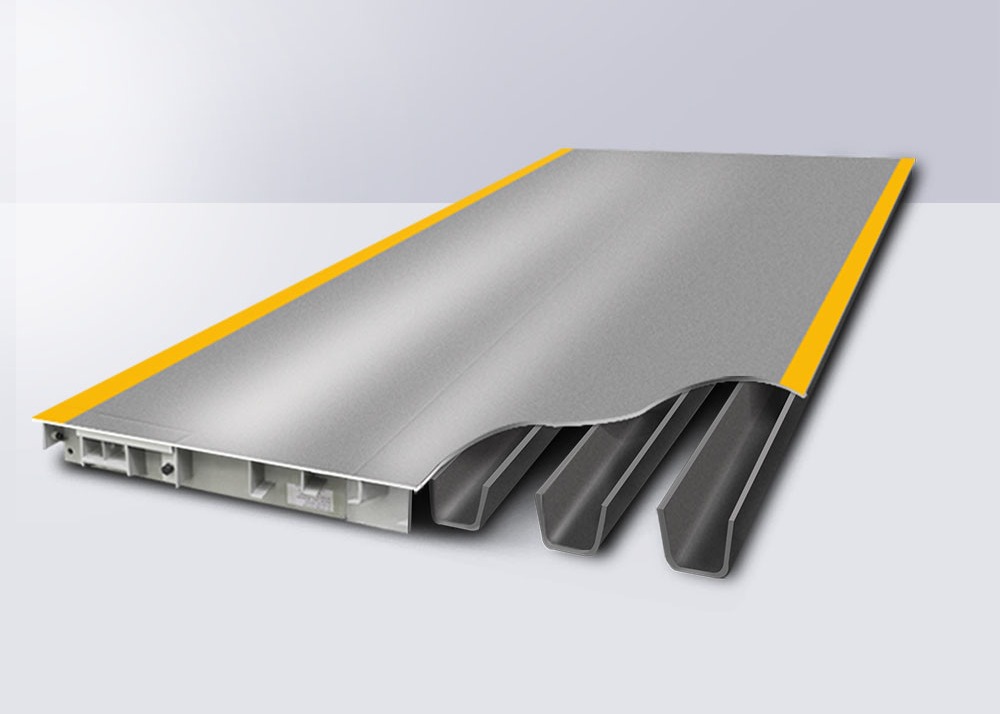

| Structure: | U Beams With 6pcs | Display: | Keda D2008H Weighing Indicator |
| High Light: | public weigh scales,vehicle weight scales |
||
With the high precision, good stability load cell and weighing indicator, SCS series electronic truck scales are pitless and high-performance weighing apparatus of main goods which are widely used in port, warehouse, factory, and freight yard. Optional accessories include Large display and PC weighing management system.
Modularized scale platform
High precision and accuracy
Easy operations
Networking, management efficiency
Grosse weight, tare, net weight display. User can set date, time, serial number, truck no. and cargo no.
1000 car No. tare weight, cargo No and group weighing record.
Different format daily report, work report, total report, can be printed separately
Disconnection protective, long-term info. Storage
Platform Size: customized also available
| Truck Scale Technical Paramater | |
| Type | Digital truck scale |
| Platfrom size | From 6m to 24m |
| Platform material | 8/10/12/14/16/20mm thickness top steel plate |
| Painting | poxy zinc rich primer and acrylic marine paint |
| Max. Cap | From 30ton to 150ton available |
| Accuracy | OIML Ⅲ |
| Safe over loade | 150%F.S |
| Power supply | 110V+-10%; 220V +-10% AC or DC, 50 or 60Hz |
| Load cell | Keli digital load cell or ZEMIC digital load cell |
| Weighing indicator | YAOHUA or Keda indicator |
| Interface | RS232 (or RS485), PC, printer, extra scoreboard |
| Working temperture | -10~40ºC(indicator), -30~75ºC(load cell) |
| Working humidity | ≤95% |
| Certificate | CE, OIML, ISO9001:2015 |
