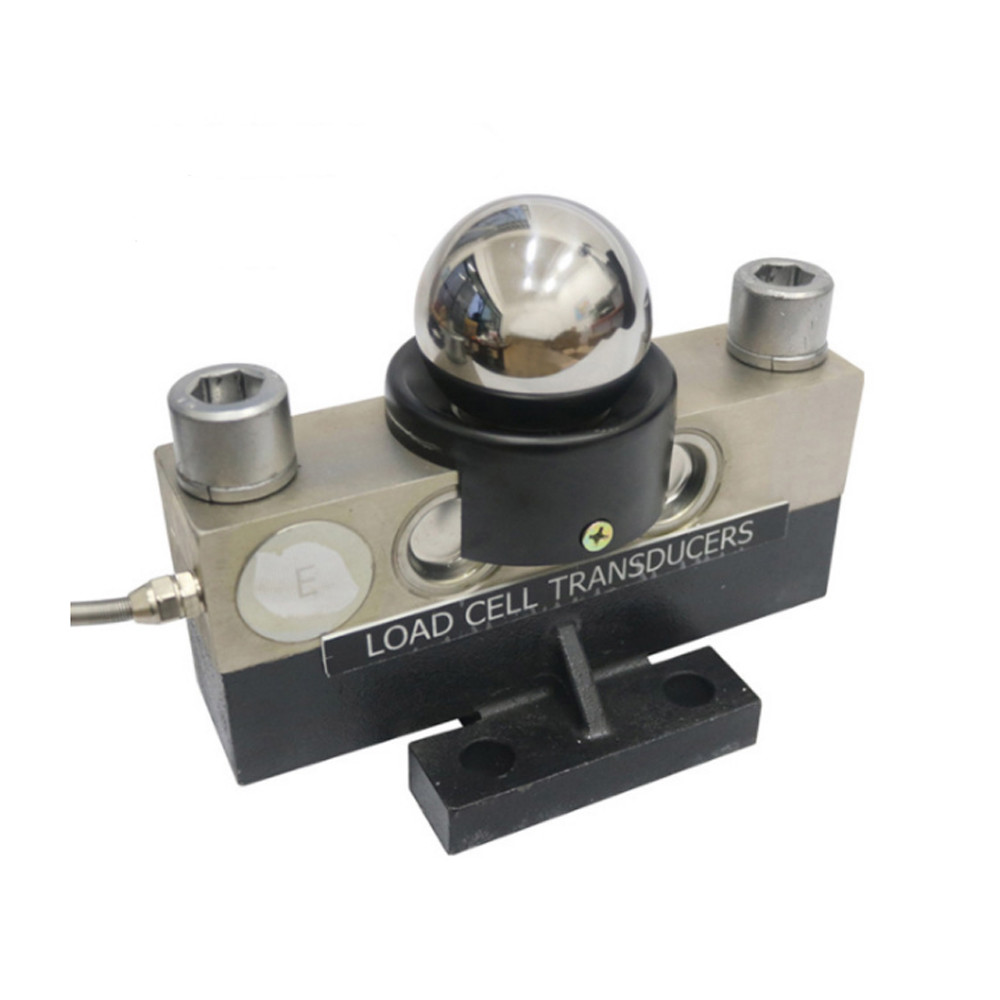

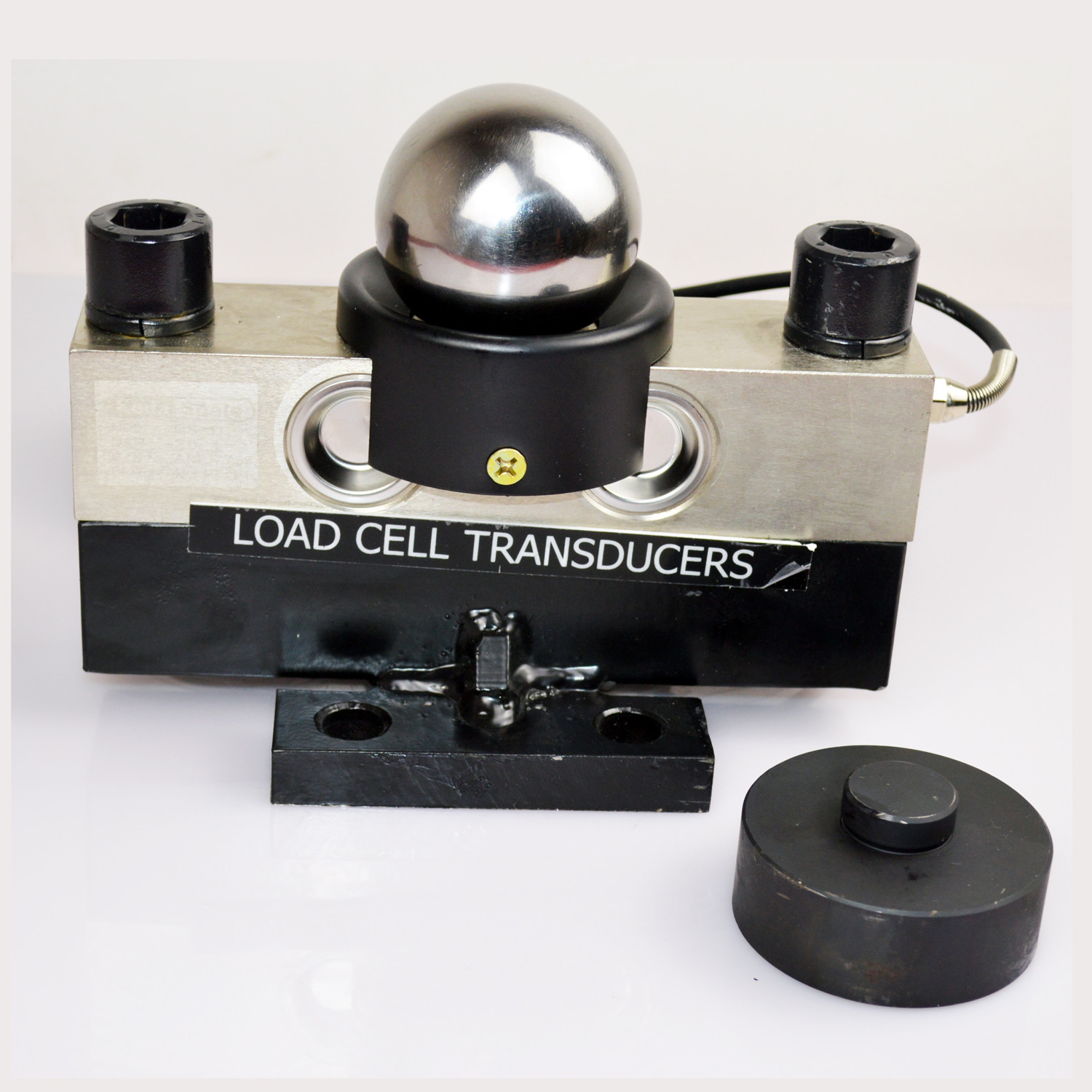

High Accuracy Weighing Scale Load Cell Keli Bridge Type Digital 30 Ton Toad Cell

Basic Information
Place of Origin: Guangdong, China
Brand Name: Keli
Certification: ISO CE OIML
Model Number: QS-30T
Usage: Force Sensor Capacity: 30 Ton
Safe Overload: 150% F.S Rated Output: 2.0±0.1%mV/V
Accuracy Class: OIML C3 Excitation Voltage: 5 ~ 10Vdc
Ultimate Overload: 150%FS Zero Balance: 1±% Of Rated Output Ω (Ohms)
High Light:

weighbridge load cell

,

weight machine load cell

High Accuracy Keli Bridge Type Digital 30 Ton Toad Cell Price



Features:

Alloy steel & stainless structure; bellows hermetically sealed by laser, nickel plated, waterproof and anti-corrosion, suitable for multiform environments; suitable for electronic platform scales, hopper scales, and other electronic weighing devies.

Technical Parameter:

A/D Module Resolution: 100000
Data Refresh Frequency: 50HZ
Communication Baud Rate: 9600BPS
Totai Error: ±0.02%F.S
Creep Error: ±0.02%F.S
Tempertature Effect Sensitivity: ±0.02%F.S/10℃
Tempertature Range: -30~+70℃
Zero Balance: ±0.1%F.S
Safe Overload: 150%F.S
Protection Class: IP68
Recommended Input Voltage: 9~12VDC
Max Input Voltage 20VDC
Max Signal Transmission Distance: 1200m
