| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | Keli |
| Certification: | ISO CE OIML |
| Model Number: | QS-30T |
| Minimum Order Quantity: | 10PCS |
| Price: | Negotiated price |
| Packaging Details: | Carbon box with foam |
| Delivery Time: | 5~15days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000 Set/Sets per Month |

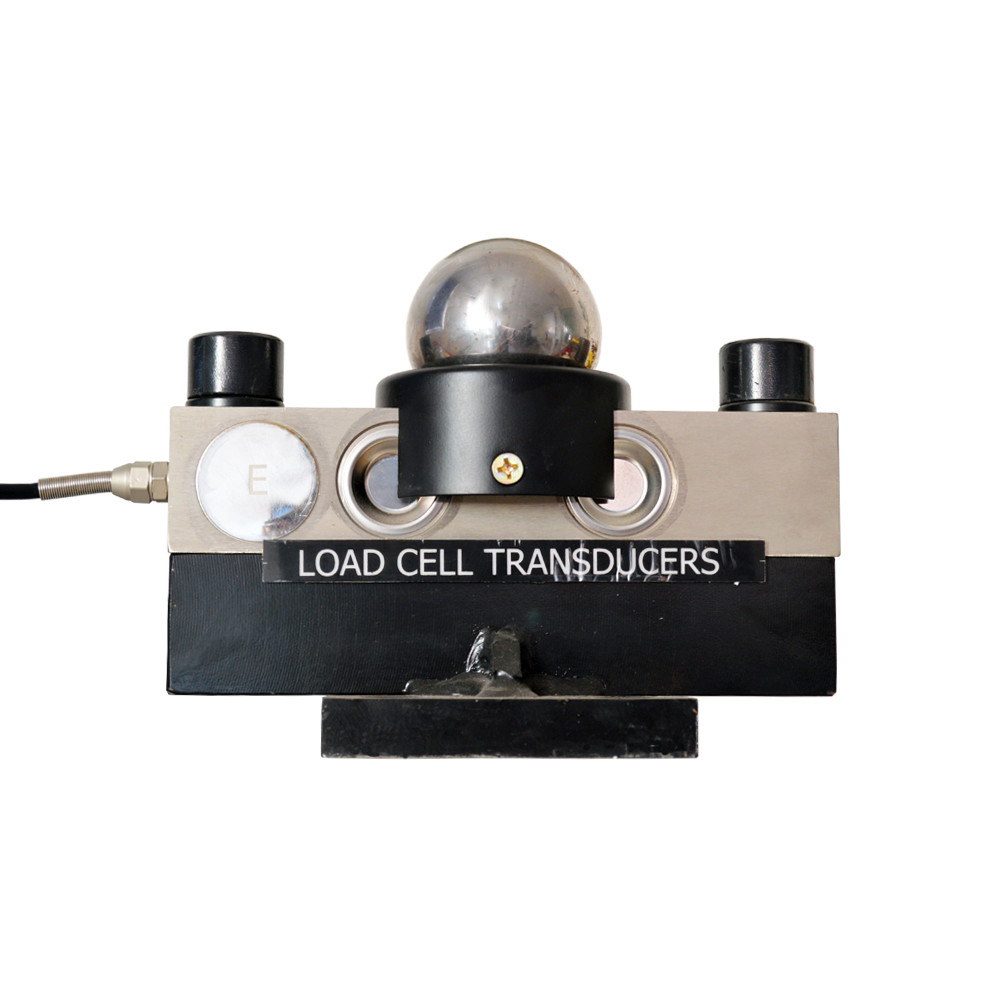

| Usage: | Truck Scale Load Cells | Safe Overload: | 150% F.S |
|---|---|---|---|
| Accuracy Class: | OIML C3 | Ultimate Overload: | 300%FS |
| High Light: | weighbridge load cell,shear beam load cell |
||
Features and Application:
Technical Parameter:
| Rated capacities(Emax) | 5t, 10t, 15t, 20t, 25t, 30t, 40t, 50t |
| Accuracy Class | C3 |
| Sensitivity | (2.0±0.002)mV/V |
| TCO | ±0.02%F.S/10°C |
| TC SPAN | ±0.02%F.S/10°C |
| Creep error(30min) | ±0.02%F.S |
| Working voltage, recommend | 10V~12V(AC or DC) |
| Zero balance | ±1% F.S |
| Input impedance | (750±10)Ω |
| Output impedance | (703±2)Ω |
| Insulation impedance | ≥5000MΩ |
| Safe overload | 150%F.S |
| Ultimate overload | 300% F.S |
| Service Temp Range | (-30~+70)°C |
| Material | Alloy Steel & Stainless Steel |
| Protection class | IP67 & IP68 |
| Wiring method | Red: Exc+, Black: Exc-, Green: Sig+, White: Sig- |
