| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | KEDA |
| Certification: | ISO CE |
| Model Number: | SCS-40T |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiated price |
| Packaging Details: | The platform of weighbridge is nude packed and the accessories are packed in carton or wooden box |
| Delivery Time: | 10~25 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 Set/Sets per Month |
| Model: | SCS-40T | Material: | 10~14mm Thichness Q235 Steel Plate |
|---|---|---|---|
| Structure: | U Beam Girders With 6pcs And 6mm Thickness | Capacity: | 40 Ton |
| Size: | Custom | Display: | LED |
| Load Cells: | Digital Load Cells | Warranty: | 12 Months |
| High Light: | Heavy Truck Weigh Bridge 40 Ton,U Beam Structure Truck Weighbridge,3*16 Meter Truck Weighbridge |
||

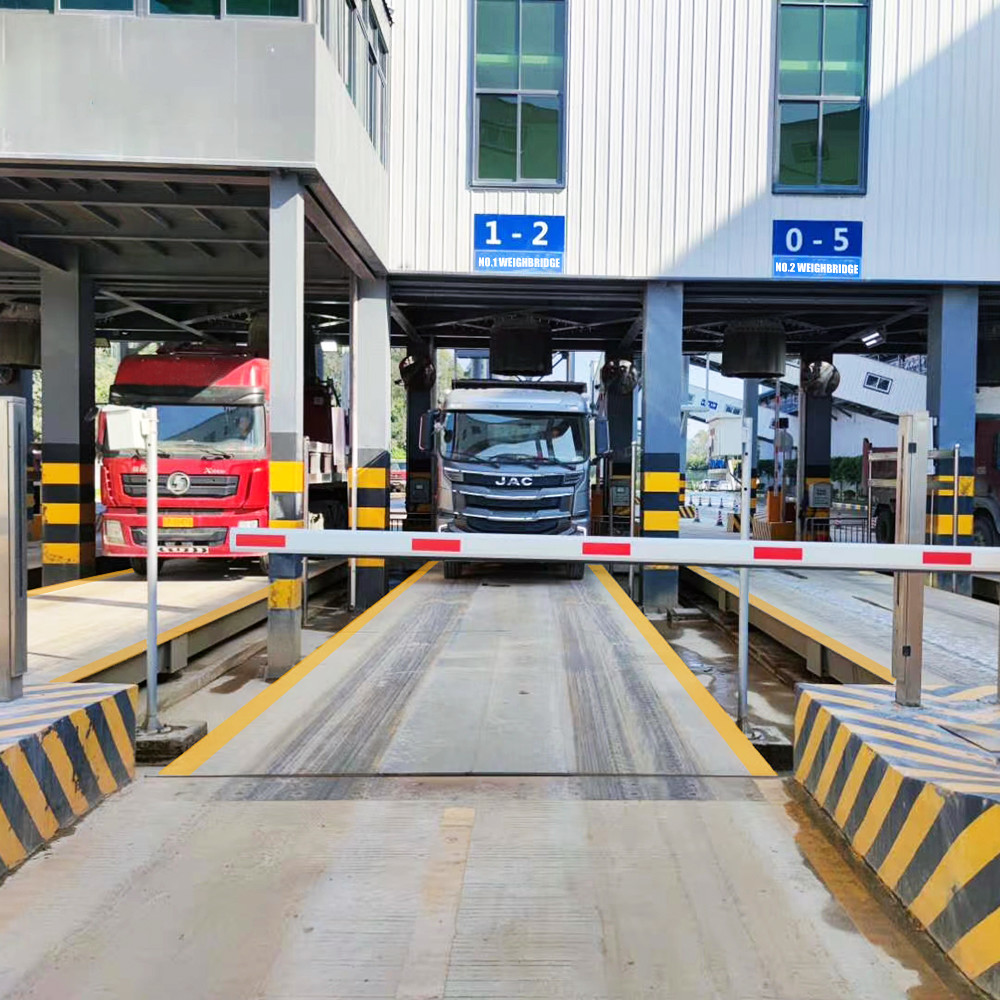

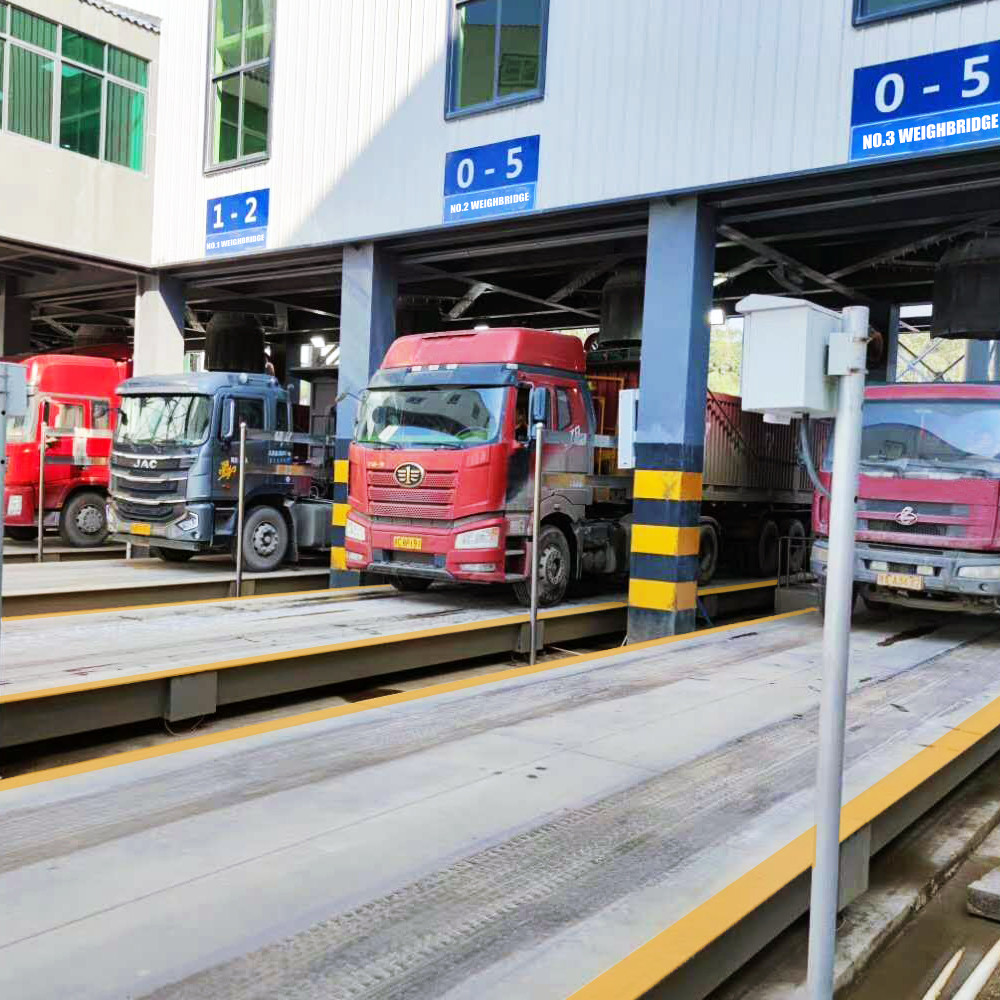

3*16 Meter U Beam Structure Heavy Truck Weigh Bridge 40 Ton
Keda Digital Eletronic Truck scale Introduce
The export split truck scale adopts the all-electronic modular vehicle weighing system designed by the world's advanced weighing sensors and weighing indicators and various external equipment. The whole truck scale system has strong environmental adaptability. After the configuration is strengthened, it can be fully intelligent and unattended, and the metering performance is superior, the accuracy is high, the long-term stability is good, and the installation, commissioning and maintenance are convenient. Widely used in foreign metallurgy, mining, machinery, chemical, port and road cargo stations and other industries.
Truck scale Main Features
Modularization, standardization, serialization platform, multi-unit combination
Automatic reset force transmission system
Can be matched with various indicators
Digital display gross weight, net weight, tare
Dynamic, under load and overload, etc state display
Digital filtering, clear tare automatically
Subtract tare and clear tare automatically
Keyboard set/calibration
Vehicle No., tare storage, subitem accumulation, total accumulation
Data output/print automatically
| Name | Weighbridge |
| Structure | U-beam |
| Load capacity | 30T,40T,50T,60T,80T,100T,120T,150T,200T |
| Platform Dimension | (L*W): 3 x10/12/14/15/18/20/22/24m,allowed OEM |
| Installation height | about 500mm (scale body and load cell) |
| Accuracy Grade | OIML III |
| Platform Material | 10mm Q235 Carbon Structural Steel OR 8mm 610L high-strength steel |
| U-beam Material | 6mm 610L high-strength steel |
| Division value | 10kg/20kg/50kg |
| Load sensor | ZEMIC ,KELI |
| Load sensor Qty. | Based on OEM size |
| Indicator | Ditigital type, YAOHUA |
| Painting Processing | Primer paint*2, coat paint*2 |
| Power Supply: | Rechargeable Battery |
| Available color | grey, blue |
| Packing | nuke packing with Felt cushion covers all corners |
| MOQ | 1pcs |
| Delivery Time | 15~25 work days |
| Payment | T/T or LC at sight |
