| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | KEDA |
| Certification: | ISO9001:2018 |
| Model Number: | PF-5000 |
| Minimum Order Quantity: | 5 sets |
| Price: | Negotiated price |
| Packaging Details: | Carbon box with foam |
| Delivery Time: | 5~15days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 Set/Sets per Month |
| Power Supply: | AC/DC | Display Type: | LCD+Back Light |
|---|---|---|---|
| Rated Load: | 5 Tons | Type: | Floor Scale |
| Accuracy: | 0.5/1/2/3/5kg | Material: | Carbon Steel |
| Color: | Blue | Platform Size: | 2x2m |
| High Light: | industrial floor scales,digital floor scale |
||

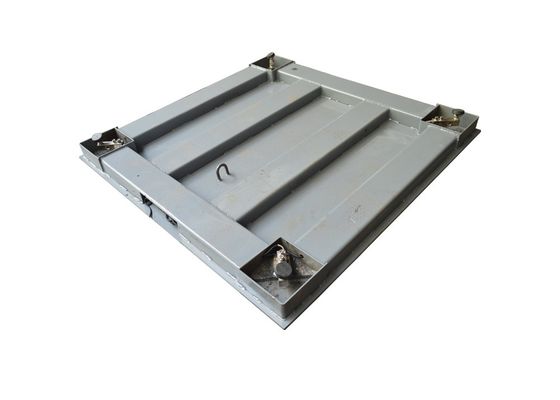

◆ Powder coated mild steel fabrication, U beams by modules
◆ 5mm checked top plate
◆ With 4 pcs shear beam load cells (ZEMIC H8C or KELI SQB) with OIML approved
Features:
A/D conversion with readability 1/30000
Use inner code to replace weight observing and analysis tolerance
Software to strength anti-vibration ability
Zero-tracking, Zero range setup (auto/manual)
Setup digital filter intensity, range and stable time
Counting function with unit data save protection in case of power off
Alarm for low battery and auto power off when low battery
Optional function:
KG/LB switch function
Two fixed- value outputs function with TTL output
| Type | Industrial Floor Weighing Scales |
| Model number | floor scale |
| Capacity/accuracy | 1000kg/2000kg/3000kg/5000kg |
| Keyboard | 20keys or 24keys |
| Display | LED/LCD |
| Indicator | Carbon steel |
| Pan | 0.8*0.8m 1*1m 1.2*1.2m 1.5*1.5m 2.0*2.0m |
| Battery | 6V/4AV rechargeable battery inside |
| Power supply | AC/DC |
| Tare Range | 100% of full scale capacity |
| Warranty | 12months |
| OEM | accept |
| Function | 1. Auto Zero Point tracking 2. Tare Function |
Dimension (m) | Capacity | ||||
1t | 2t | 3t | 5t | 10t | |
0.8 x 0.8 | * | * | * | ||
1 x 1 | * | * | * | ||
1 x 1.2 | * | * | * | ||
1.2 x 1.2 | * | * | * | ||
1.2 x 1.5 | * | * | * | ||
1.5 x 1.5 | * | * | * | * | |
1.5 x 2 | * | * | * | * | |
2 x 2 | * | * | * | * | * |
Division e=(kg) | 0.5kg | 1kg | 1kg | 2kg | 5kg |
