| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | YAOHUA |
| Certification: | ISO CE OIML |
| Model Number: | XK3190 A9 |
| Minimum Order Quantity: | 10PCS |
| Price: | Negotiated price |
| Packaging Details: | Carbon box with foam |
| Delivery Time: | 5~15days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000 Set/Sets per Month |
| Product Name: | Truck Scale Digital Weight Indicator | Display: | LED |
|---|---|---|---|
| Accuracy Class: | OIML C3 | Power: | 220V AC Or 9V DC |
| Use: | Weighing Scale | Type: | Analog Type |
| Material: | Plastic Shell | Operating Temperature: | -10~40 Degree Centigrade |
| High Light: | weighbridge indicator,digital weight controller |
||

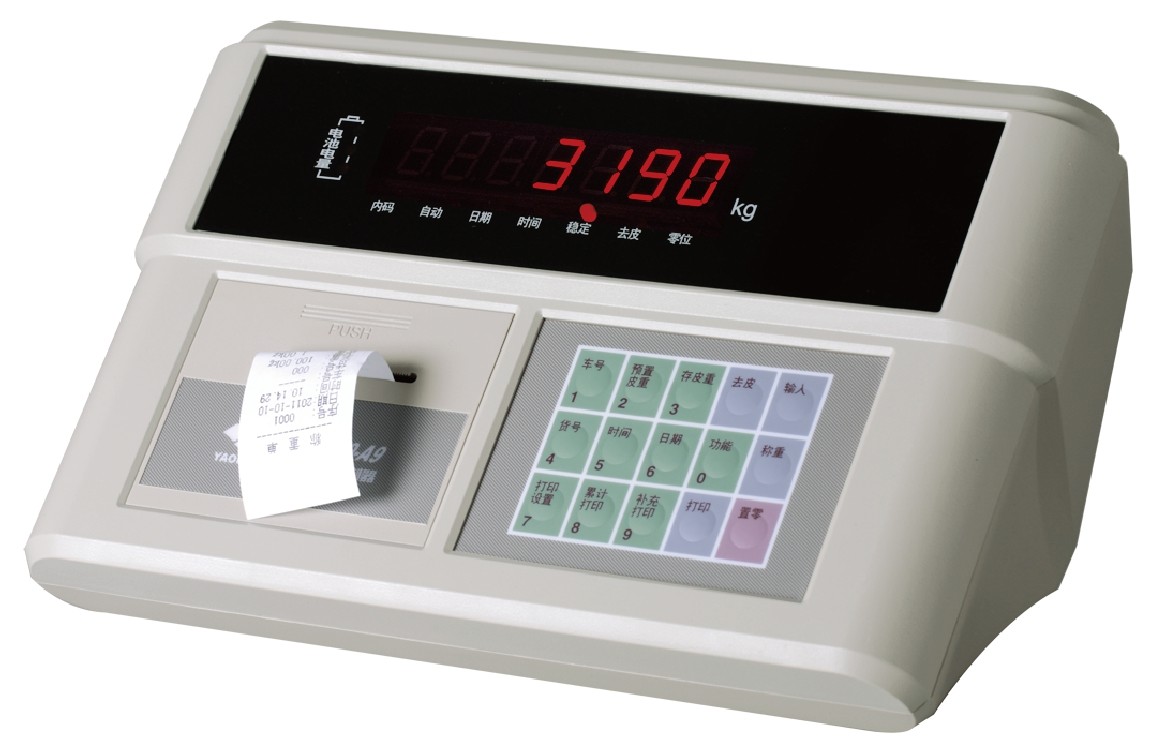

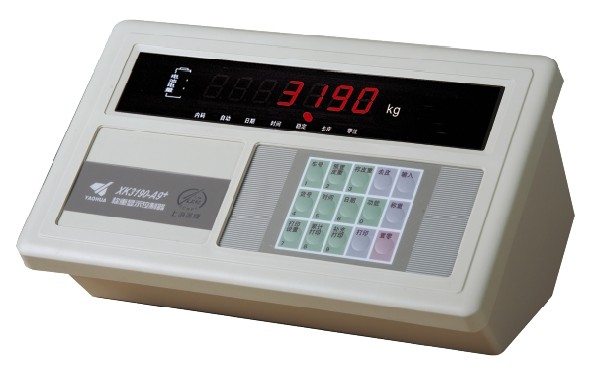

Yaohua XK3190 A9 Truck Scale Indicator / Weighbridge Indicator Price
∑-Δ high precision A/D conversion method, able to process input signal from -16mV to 18mV
Good consistency, no need to re-calibrate a scale if change the former indicator, high precision
DC power socket with anti-connect and anti-short circuit protection;
With strong anti-disturbance function
AC/DC power supply, standard chargeable battery
7-bits 0.8 inch LED display, 3-level battery indications
Able to setup zero-tracking range, zero(auto/manual) range
With 2-point calibration correction function, 2 compensation calibration methods
Able to save 1001 weighing records, 1000 truck records consisting of truck ID and corresponding tare weight, 201 records of goods
Able to print across and upright weighing bill
Able to print different statistical reports
Standard RS232 communication interface(RS422/RS485 optional)
Standard scoreboard interface with current loop
Standard parallel print interface
Able to connect assigned thermal printer
XK3168 with built in printer
Technical parameter
A/D conversion method: ∑-Δ
Input signal range:-16mV~18mV
A/D conversion speed: 10times/sec.
A/D conversion code: 1 million code
Load cell excitation: DC 5V
Max. connection number of load cell: 8 at 350 ohm/16 at 700 ohm
Load cell connection mode: 6 wire, auto compensation for long distance
Division: 1/2/5/10/20/50/100 optional
Clock: real clock without effect when power off
Transimission: current loop/RS 232 signal
Baud rate:600
Transimission distance:≤30 meters
Serial communication:interface
Transimission method:RS232/RS422(optional)/RS485(optional)
Baund rate:600/1200/2400/4800/9600(optional)
Transmission distance:RS232:≤30 meters;RS422/RS485:≤1200 meters
Standard parallel output interface
Built-in micro-printer
Data storage:1000 truck records consisting of truck ID and corresponding tare
weight 201cargo ID.1001 weighting records
Power supply:AC 220V(-15%-+10%);50Hz(-2%-+2%)
DC 6V/10Ah External battery rechargeable
