Product Name: | Floor Weight Scale | Platform Size: | 1*1m |
---|---|---|---|
Rated Load: | 3000kg | Accuracy: | 2kg |
Display: | 20mm LED/25mm LCD With Backlight | Power: | 220V |
Sensor: | Digital | Material: | Steel |
Warranty: | 12 Months | Color: | Customized |
Function: | Auto-off | Unit: | G,lb,kg/lb,kg |
High Light: | industrial floor scales,digital floor scale |
LED display 3000kg platform Electronic Floor Scales with RS232
Various floor scale, such as frame or frameless type, ultra low mobile type,U-shape, livestock type with capacity from 1t to 10t,protection grade from IP65 to IP68, and multi power supply mode are available for your different kinds of weighing requirements.
Optional size and capacity:
Model | Max. Cap | Accuracy | Size | Optional |
PF-1000 | 1,000kg/2,200lb | 0.5/1kg | 1.0x1.0m, 1.2x1.2m, 1.2x1.5m, 1.5x1.5m |
1. Color: gray and blue 2. Aptional the indicaor with printer 3. Custom size and logo 4. MOQ: 1 set |
PF-2000 | 2,000kg/4,400lb | 2kg | 1.2x1.2m, 1.2x1.5m, 1.5x1.5m, 2.0x2.0m | |
PF-3000 | 3,000kg/6,600lb | 2kg | 1.2x1.2m, 1.2x1.5m, 1.5x1.5m, 2.0x2.0m | |
PF-5000 | 5,000kg/11,000lb | 5kg | 1.2x1.2m, 1.2x1.5m, 1.5x1.5m, 2.0x2.0m, 2.5x2.5m | |
PF-10000 | 100,000kg/22,000lb | 10kg | 1.2x1.2m, 1.2x1.5m, 1.5x1.5m, 2.0x2.0m, 2.5x2.5m |
Product attributes:
Product name | Electronic digital platofrm scale |
Platform material | Steel Q235 |
Paint | Epoxy zinc rich primer and acrylic marine paint |
Color | Blue or gary |
Certificate | CHina Metrology Certification |
Quality control | ISO9001:2015 |
Accuracy class | OIMLIII (International standards) |
Safe overload | 150% F.S |
Load cells protection | IP67 |
Work temperature | -10~40℃(indicator), -30~55℃(load cell) |
Supply Voltage | 220V AC or 6V DC |
Main Function |

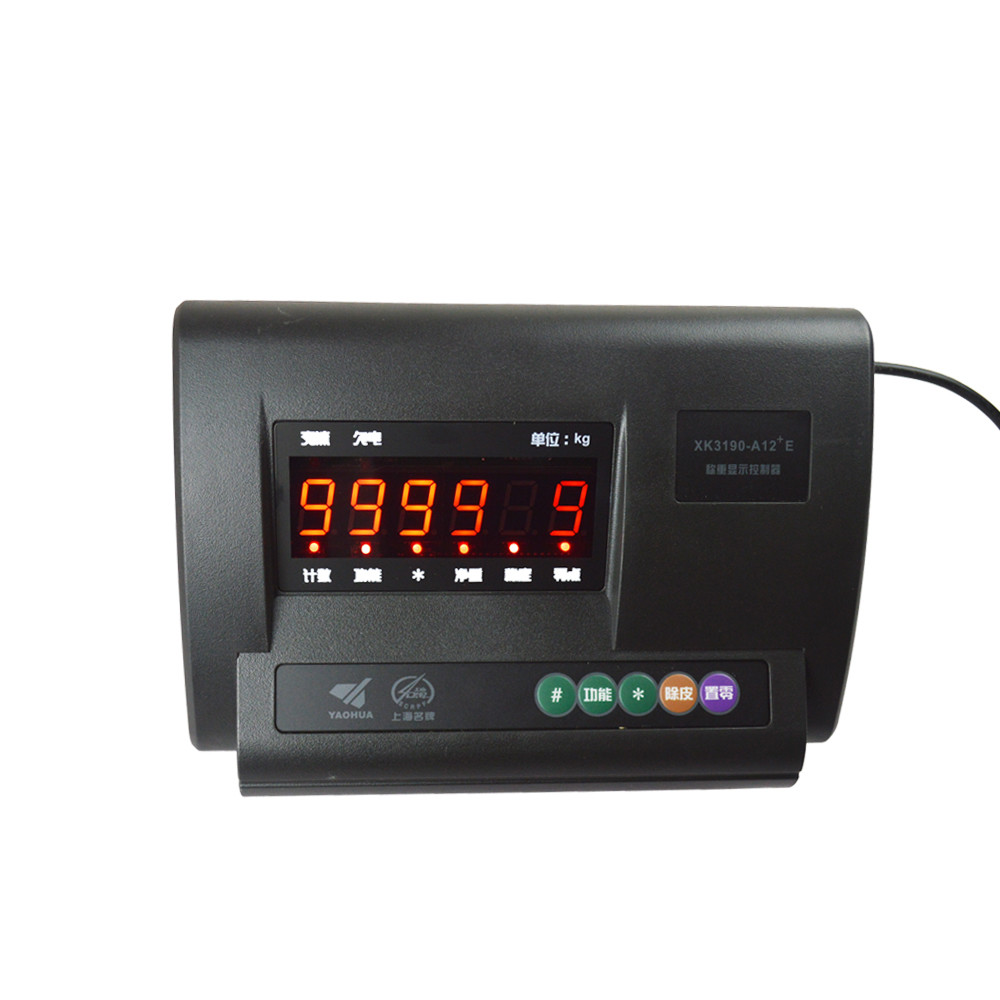

1. LED display
2. Peak hold function
3. External serial port printing function (with Rs232 interface)
4. Unit switch (Kg/lb/t)
5. Manual and automatic accumulation
6. Preset tare
7. Upper and lower limit weighing alarm
Level 4 electric quantity indication, under voltage alarm and automatic shutdown function
|
