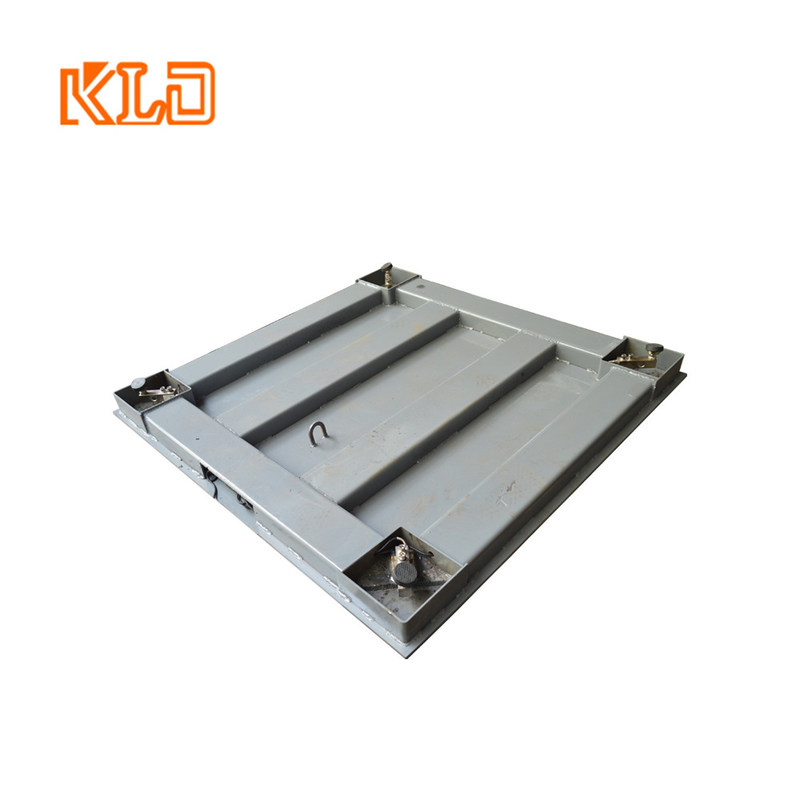

Electronic Floor Weighing Scales LED Display 3000kg Platform With RS232

Basic Information
Place of Origin: Guangdong, China
Brand Name: KEDA
Certification: ISO
Model Number: PF-3000
Minimum Order Quantity: 5 sets
Price: Negotiate Price
Packaging Details: Carbon box
Delivery Time: 5~10 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 Set/Sets per Month
Product Name: Floor Scale Rated Load: 3000kg
Accuracy: 2kg Unit: G,lb,kg/lb,kg
Display: 20mm LED/25mm LCD With Backlight Power: 220V
Function: Auto-off Warranty: 12 Months
High Light:

industrial floor scales

,

digital floor scale

LED Display 3000kg Platform Electronic Floor Scales with RS232



Various floor scale, such as frame or frameless type, ultra low mobile type,U-shape, livestock type with capacity from 1t to 10t,protection grade from IP65 to IP68, and multi power supply mode are available for your different kinds of weighing requirements.

Floor Scale Specification

Product Name
Digital Floor Scale
Platform Material
Steel Q235
Paint
Epoxy zinc rich primer and acrylic marine paint
Color
Blue or gray
Certificate
China Metrology Certification
Quality Control
ISO9001:2015
Accuracy Class
OIML III (International standards)
Safe Overload
150%F.S
Load cells Protection Class
≤95%
Working Temperature
-10~40℃(indicator), -30~55℃(load cell)
Supply Voltage
220V AC or 6V DC
Main Function
1. LED display
2. Peak hold function
3. External serial port printing function (with Rs232 interface)
4. Unit switch (Kg/lb/t)
5. Manual and automatic accumulation
6. Preset tare
7. Upper and lower limit weighing alarm
Level 4 electric quantity indication, under voltage alarm and automatic shutdown function

Optional size and capacity:

Model Max. Cap Accuracy Size Optional
PF-1000 1,000kg/2,200lb 0.5/1kg 1.0x1.0m, 1.2x1.2m, 1.2x1.5m, 1.5x1.5m

1. Color: gray and blue

2. Aptional the indicaor with printer

3. Custom size and logo

4. MOQ: 1 set

PF-2000 2,000kg/4,400lb 2kg 1.2x1.2m, 1.2x1.5m, 1.5x1.5m, 2.0x2.0m
PF-3000 3,000kg/6,600lb 2kg 1.2x1.2m, 1.2x1.5m, 1.5x1.5m, 2.0x2.0m
PF-5000 5,000kg/11,000lb 5kg 1.2x1.2m, 1.2x1.5m, 1.5x1.5m, 2.0x2.0m, 2.5x2.5m
PF-10000 100,000kg/22,000lb 10kg 1.2x1.2m, 1.2x1.5m, 1.5x1.5m, 2.0x2.0m, 2.5x2.5m
