LED Display 4x4 Electronic Warehouse Pallet Scales , Industrial Floor Scales

Basic Information
Place of Origin: Guangdong, China
Brand Name: Keda
Certification: ISO9001:2018 CE
Model Number: PF
Minimum Order Quantity: 5 sets
Price: Negotiated price
Packaging Details: Carbon box with foam
Delivery Time: 5~15days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 Set/Sets per Month
Power Supply: AC/DC Display Type: LCD+Back Light
Rated Load: 1/2/3/5/10Ton Type: Floor Scale
Color: Grey Packing: Carton
Battery: Rechargeable 6V/4AH Stardard: ISO9001:2018
High Light:

industrial floor scales

,

digital floor scale

LED Display 4x4 Electronic Floor Weighing Scale for Warehouse

Description:

  1. Chequer plate platform.
  2. with special steel plate to advoid mouse enter the U beams to bite cable.
  3. Mild steel and power coated

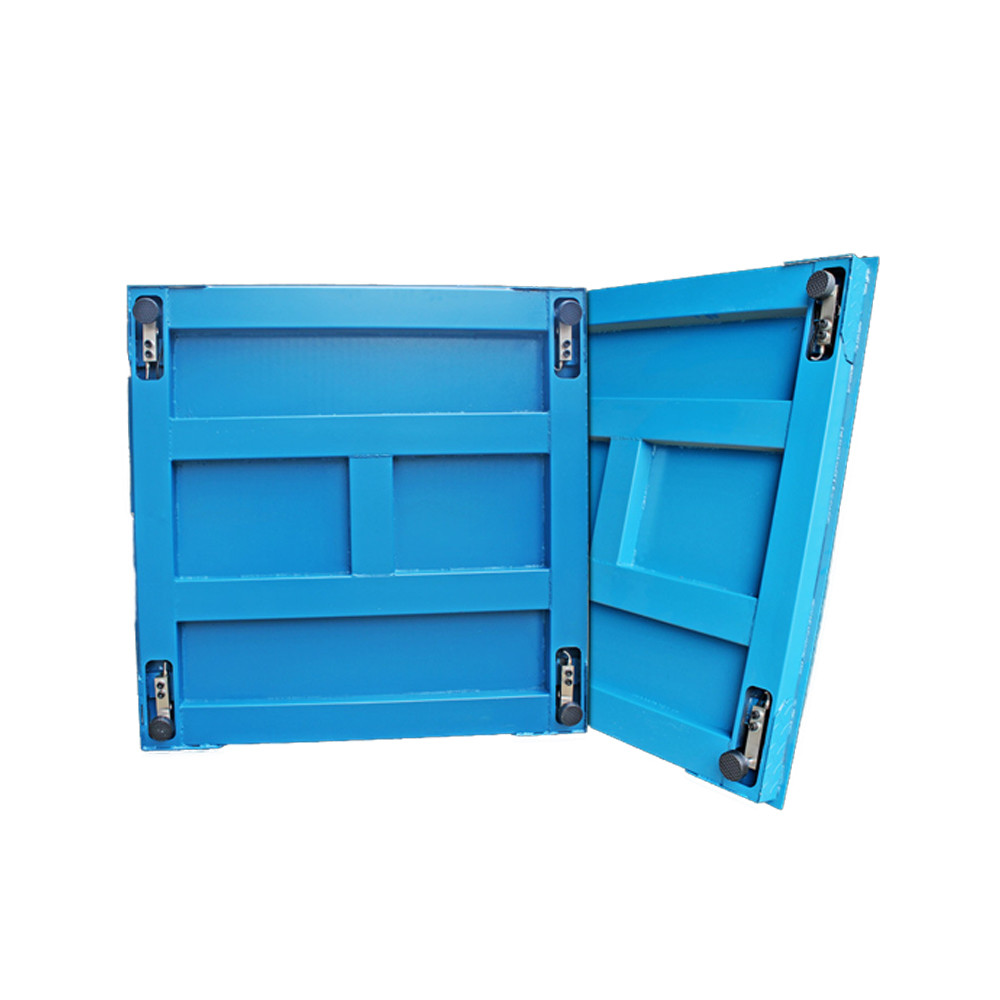

  4. 4 load cells construction
  5. Easy to install and transit
  6. 5m cable supplied, metal-conduit cable and shielded cable optional
  7. With rechargable acid-lead battery.

Floor Scales Specification:

Accessories parameter
Indicator
- A/D conversion with readability 1/30000
- Use inner code to replace weight observing and analysis tolerance
- Software to strength anti-vibration ability
- Zero-tracking, Zero range setup (auto/manual)
- Setup digital filter intensity, range and stable time
- Counting function with unit data save protection in case of power off
- Alarm for low battery and auto power off when low battery
- Optional function:
1. KG/LB switch function
2. Animal scale function (A12, A12S only)
3. Two fixed- value outputs function with TTL output
Load cell
- Rated load: 1, 2t Temp range: - 30~ + 70°C
- A/D module resolution: 20000 yard Zero balance: -0.1%~ + 0.1% F.S
Refresh rate for date: 50Hz Protection Class: IP68
Communication: baud rate: 9600BPS Rated input Volt: 9~12V DC
Combined error: -0.02% ~ +0.02%F.S Max input Volt: 20V DC
Creep error (30min): -0.02% ~ +0.02%FS Safety overload: 150%F.S
Temp effect sensitivity: -0.02% ~ +0.02%F.S/ 10 °C Max signal transmission distance: 1200m

General Dimision:

Dimension
Capability
Specification
0.8*0.8m
Up to 10T
A) Single deck
B) Carbon steel structure, power-coated
C) U-shape beams by moulds
D) With load cells
E) Indicator optional
F) With junction box
1.0*1.0m
1.2*1.2m
1.2*1.5m
1.5*1.5m
1.5*2.0m
2.0*2.0m
2.0*3.0m
