| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | Keda |
| Certification: | ISO9001:2018 CE |
| Model Number: | PF |
| Minimum Order Quantity: | 5 sets |
| Price: | Negotiated price |
| Packaging Details: | Carbon box with foam |
| Delivery Time: | 5~15days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 Set/Sets per Month |

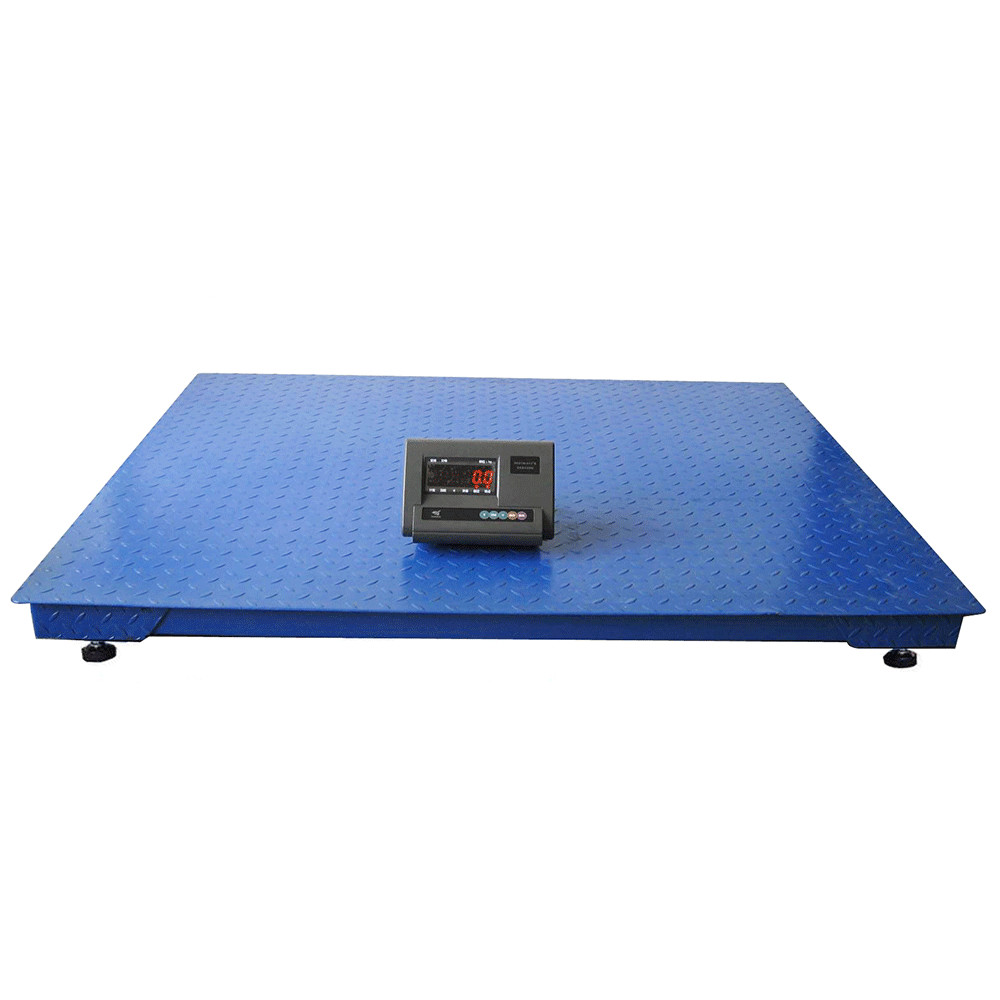

| Product Name: | Digital Floor Scale | Display Type: | LED |
|---|---|---|---|
| Material: | Carbon Steel | Rated Load: | 1/2/3/5Ton |
| Color: | Grey | Packing: | Carton |
| Battery: | Rechargeable 6V/4AH | Stardard: | ISO9001:2018 |
| High Light: | digital floor scale,pallet floor scale |
||
| Accessories parameter | |||||

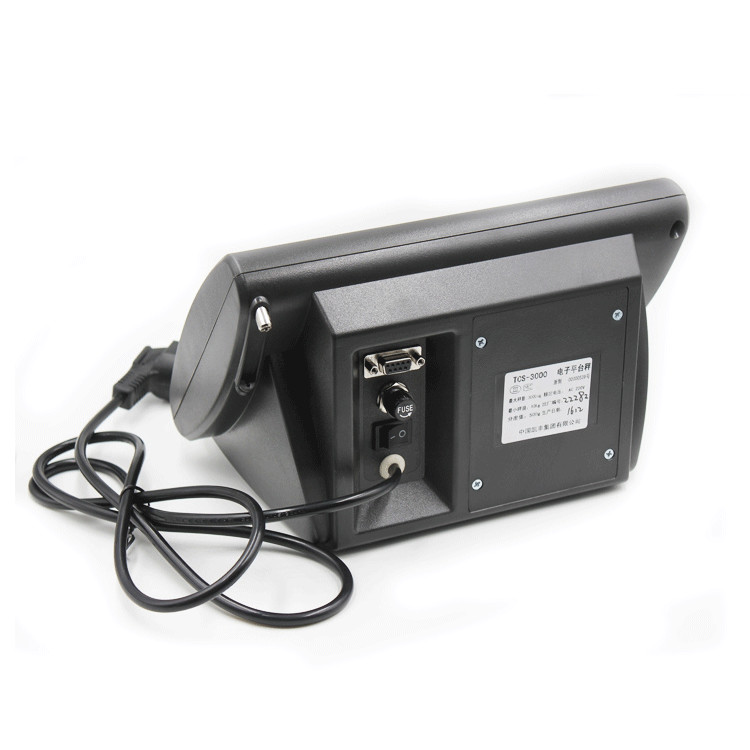

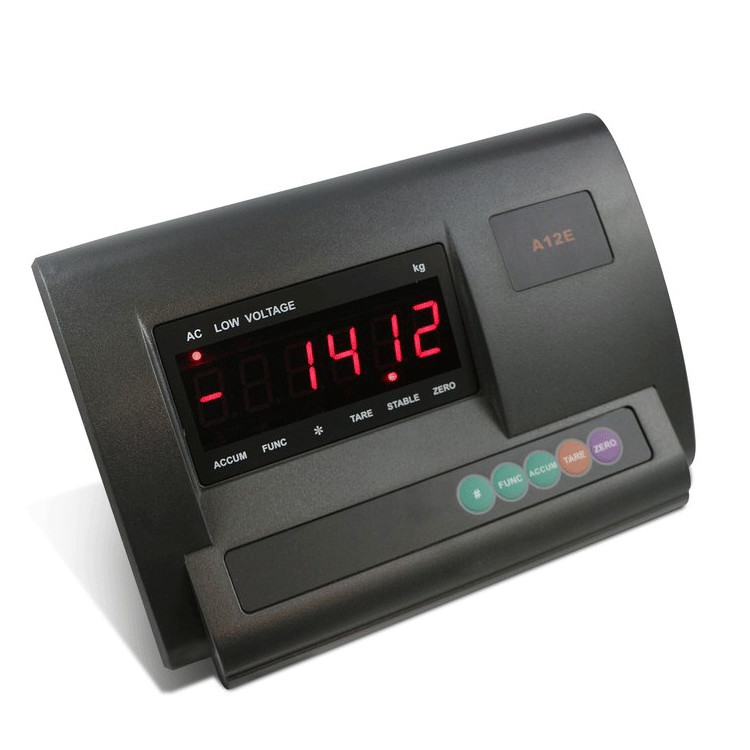

| Indicator: | |||||
| - A/D conversion with readability 1/30000 | |||||
| - Use inner code to replace weight observing and analysis tolerance | |||||
| - Software to strength anti-vibration ability | |||||
| - Zero-tracking, Zero range setup (auto/manual) | |||||
| - Setup digital filter intensity, range and stable time | |||||
| - Counting function with unit data save protection in case of power off | |||||
| - Alarm for low battery and auto power off when low battery | |||||
| - Optional function: | |||||
| 1. KG/LB switch function | |||||
| 2. Animal scale function (A12, A12S only) | |||||
| 3. Two fixed- value outputs function with TTL output | |||||
| Load cell | |||||
| - Rated load: 1, 2t | Temp range: - 30~ + 70°C | ||||
| - A/D module resolution: 20000 yard | Zero balance: -0.1%~ + 0.1% F.S | ||||
| Refresh rate for date: 50Hz | Protection Class: IP68 | ||||
| Communication: baud rate: 9600BPS | Rated input Volt: 9~12V DC | ||||
| Combined error: -0.02% ~ +0.02%F.S | Max input Volt: 20V DC | ||||
| Creep error (30min): -0.02% ~ +0.02%FS | Safety overload: 150%F.S | ||||
| Temp effect sensitivity: -0.02% ~ +0.02%F.S/ 10 °C | Max signal transmission distance: 1200m | ||||
| Model | Max. Cap | Accuracy | Size | Optional |
| PF-1000 | 1,000kg/2,200lb | 1kg | 1.0x1.0m, 1.2x1.2m, 1.2x1.5m, 1.5x1.5m |
1. Color: gray and blue 2. Aptional the indicaor with printer 3. Custom size and logo 4. MOQ: 1 set |
| PF-2000 | 2,000kg/4,400lb | 2kg | 1.2x1.2m, 1.2x1.5m, 1.5x1.5m, 2.0x2.0m | |
| PF-3000 | 3,000kg/6,600lb | 2kg | 1.2x1.2m, 1.2x1.5m, 1.5x1.5m, 2.0x2.0m | |
| PF-5000 | 5,000kg/11,000lb | 5kg | 1.2x1.2m, 1.2x1.5m, 1.5x1.5m, 2.0x2.0m, 2.5x2.5m | |
| PF-10000 | 100,000kg/22,000lb | 10kg | 1.2x1.2m, 1.2x1.5m, 1.5x1.5m, 2.0x2.0m, 2.5x2.5m |
