| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | Keda |
| Certification: | ISO9001:2018 CE |
| Model Number: | PF |
| Minimum Order Quantity: | 5 sets |
| Price: | Negotiated price |
| Packaging Details: | Carbon box with foam |
| Delivery Time: | 5~15days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 Set/Sets per Month |
| Power Supply: | AC/DC | Display Type: | LCD+Back Light |
|---|---|---|---|
| Rated Load: | 1/2/3/5/10Ton | Stardard: | OIMl Ⅲ |
| Type: | Floor Scale | Color: | Blue |
| Battery: | Rechargeable 6V/4AH | Packing: | Carton Box |
| High Light: | industrial floor scales,pallet floor scale |
||

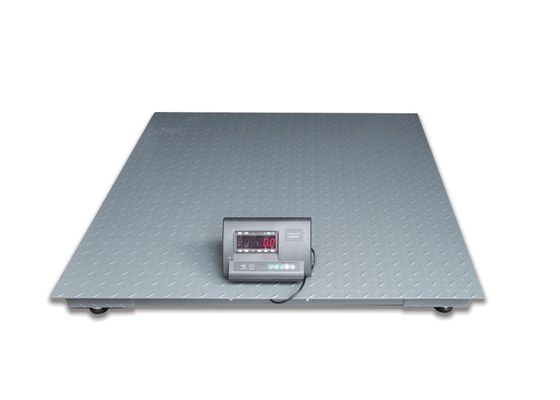

Safely chequered plate to avoid cargo slipping from scales
Excellent Powder coated finish painting
Adjustable swivel leveling legs
Scales calibrated and 4pcs load cell installed before shipment.
Resolution m=3000
Overload protection
Accuracy:0.5/1kg
| Accessories parameter | |||||
| Indicator | |||||
| - A/D conversion with readability 1/30000 | |||||
| - Use inner code to replace weight observing and analysis tolerance | |||||
| - Software to strength anti-vibration ability | |||||
| - Zero-tracking, Zero range setup (auto/manual) | |||||
| - Setup digital filter intensity, range and stable time | |||||
| - Counting function with unit data save protection in case of power off | |||||
| - Alarm for low battery and auto power off when low battery | |||||
| - Optional function: | |||||
| 1. KG/LB switch function | |||||
| 2. Animal scale function (A12, A12S only) | |||||
| 3. Two fixed- value outputs function with TTL output | |||||
| Load cell | |||||
| - Rated load: 1, 2t | Temp range: - 30~ + 70°C | ||||
| - A/D module resolution: 20000 yard | Zero balance: -0.1%~ + 0.1% F.S | ||||
| Refresh rate for date: 50Hz | Protection Class: IP68 | ||||
| Communication: baud rate: 9600BPS | Rated input Volt: 9~12V DC | ||||
| Combined error: -0.02% ~ +0.02%F.S | Max input Volt: 20V DC | ||||
| Creep error (30min): -0.02% ~ +0.02%FS | Safety overload: 150%F.S | ||||
| Temp effect sensitivity: -0.02% ~ +0.02%F.S/ 10 °C | Max signal transmission distance: 1200m | ||||
|
Dimension
|
Capability
|
Specification
|
|
0.8*0.8m
|
Up to 10T
|
A) Single deck
B) Carbon steel structure, power-coated C) U-shape beams by moulds D) With load cells E) Indicator optional F) With junction box |
|
1.0*1.0m
|
||
|
1.2*1.2m
|
||
|
1.2*1.5m
|
||
|
1.5*1.5m
|
||
|
1.5*2.0m
|
||
|
2.0*2.0m
|
||
|
2.0*3.0m
|
