| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | KEDA |
| Certification: | ISO9001:2018 |
| Model Number: | SCS-70T |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiated price |
| Packaging Details: | The platform of truck scale is nude packed and other electronic components is packed with carton box or wooden cases |
| Delivery Time: | 10~25 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 Set/Sets per Month |
| Product Name: | Semi Truck Scales | Capacity: | 70 Ton |
|---|---|---|---|
| Accuracy: | 20KG | Platform Size: | Custom |
| Power Supply: | 220V/50HZ | Material: | Q235 Steel Plate |
| Structure: | U-shaped Beams With 6pcs | Display: | LED |
| High Light: | public weigh scales,vehicle weight scales |
||

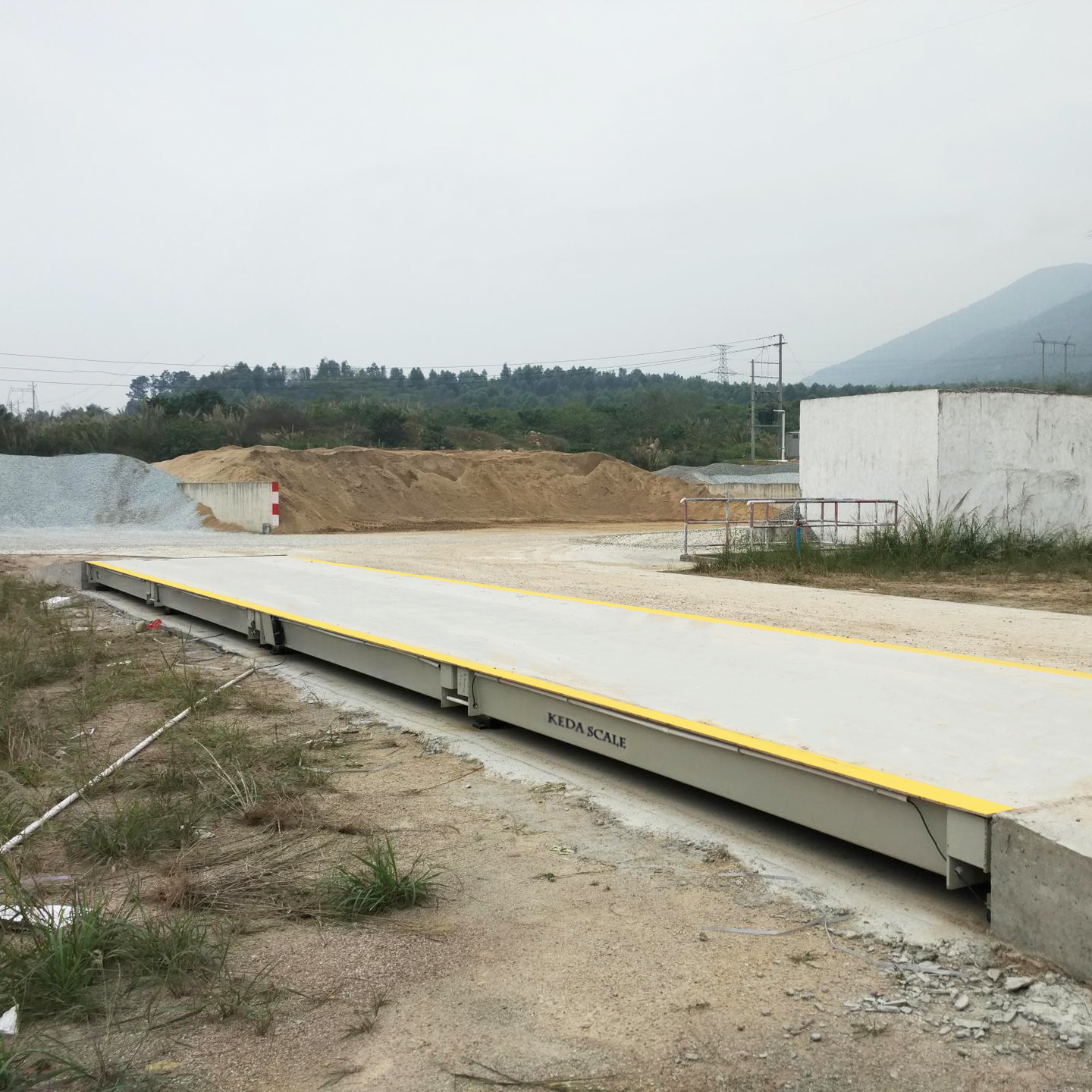

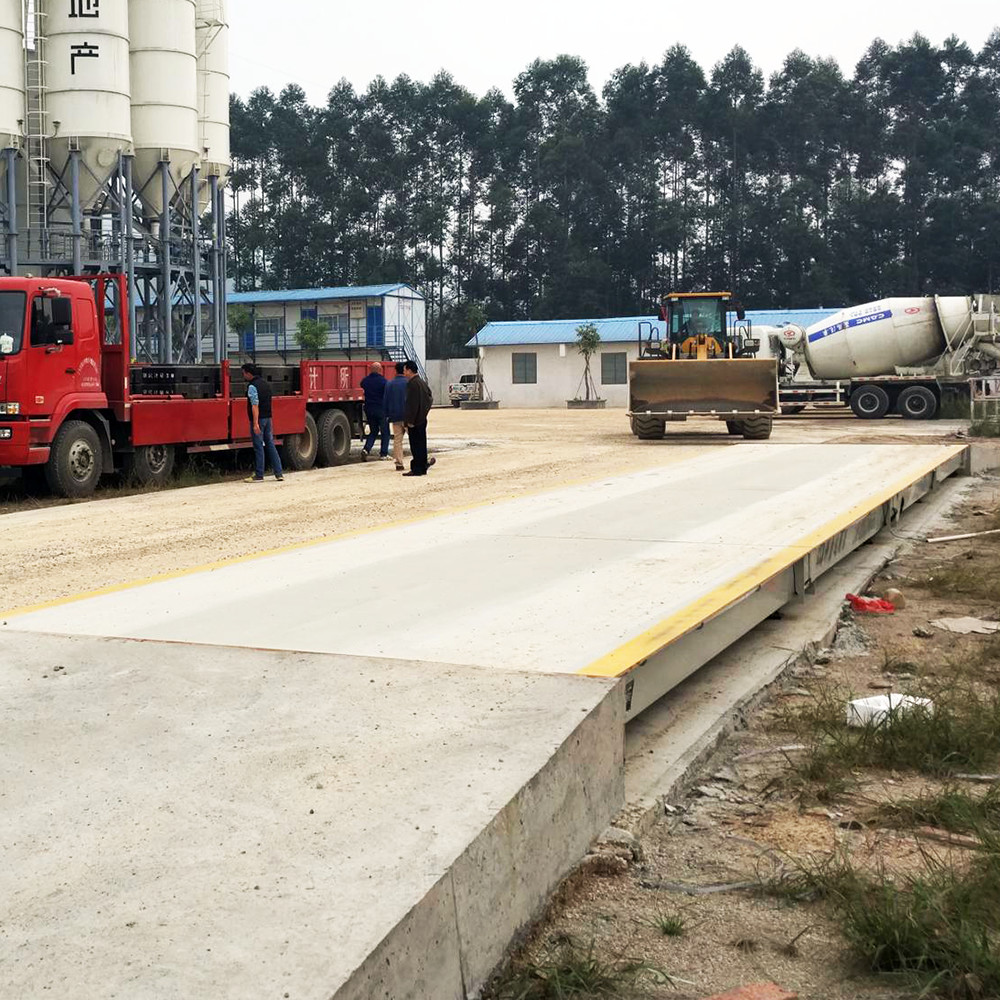

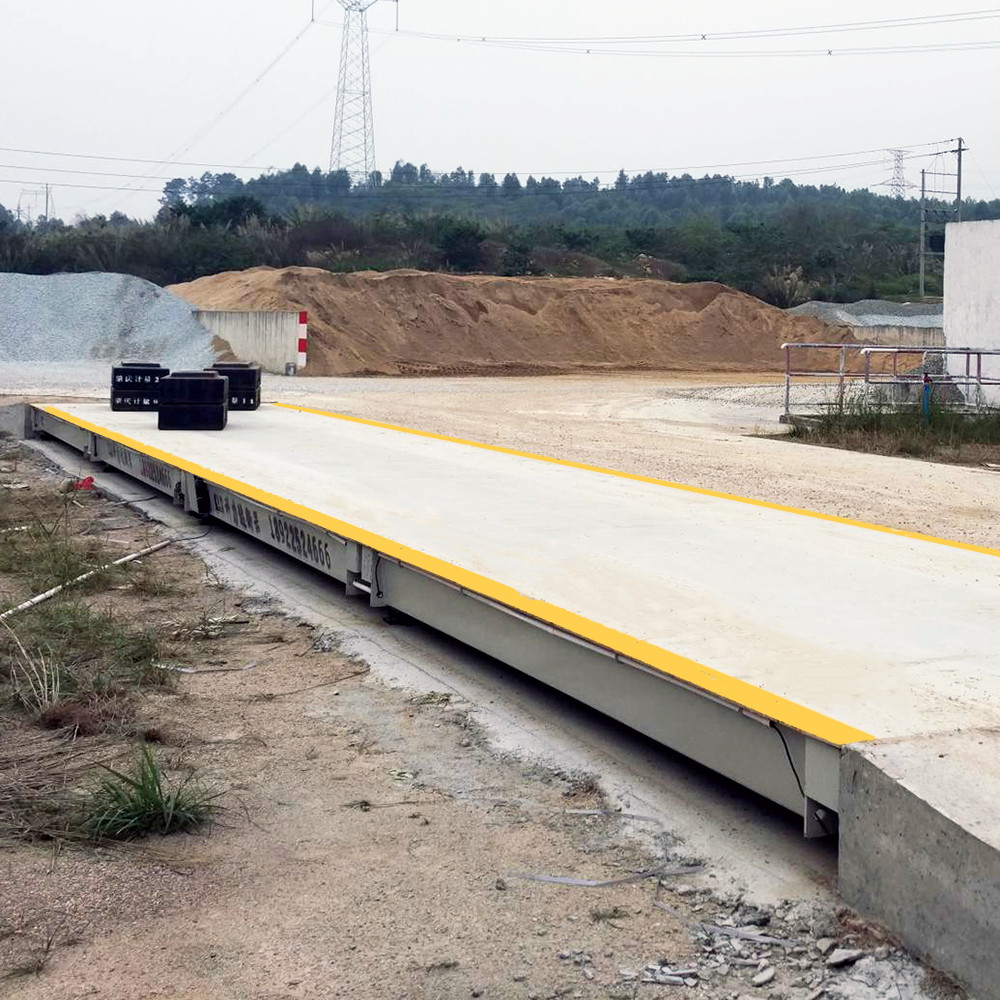

Truck scale platform, high accuracy weighing load cells, weight indicator, junction box and shield cable are necessary parts of a basic truck scale. Printer, scoreboard and computer management system are optional so as to complete the requirements of data management and transmission on the higher level.
Low profile deck design-30cm high
Dimensions from 6x3m up to 24x3m
Modular panels made of U or I steel beams with thickness 6/8mm
Rolling surface composed of steel plate with high thickness 8/10/12/14mm
Skidproof design for surface platform (optional)
Easy access to load cells and junction box through removable access hatches on the surface platform
High precision compression load cells, bridge type IP68 digital ZEMIC model with CE & OMIL certificate
Finishing in industrial epoxy paint colour
Suitable for an intensive usage.
| Truck Scale Technical Paramater | |
| Type | Digital truck scale |
| Platfrom size | From 6m to 24m |
| Platform material | 8/10/12/14/16/20mm thickness top steel plate |
| Painting | poxy zinc rich primer and acrylic marine paint |
| Max. Cap | From 30ton to 150ton available |
| Accuracy | OIML Ⅲ |
| Safe over loade | 150%F.S |
| Power supply | 110V+-10%; 220V +-10% AC or DC, 50 or 60Hz |
| Load cell | Keli digital load cell or ZEMIC digital load cell |
| Weighing indicator | YAOHUA or Keda indicator |
| Interface | RS232 (or RS485), PC, printer, extra scoreboard |
| Working temperture | -10~40ºC(indicator), -30~75ºC(load cell) |
| Working humidity | ≤95% |
| Certificate | CE, OIML, ISO9001:2015 |
| Recommended dimension for KEDA truck scale platform | |||||||||
| Capacity(Tons) | 30 | 40 | 50 | 60 | 80 | 100 | 120 | 150 | |
| Division Value | 5KG/10KG/20KG/50KG | ||||||||
| Platform size:L*W(m) | Recommended size | Packing(container) | |||||||
| 3*7 | √ | √ | 1x20'GP | ||||||
| 3*9 | √ | √ | √ | √ | √ | 1x20'GP | |||
| 3*12 | √ | √ | √ | √ | √ | √ | 1x20'GP | ||
| 3*14 | √ | √ | √ | √ | √ | √ | 1x20'GP | ||
| 3*16 | √ | √ | √ | √ | √ | 1x20'GP | |||
| 3*18 | √ | √ | √ | √ | √ | 1x20'GP | |||
| 3*20 | √ | √ | √ | √ | 1x40'GP | ||||
| 3*22 | √ | √ | √ | 1x40'GP | |||||
| 3*24 | √ | √ | 1x40'GP | ||||||
| Remark | Other capacity, size and apprearance can be customized according your requirements. | ||||||||
