| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | KEDA |
| Certification: | ISO9001:2018 |
| Model Number: | SCS-40 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiated price |
| Packaging Details: | The platform of truck scale is nude packed and other electronic components is packed with carton box or wooden cases |
| Delivery Time: | 10~25 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 Set/Sets per Month |
| Product Name: | Weight Scale For Semi Truck | Power Supply: | 220V/50HZ |
|---|---|---|---|
| Capacity: | 100Ton | Accuracy: | 50KG |
| Platform Size: | Custom | Material: | Q235 Steel |
| Structure: | U Beams With 6pcs | Safe Overload: | 150%F.S |
| High Light: | public weigh scales,vehicle weight scales |
||
KEDA SCS series electronic truck scale is a new generation of truck scale which depends on today's domestic truck scale advantage. It's gradually developed by our own technology and long period of overloading tests.

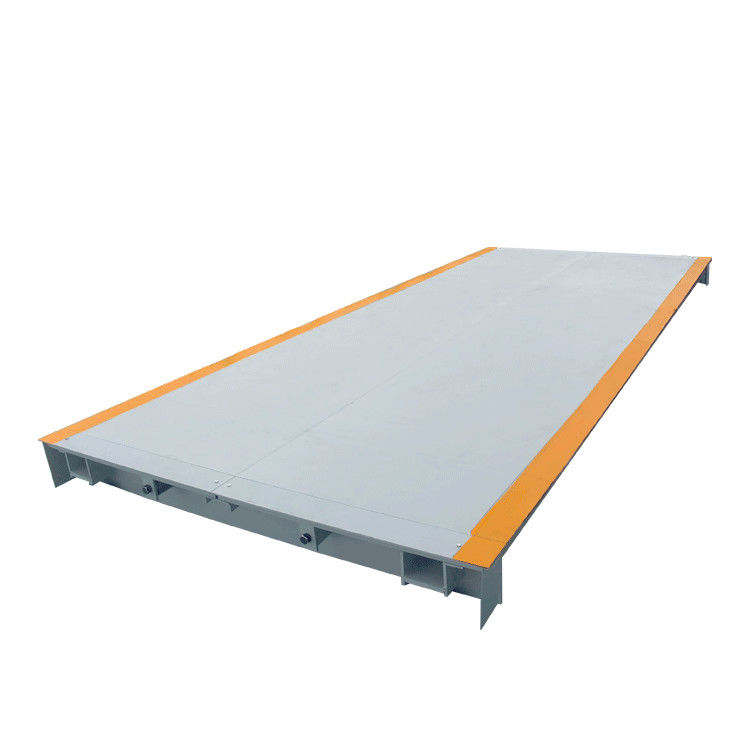

Modularized scale platform
High precision and high protection digital load cells
Easy operations
Networking, management efficiency

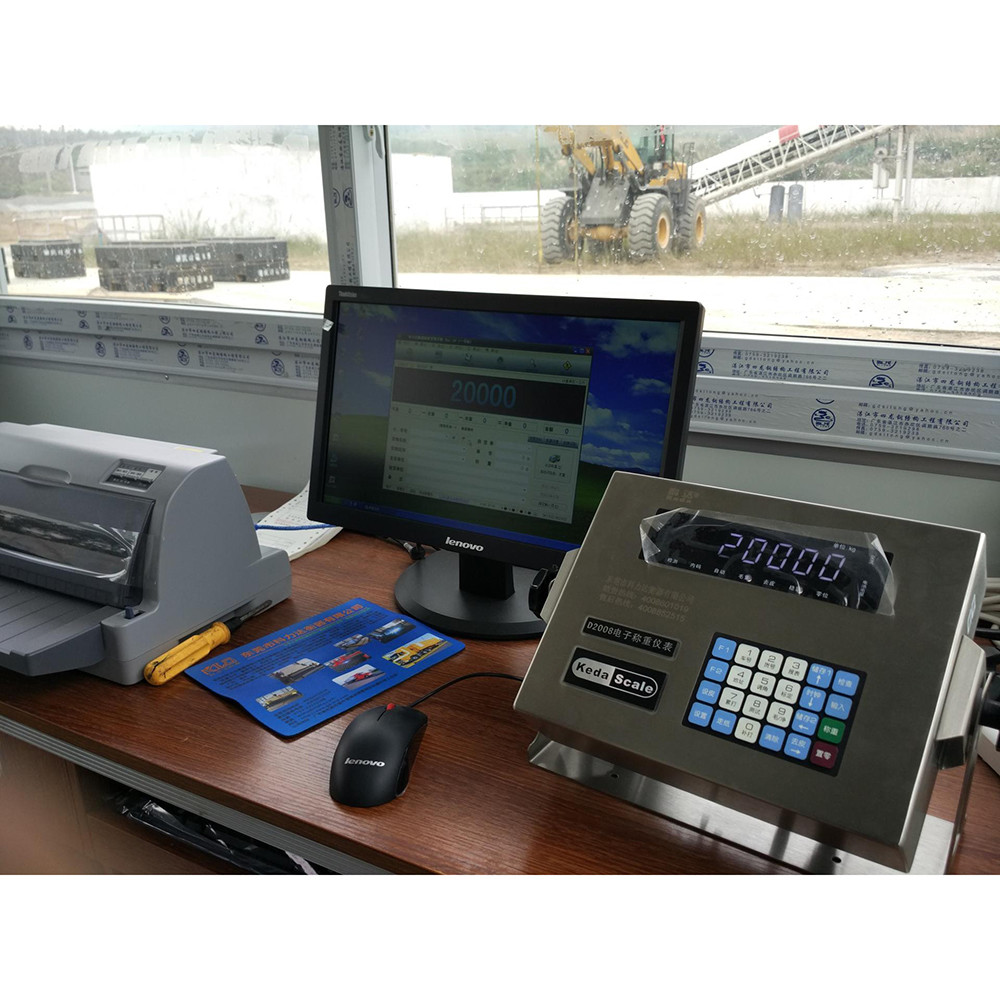

Grosse weight, tare, net weight display. User can set date, time, serial number, truck no. and cargo no.
1000 car No. tare weight, cargo No and group weighing record.
Different format daily report, work report, total report, can be printed separately
Disconnection protective, long-term info. Storage
Platform Size: customized also available
| Truck Scale Technical Paramater | |
| Type | Digital truck scale |
| Platfrom size | 100 Ton |
| Platform material | 8/10/12/14/16/20mm thickness top steel plate |
| Painting | poxy zinc rich primer and acrylic marine paint |
| Max. Cap | From 30ton to 150ton available |
| Accuracy | OIML Ⅲ |
| Safe over loade | 150%F.S |
| Power supply | 110V+-10%; 220V +-10% AC or DC, 50 or 60Hz |
| Load cell | Keli digital load cell or ZEMIC digital load cell |
| Weighing indicator | YAOHUA or Keda indicator |
| Interface | RS232 (or RS485), PC, printer, extra scoreboard |
| Working temperture | -10~40ºC(indicator), -30~75ºC(load cell) |
| Working humidity | ≤95% |
| Certificate | CE, OIML, ISO9001:2015 |
| Recommended dimension for KEDA truck scale platform | |||||||||
| Capacity(Tons) | 30 | 40 | 50 | 60 | 80 | 100 | 120 | 150 | |
| Division Value | 5KG/10KG/20KG/50KG | ||||||||
| Platform size:L*W(m) | Recommended size | Packing(container) | |||||||
| 3*7 | √ | √ | 1x20'GP | ||||||
| 3*9 | √ | √ | √ | √ | √ | 1x20'GP | |||
| 3*12 | √ | √ | √ | √ | √ | √ | 1x20'GP | ||
| 3*14 | √ | √ | √ | √ | √ | √ | 1x20'GP | ||
| 3*16 | √ | √ | √ | √ | √ | 1x20'GP | |||
| 3*18 | √ | √ | √ | √ | √ | 1x20'GP | |||
| 3*20 | √ | √ | √ | √ | 1x40'GP | ||||
| 3*22 | √ | √ | √ | 1x40'GP | |||||
| 3*24 | √ | √ | 1x40'GP | ||||||
| Remark | Other capacity, size and apprearance can be customized according your requirements. | ||||||||
