| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | KEDA |
| Certification: | ISO CE |
| Model Number: | SCS-60T |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiated price |
| Packaging Details: | The platform of weighbridge is nude packed and the accessories are packed in carton or wooden box |
| Delivery Time: | 15~25 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 Set/Sets per Month |
| Product Name: | Digital Weighbridge | Max. Cap: | 60 Ton |
|---|---|---|---|
| Min. Cap: | 400kg | Accuracy: | 20KG |
| Material: | Q235 Steel Plate | Size: | Customized |
| Structure: | U Beam With 6pcs | ||
| High Light: | 04809Q11426R0M Truck Scales,60 Ton Industrial Truck Scales,KEDA Industrial Truck Scales |
||

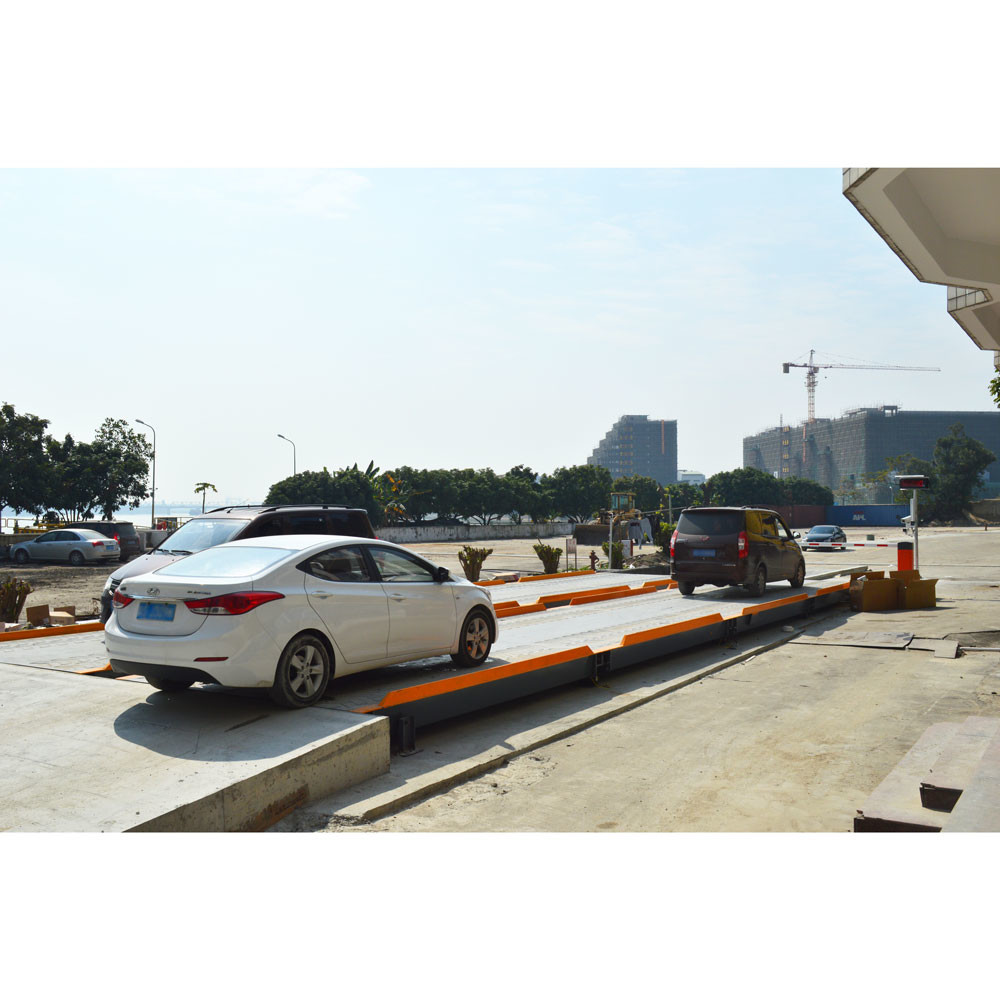

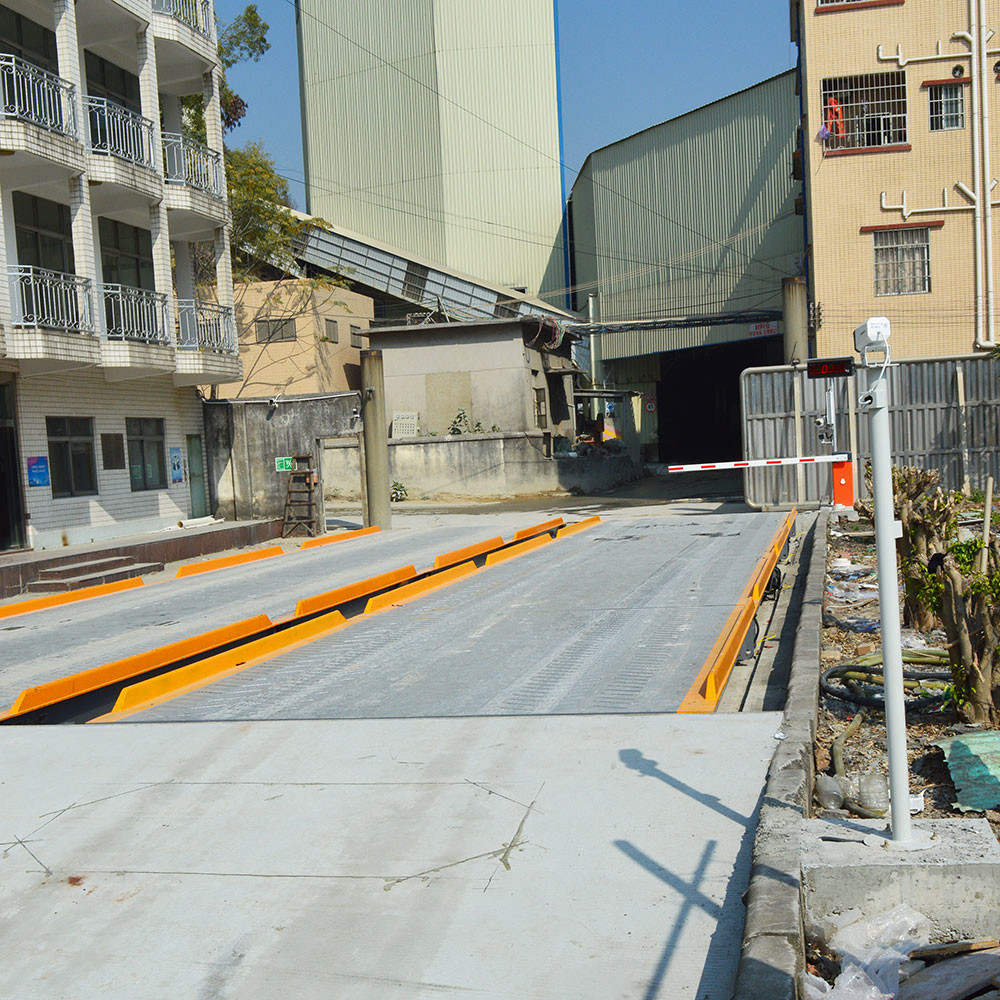

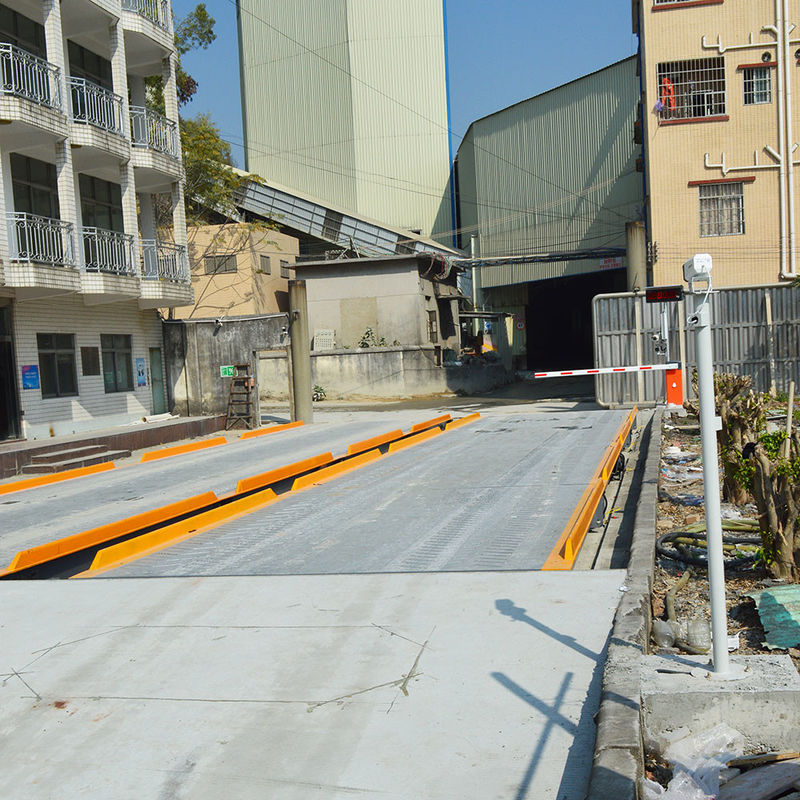

China Heavy Duty Electronic Industrial 60 Ton Weighbridge Manufacturer
Designed with demanding industrial environments in mind, KEDA truck scales weigh vehicles dependably and accurately over a long scale life.
Manufactured and built from high quality Q235 steel, your truck scale from KEDA will feature:
1. Automatic reset force transmission system
2. Can be matched with various indicators
3. Digital display gross weight, net weight, tare
4. Dynamic, under load and overload, etc state display
5. Modularization, standardization,
6. Subtract tare and clear tare automatically
7. Keyboard set/calibration
8. Vehicle No., tare storage, subitem accumulation, total accumulation
9. Data output/print automatically
| Product description & specification | |
| Width | 3m,3.2m.3.4m,3.5m,4.5m |
| Length | 6m,7m,8m,9m,10m,12m,14m,16m,18m,20m,21m,22m,23m,24m |
| Accuracy class | OIML(III) |
| Max Capacity range | 10-200(Ton) |
| Safe overload | 150% |
| Painting | Anti rust and anti corrosion painting |
| Work temperature | Indicator:-10°C to +40°C Scale platform: -30°C to +65°C |
| power supply | 220V 60HZ or 110V 60HZ(AC and DC) |
| Packing detail | Carton packing |
| Quality system | ISO9001:2008 |
| Certificate | 04809Q11426R0M |
| Standard accessory part include: | |
| Weighing indicator | Analog type or digital type(Stainless surface with LED OR LCD) |

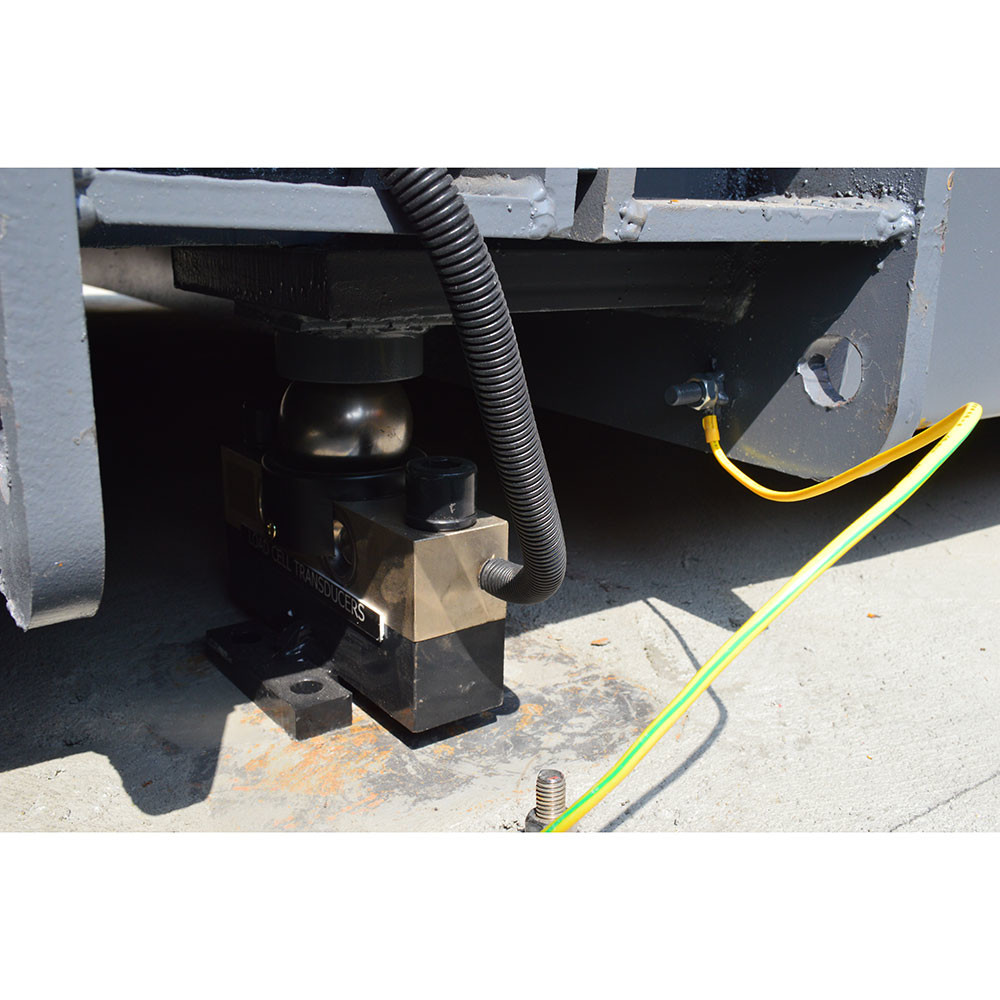

| Load cell/sensor | High accuracy load cell(Rate load 30ton) |
| Printer | Epson Brand optional(Use print out weight bill) |
| Junction boxes | Stainless Waterproof type junction boxes (IP68) |
| Connect cable | 50M(depends on the distance from scale house to scale) |
| Screw | 8.8 class high strength Bolts-screws,limit screw,loading cell screw,cover plate screw |
| Installation tools | Inner six angle spanner,Uncrock spanners,Screwdriver. |
| Optional accessory part include: | |
| Scoreboard | Convenience for seeing weighing result in the long distance.(LED) |
| Weighing management software | Install software in PC and operate the truck ID,tare,net,gross,accumulation etc intelligence automatic system. |
| PC | Brand desktop computer |
| Protect rail | Use warm and protect safe weighing |
| Steel ramps | Use convenient for truck drive on scale weighing |
| Note | Other optional part:Camera,traffic light,fence,etc |
