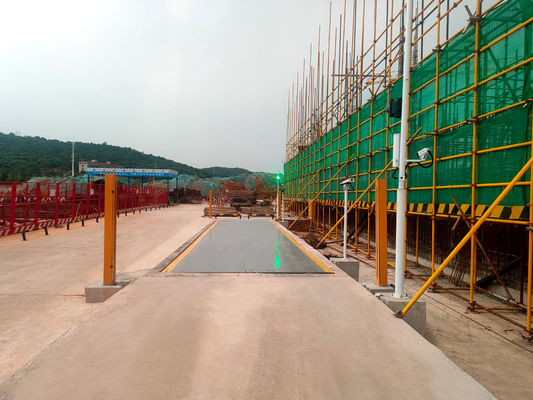

ISO Q235 100 Ton Vehicle Weigh Bridge Weighing Scales System

ISO Q235 100 Ton Vehicle Weigh Bridge Weighing Scales System
ISO Q235 100 Ton Vehicle Weigh Bridge Weighing Scales System ISO Q235 100 Ton Vehicle Weigh Bridge Weighing Scales System
Basic Information
Place of Origin: Guangdong, China
Brand Name: KEDA
Certification: ISO CE
Model Number: SCS-100T
Minimum Order Quantity: 1 set
Price: Negotiated price
Packaging Details: The body of truck weight bridge is nude packed and the accessories are packed in cartons
Delivery Time: 10~25 days
Payment Terms: L/C, D/P, T/T
Supply Ability: 50 Set/Sets per Month
Contact Now
Model: SCS-100T Size: Customized
Material: Q235 Interface: RS232C / Printer / PC
Load Cell: 30T Bridge Type Load Cell Display: LCD
Capacity: 100Ton Accuracy: 10kg/20kg/50kg
Safe Overload: 150%F.S Power: 220V AC Or 9V DC
Highlight:

Q235 Vehicle Weigh Bridge

,

ISO Vehicle Weigh Bridge 100 Ton

,

Q235 100 Ton Weighing Scales System

High Precision 100Ton Vehicle Weigh Bridge Weighing Scales System



Description

The export split truck scale adopts the all-electronic modular vehicle weighing system designed by the world's advanced weighing sensors and weighing indicators and various external equipment. The whole truck scale system has strong environmental adaptability. After the configuration is strengthened, it can be fully intelligent and unattended, and the metering performance is superior, the accuracy is high, the long-term stability is good, and the installation, commissioning and maintenance are convenient. Widely used in foreign metallurgy, mining, machinery, chemical, port and road cargo stations and other industries.



Advantages of digital weighbridge:

  1. strong transmission signal and no interference
  2. reduced unbalanced loading due to temperature and creeping due to time
  3. digital transmission avoiding man-made interference and cheating
  4. prevent the lightening-protection of the whole system
  5. Description of weighing platform

The structure is enclosed construction with 6 U-shaped beams.Compared with normal structure with I-shaped beams,this enclosed design has two advantages-one is to keep off corrosion from inside out protect platform; the other one is more rigid since 6 U-shape beams has 12 support lines than 6 I-shaped beam's and besides stress from truck etc can be divided equally. And surface of platform is covered with epoxy zinc rich primer and acrylic marine paint-the former,is for the first surface layer,whose main function is corrosion protecetion and to reducing chalking;while , the second layer is acrylic marine paint which is anti-acid,anti-alkali and anti-scratch.

Weighbridge technical parameter
  1. accuracy class:OMIL(III)
  2. weighing range:10~150(t)
  3. length:5~42(m)
  4. width:3m,3.2m,3.5m,4m
  5. safe overload:150Max
  6. input voltage:110V ±10%~220V ±10%,AC
  7. input power frequency:50Hz,60Hz
  8. power consumption:12V,DC
  9. serial port:RS232 or RS485 are available to for computer interface and scoreboard interface
  10. printer interface: compatible parallel port
  11. relative humidity:<95%
  12. working temperature:
  13. indicator:-10~+45 centigrade
  14. weighing platform and load cell:-30~+65 centigrade



Recommended dimension for KEDA weighbridge platform
Capacity(Tons) 30 40 50 60 80 100 120 150
Division Value 5KG/10KG/20KG/50KG
Platform size:L*W(m) Recommended size Packing(container)
3*7 √ √             1x20'GP
3*9 √ √ √ √ √       1x20'GP
3*12 √ √ √ √ √ √     1x20'GP
3*14 √ √ √ √ √ √     1x20'GP
3*16   √ √ √ √ √     1x20'GP
3*18     √ √ √ √ √   1x20'GP
3*20         √ √ √ √ 1x40'GP
3*22           √ √ √ 1x40'GP
3*24             √ √ 1x40'GP
Remark Other capacity, size and apprearance can be customized according your requirements.



ISO Q235 100 Ton Vehicle Weigh Bridge Weighing Scales System 0

ISO Q235 100 Ton Vehicle Weigh Bridge Weighing Scales System 1

ISO Q235 100 Ton Vehicle Weigh Bridge Weighing Scales System 2
