LED display U-Beam 50Ton Weigh bridge truck weighing scale for sale

Basic Information
Place of Origin: Guangdong, China
Brand Name: KEDA
Certification: ISO CE
Model Number: SCS-50T
Minimum Order Quantity: 1 set
Price: USD5000~14500
Packaging Details: The body of truck weight bridge is nude packed and the accessories are packed in cartons
Delivery Time: 10~25 days
Payment Terms: L/C, D/P, T/T
Model: 50T Digital Truck Scale Size: Customized
Material: Q235 Interface: RS232C / Printer / PC
Load Cell: 30T Bridge Type Load Cell Display: LCD
Capacity: 50T Accuracy: 10kg
Safe Overload: 150%F.S Power: 220V AC Or 9V DC
High Light:

public weigh scales

,

vehicle weight scales

               KEDA 50Ton Digital Weigh Bridge Weighing Scale

LED display U-Beam 50Ton Weigh bridge truck weighing scale for sale 0



We offer a range of high accurate Mechanical Weigh Bridge, which is popular for its sturdy construction and operations.Available in customized options,our weighing bridge is ideally used for measuring the weight of the truck.These are manufacturerd from quality raw material and are quality tested on well-defined parameters before being delivered to our clients.These Electronic Computerised Weigh Bridge are manufacutured from quality raw material and are quality tested on well-defined parameters before being delivered to our clients.

Specifications:

  1. Structure:U-shape beams
  2. OIML approval load cell and indicator
  3. weighbridge size can be customized

Advantages of digital weigh bridge scale:

  1. strong transmission signal and no interference
  2. reduced unbalanced loading due to temperature and creeping due to time
  3. digital transmission avoiding man-made interference and cheating
  4. prevent the lightening-protection of the whole system
  5. Description of weighing platform

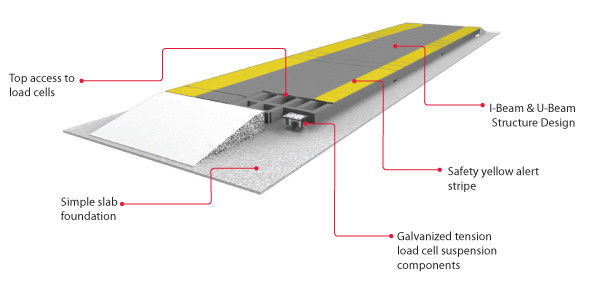

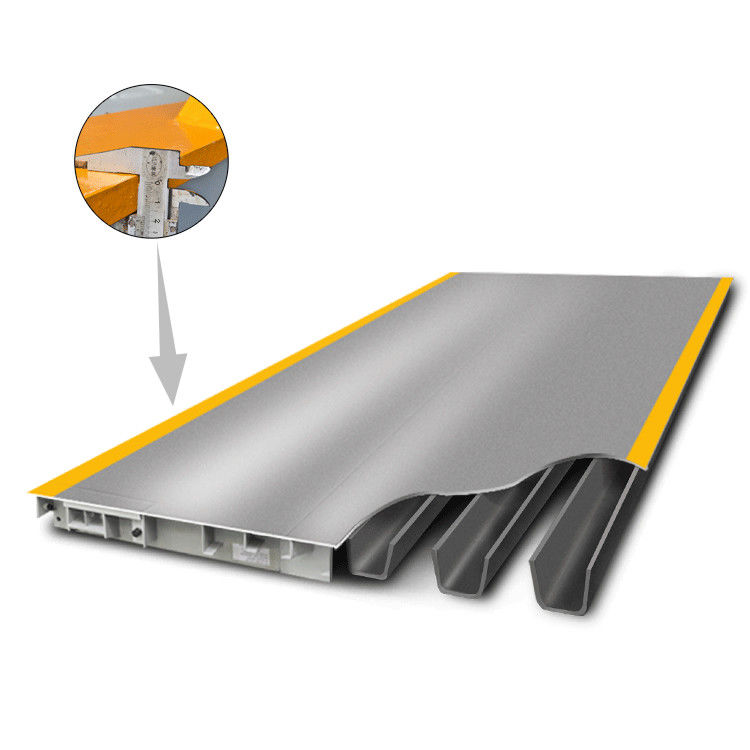

The structure is enclosed construction with 6 U-shaped beams.Compared with normal structure with I-shaped beams,this enclosed design has two advantages-one is to keep off corrosion from inside out protect platform; the other one is more rigid since 6 U-shape beams has 12 support lines than 6 I-shaped beam's and besides stress from truck etc can be divided equally. And surface of platform is covered with epoxy zinc rich primer and acrylic marine paint-the former,is for the first surface layer,whose main function is corrosion protecetion and to reducing chalking;while , the second layer is acrylic marine paint which is anti-acid,anti-alkali and anti-scratch.

Technical parameter
  1. accuracy class:OMIL(III)
  2. weighing range:10~150(t)
  3. length:5~42(m)
  4. width:3m,3.2m,3.5m,4m
  5. safe overload:150Max
  6. input voltage:110V ±10%~220V ±10%,AC
  7. input power frequency:50Hz,60Hz
  8. power consumption:12V,DC
  9. serial port:RS232 or RS485 are available to for computer interface and scoreboard interface
  10. printer interface: compatible parallel port
  11. relative humidity:<95%
  12. working temperature:
  13. indicator:-10~+45 centigrade
  14. weighing platform and load cell:-30~+65 centigrade

Recommended dimension for KEDA truck scale platform

Capacity(Tons) 30 40 50 60 80 100 120 150
Division Value 5KG/10KG/20KG/50KG
Platform size:L*W(m) Recommended size Packing(container)
3*7             1x20'GP
3*9       1x20'GP
3*12     1x20'GP
3*14     1x20'GP
3*16       1x20'GP
3*18       1x20'GP
3*20         1x40'GP
3*22           1x40'GP
3*24             1x40'GP
Remark Other capacity, size and apprearance can be customized according your requirements.

LED display U-Beam 50Ton Weigh bridge truck weighing scale for sale 1

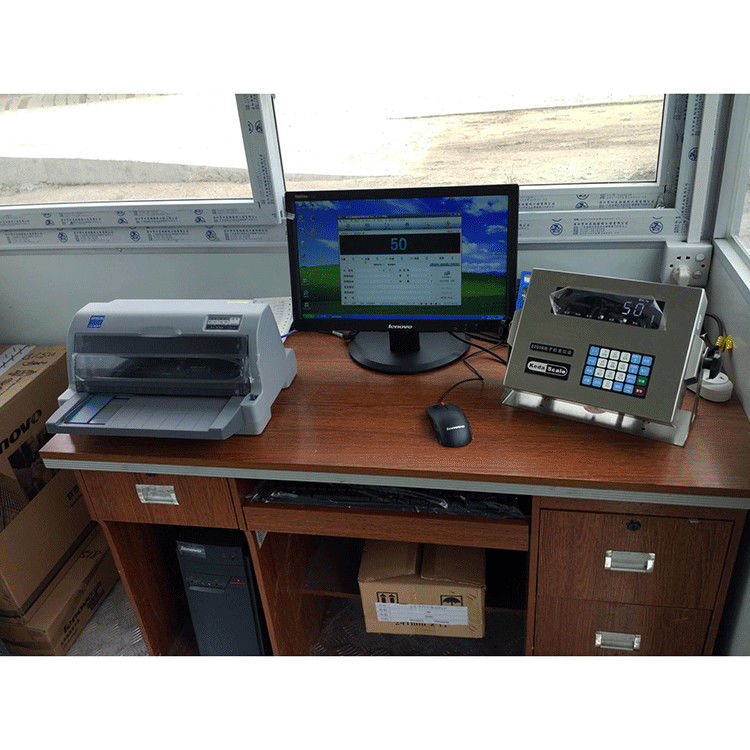

Weighing System

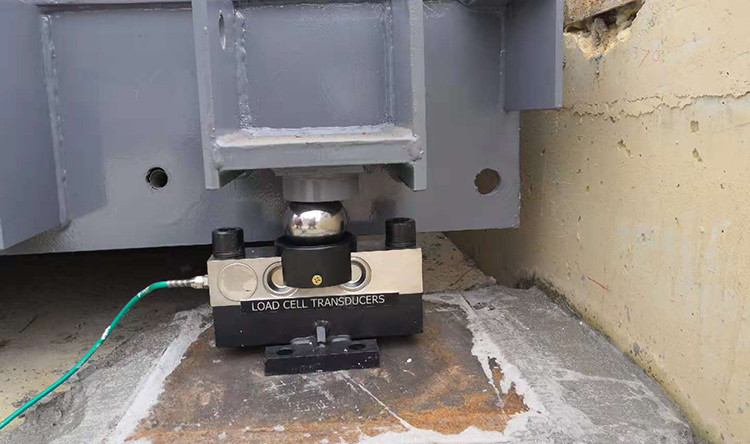

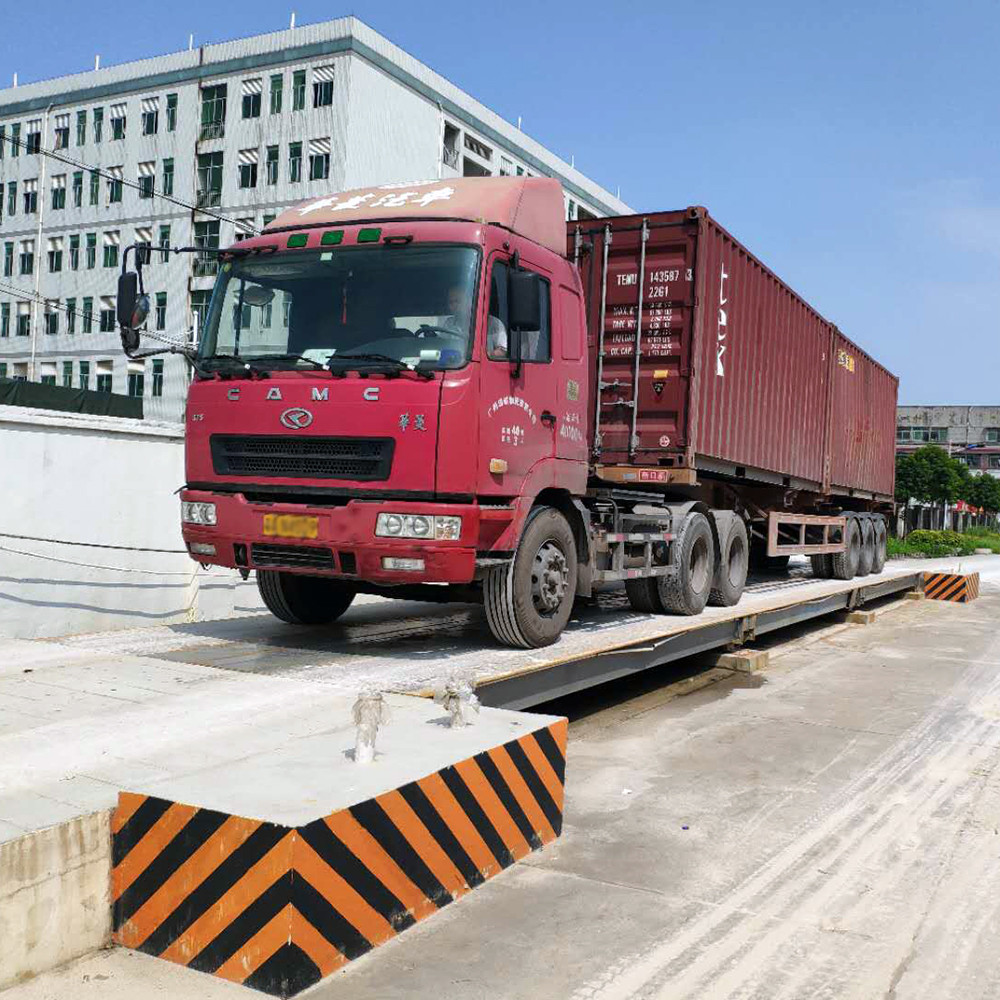

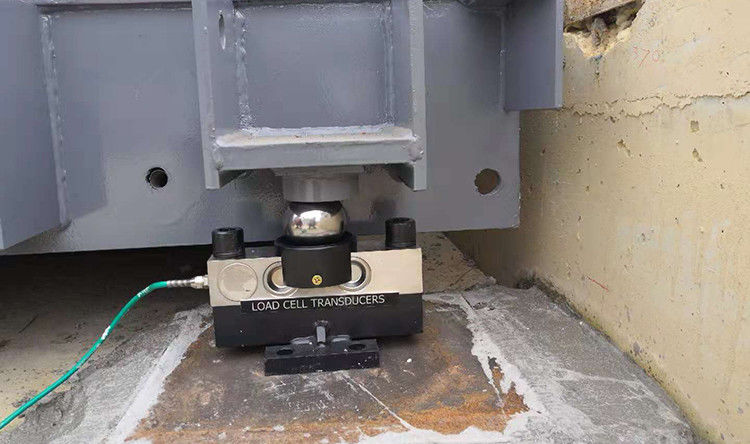

Installation of truck scale

LED display U-Beam 50Ton Weigh bridge truck weighing scale for sale 3

LED display U-Beam 50Ton Weigh bridge truck weighing scale for sale 4

LED display U-Beam 50Ton Weigh bridge truck weighing scale for sale 5

LED display U-Beam 50Ton Weigh bridge truck weighing scale for sale 6

CERTIFICATE FOR OUR TRUCK SCALE
