Place of Origin: | Guangdong, China |
---|---|
Brand Name: | KEDA |
Certification: | ISO CE |
Model Number: | SCS-100T |
Minimum Order Quantity: | 1 set |
Price: | USD5000~14500 |
Packaging Details: | The body of truck weight bridge is nude packed and the accessories are packed in cartons |
Delivery Time: | 10~25 days |
Payment Terms: | L/C, D/P, T/T |
Model: | Truck Scale | Size: | Customized |
---|---|---|---|
Material: | Q235 | Interface: | RS232C / Printer / PC |
Load Cell: | 30T Bridge Type Load Cell | Display: | LCD |
Capacity: | 100T | Accuracy: | 50kg |
Safe Overload: | 150%F.S | Power: | 220V AC Or 9V DC |
High Light: | public weigh scales,vehicle weight scales |

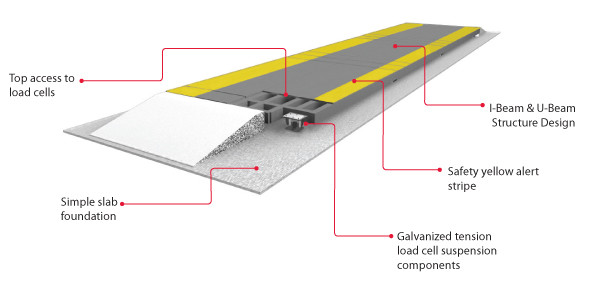

Recommended dimension for KEDA truck scale platform |
|||||||||
Capacity(Tons) | 30 | 40 | 50 | 60 | 80 | 100 | 120 | 150 | |
Division Value | 5KG/10KG/20KG/50KG | ||||||||
Platform size:L*W(m) | Recommended size | Packing(container) | |||||||
3*7 | √ | √ | 1x20'GP | ||||||
3*9 | √ | √ | √ | √ | √ | 1x20'GP | |||
3*12 | √ | √ | √ | √ | √ | √ | 1x20'GP | ||
3*14 | √ | √ | √ | √ | √ | √ | 1x20'GP | ||
3*16 | √ | √ | √ | √ | √ | 1x20'GP | |||
3*18 | √ | √ | √ | √ | √ | 1x20'GP | |||
3*20 | √ | √ | √ | √ | 1x40'GP | ||||
3*22 | √ | √ | √ | 1x40'GP | |||||
3*24 | √ | √ | 1x40'GP | ||||||
Remark | Other capacity, size and apprearance can be customized according your requirements. |
