Q235 steel weighbridge platofrom electronic truck scale with scoreboard

Basic Information
Place of Origin: Guangdong, China
Brand Name: KEDA
Certification: ISO
Model Number: SCS-80
Minimum Order Quantity: One set
Price: USD6000~12500
Packaging Details: The body of truck weight bridge is nude packed and the accessories are packed in cartons
Delivery Time: 10~25 days
Payment Terms: L/C, T/T
Supply Ability: 100 Set/Sets per Month
Product Name: Truck Scale Material: Q235
Rated Load: 100Ton Sensor: Digital Or Analog Type
Power: 220V AC Or 9V DC Accuracy: OIML
Safe Overload: 150% F.S Structure: U-Beam
Certificate: CE ISO9001 Interface: RS232 / Printer / PC
Warranty: 12 Month Software: Intelligent Weighing Management System
High Light:

public weigh scales

,

vehicle weight scales

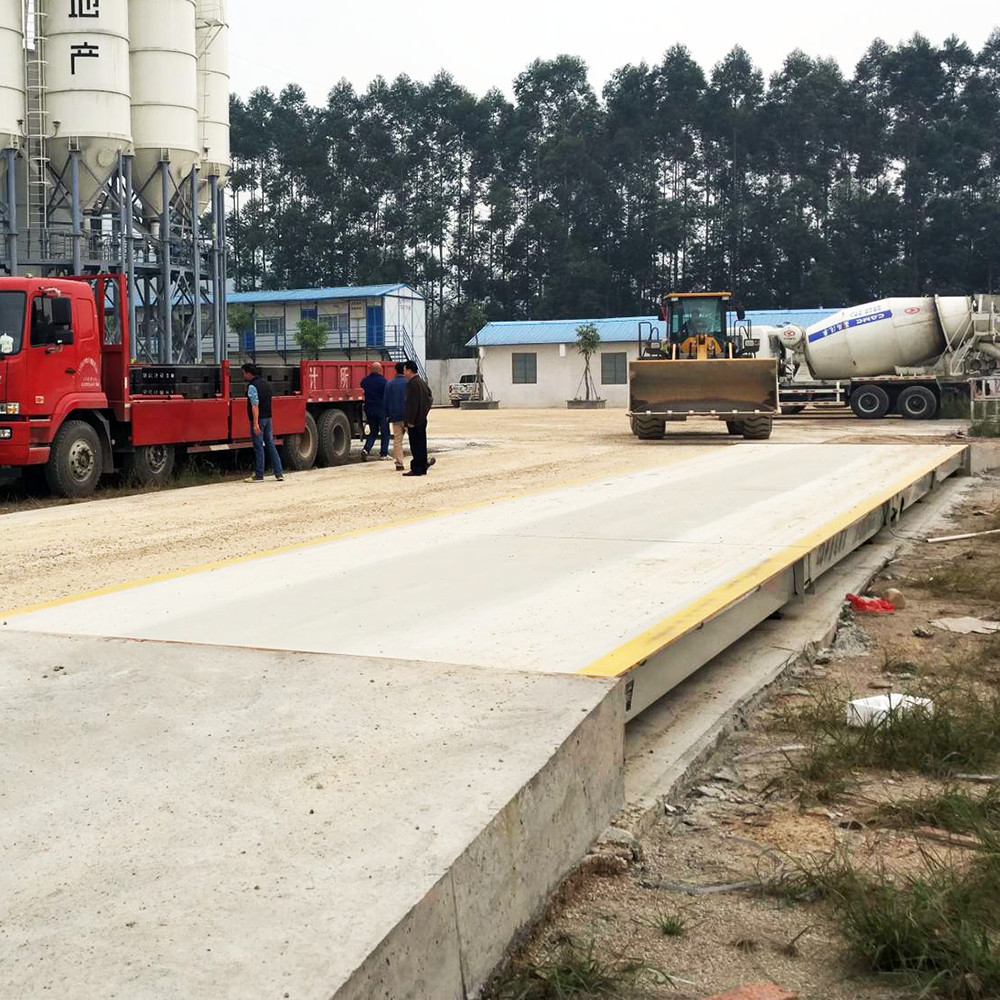

Q235 steel weighbridge platofrom electronic truck scale with scoreboard 0

Standard configuration:

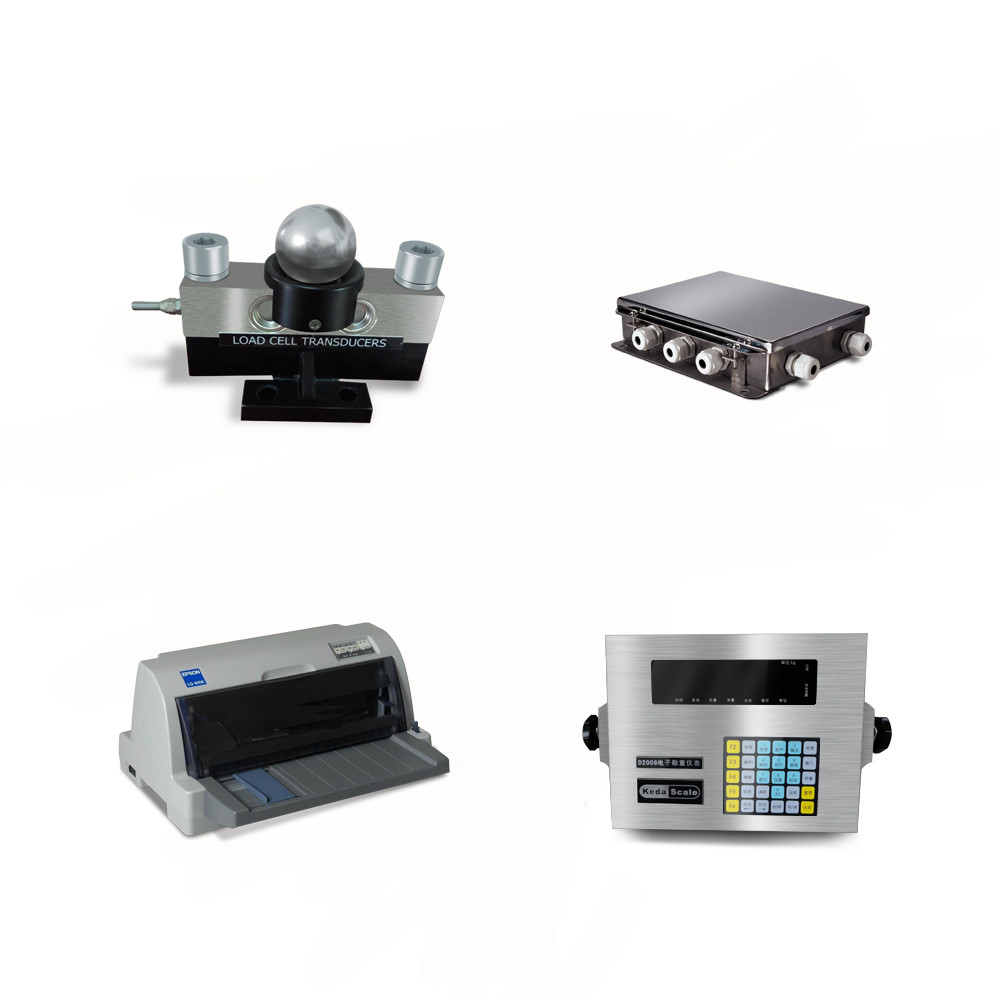

Truck scale platform, high accuracy weighing load cells, weight indicator, junction box and shield cable are necessary parts of a basic truck scale printer, scoreboard and computer management system are optional so as to complete the requirements of data management and transmission on the higher level.



The SCS Truck scale is available in both surface and pit mount designs. Key features include:

Truck Scale Technical Paramater

Type Digital truck scale
Platfrom size Customized
Platform material 8, 10, 12, 20mm thickness top steel plate
Painting poxy zinc rich primer and acrylic marine paint
Max. Cap 80Ton
Accuracy 20kg(OIML Ⅲ)
Safe over loade 150%F.S
Power supply 110V+-10%; 220V +-10% AC or DC, 50 or 60Hz
Load cell Digital
Weighing indicator YAOHUA or Keda indicator
Interface RS232 (or RS485), PC, printer, extra scoreboard
Working temperture -10~40ºC(indicator), -30~75ºC(load cell)
Working humidity ≤95%
Certificate CE, OIML, ISO9001:2015

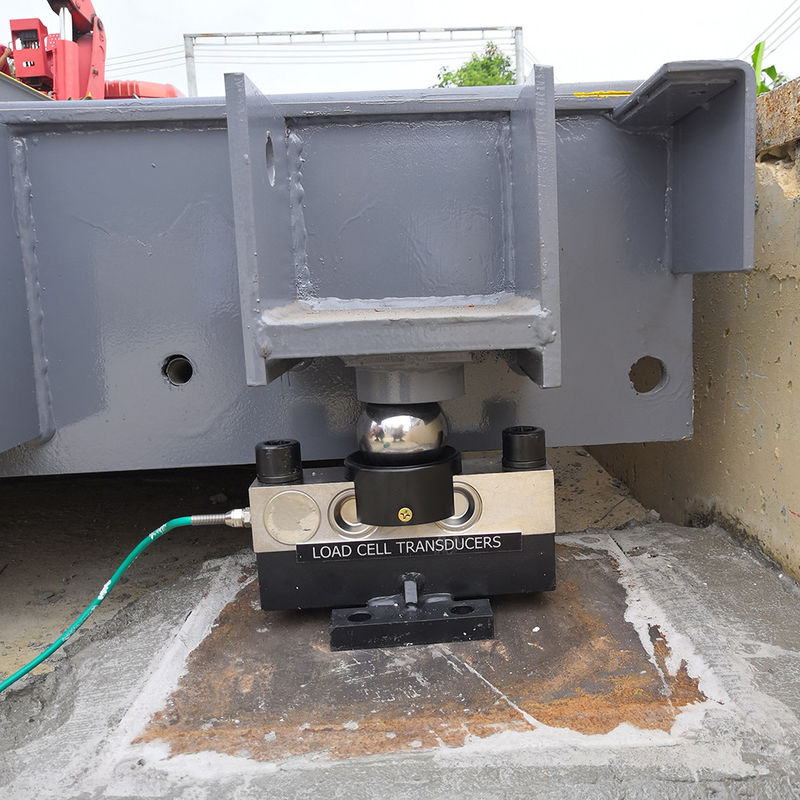

Q235 steel weighbridge platofrom electronic truck scale with scoreboard 1

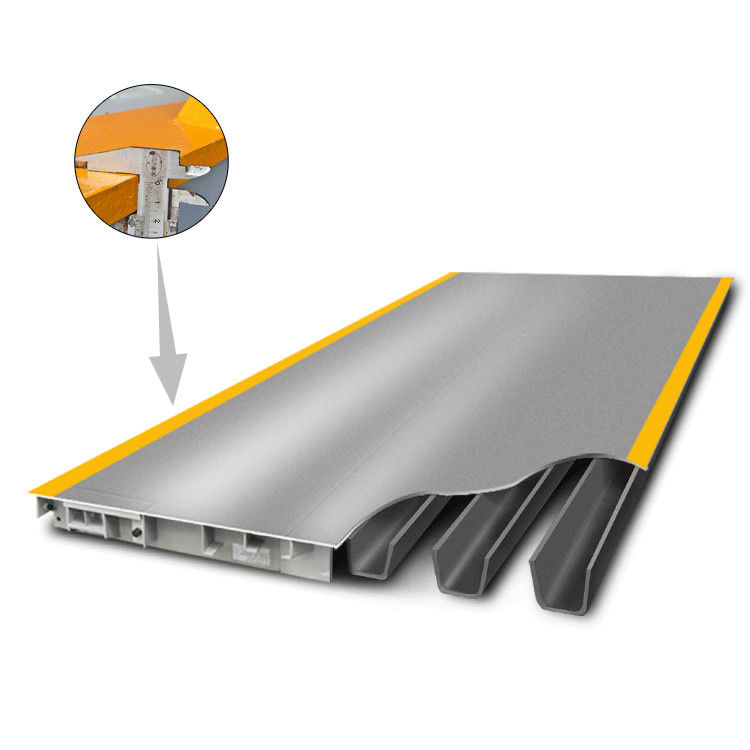

Q235 steel weighbridge platofrom electronic truck scale with scoreboard 2

Recommended dimension for truck scale platform

Capacity(Tons) 30 40 50 60 80 100 120 150
Division Value 5KG/10KG/20KG/50KG
Platform size:L*W(m) Recommended size Packing(container)
3*7             1x20'GP
3*9       1x20'GP
3*12     1x20'GP
3*14     1x20'GP
3*16       1x20'GP
3*18       1x20'GP
3*20         1x40'GP
3*22           1x40'GP
3*24             1x40'GP
Remark Other capacity, size and apprearance can be customized according your requirements.

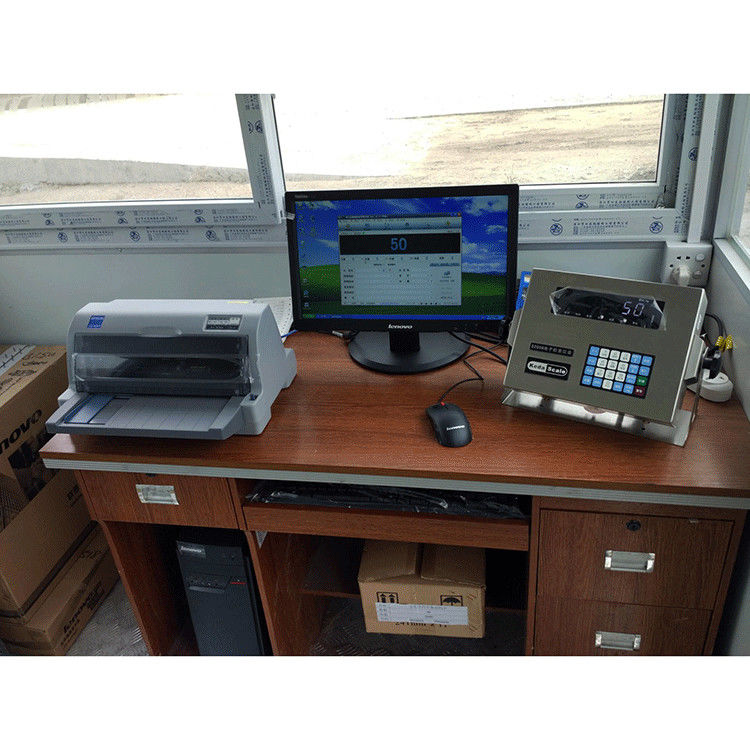

Q235 steel weighbridge platofrom electronic truck scale with scoreboard 3

Q235 steel weighbridge platofrom electronic truck scale with scoreboard 4

Q235 steel weighbridge platofrom electronic truck scale with scoreboard 5

Q235 steel weighbridge platofrom electronic truck scale with scoreboard 6

Q235 steel weighbridge platofrom electronic truck scale with scoreboard 7
