| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | KEDA |
| Certification: | ISO |
| Model Number: | SCS-120t |
| Minimum Order Quantity: | One set |
| Price: | USD6000~12500 |
| Packaging Details: | The body of truck weight bridge is nude packed and the accessories are packed in cartons |
| Delivery Time: | 10~25 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 Set/Sets per Month |
| Product Name: | 120T Truck Scale | Material: | Q235 |
|---|---|---|---|
| Sensor: | Digital Type | Power: | 220V AC Or 9V DC |
| Accuracy: | OIML 3 | Safe Overload: | 150% F.S |
| Structure: | U-Beam | Certificate: | CE ISO9001 |
| Interface: | RS232 / Printer / PC | Place Of Origin: | Guangdong, China |
| Warranty: | 12 Month | Software: | Intelligent Weighing Management System |
| High Light: | truck weight scale,vehicle weight scales |
||
Standard configuration:

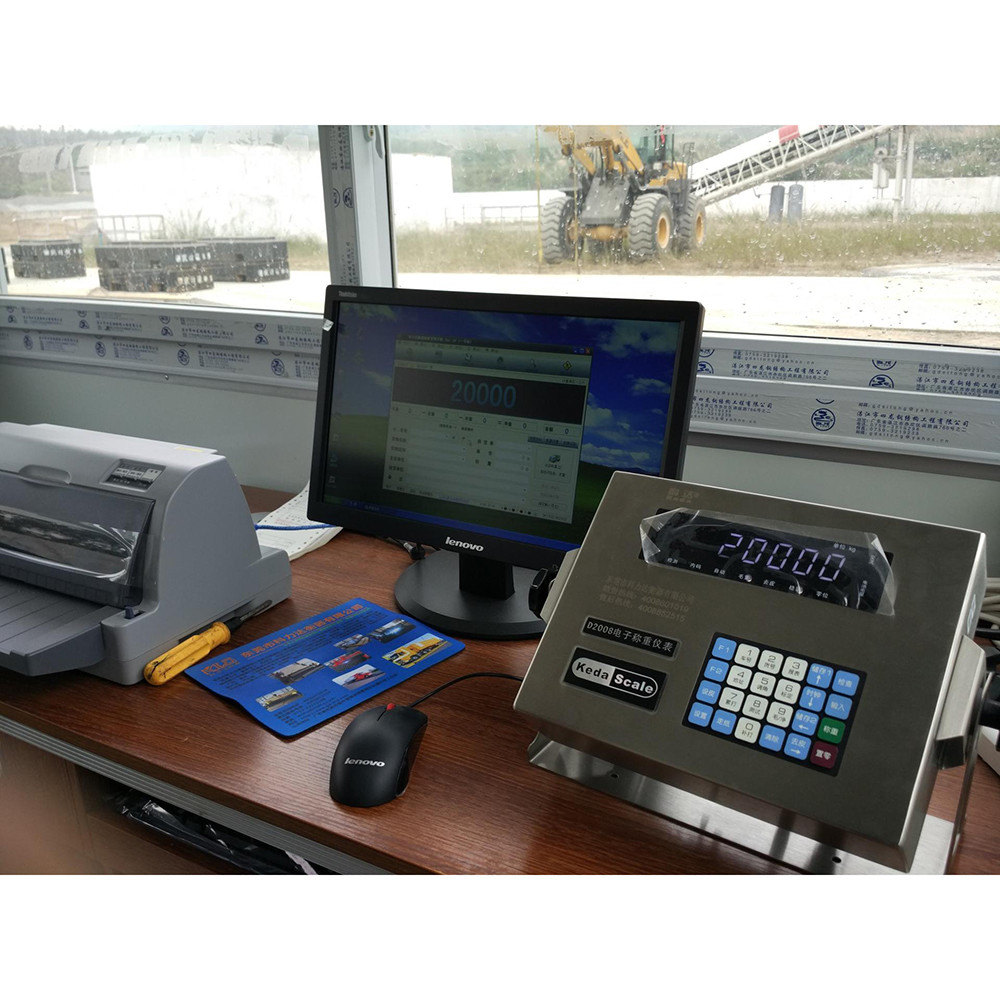

Truck scale platform, high accuracy weighing load cells, weight indicator, junction box and shield cable are necessary parts of a basic truck scale printer, scoreboard and computer management system are optional so as to complete the requirements of data management and transmission on the higher level.

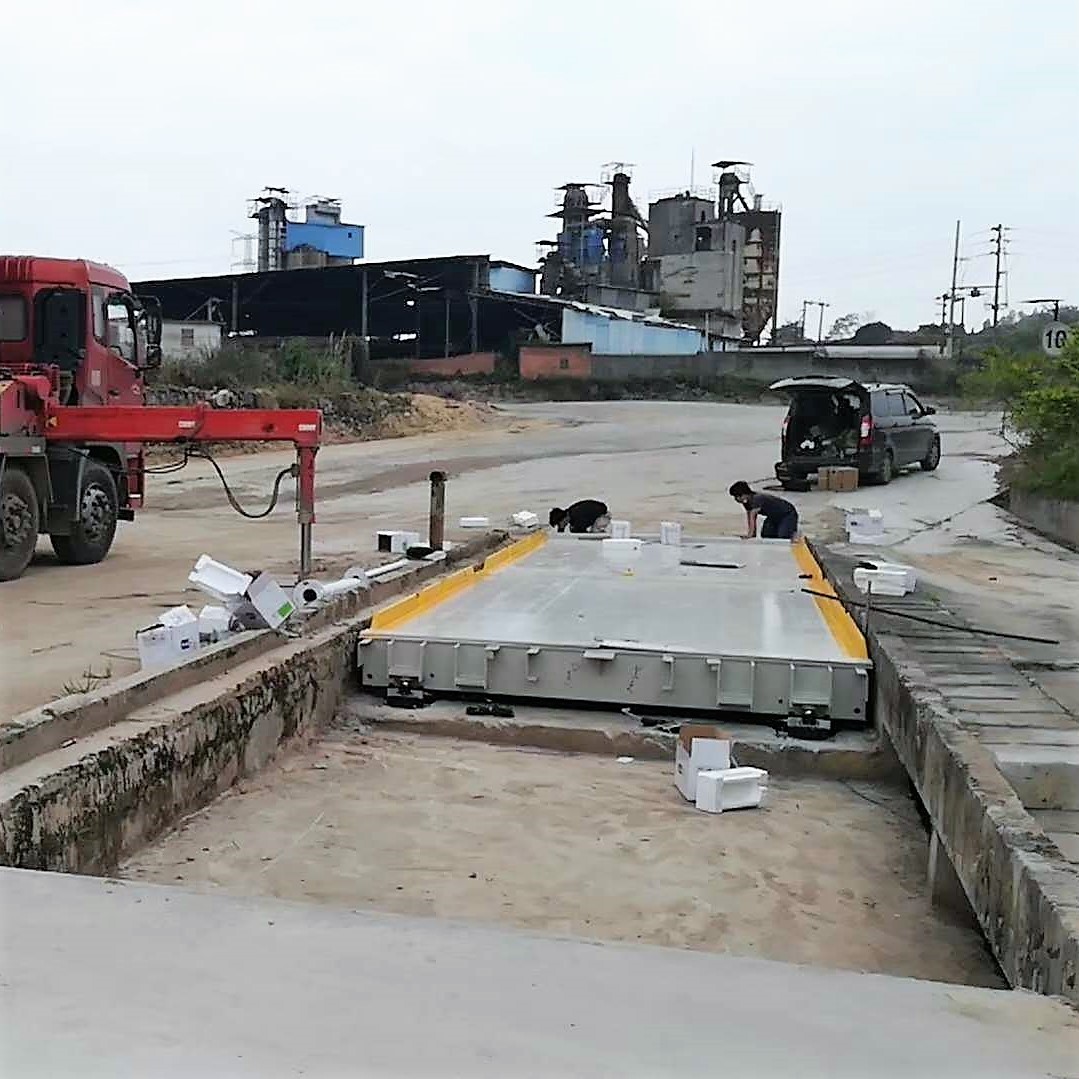

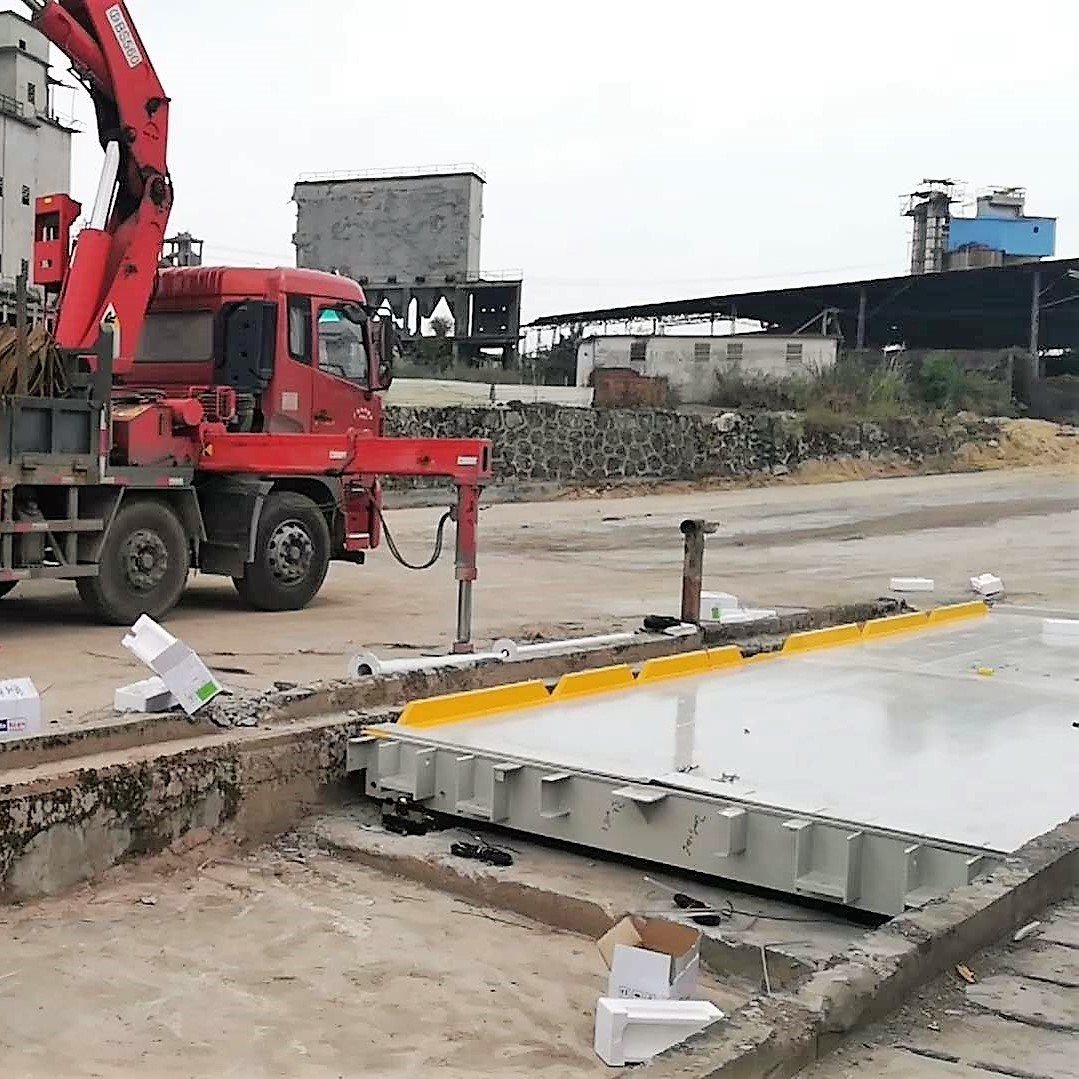

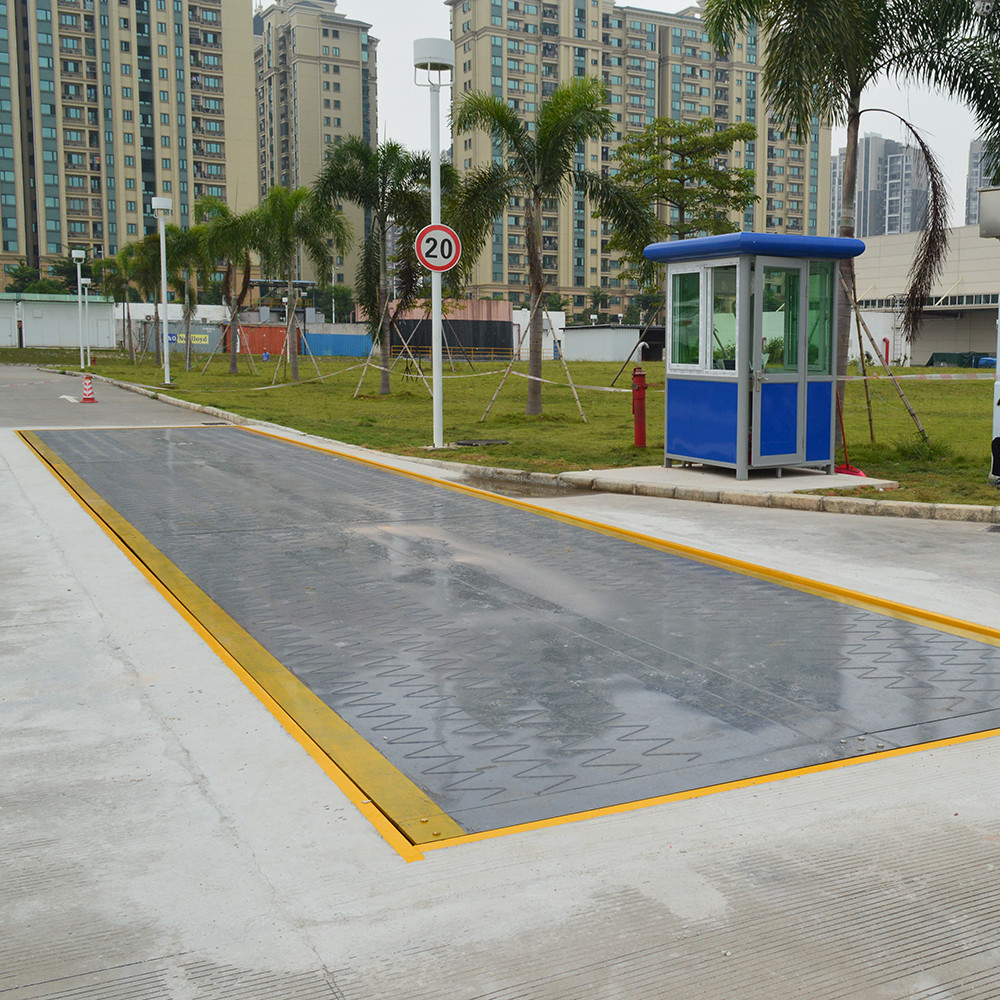

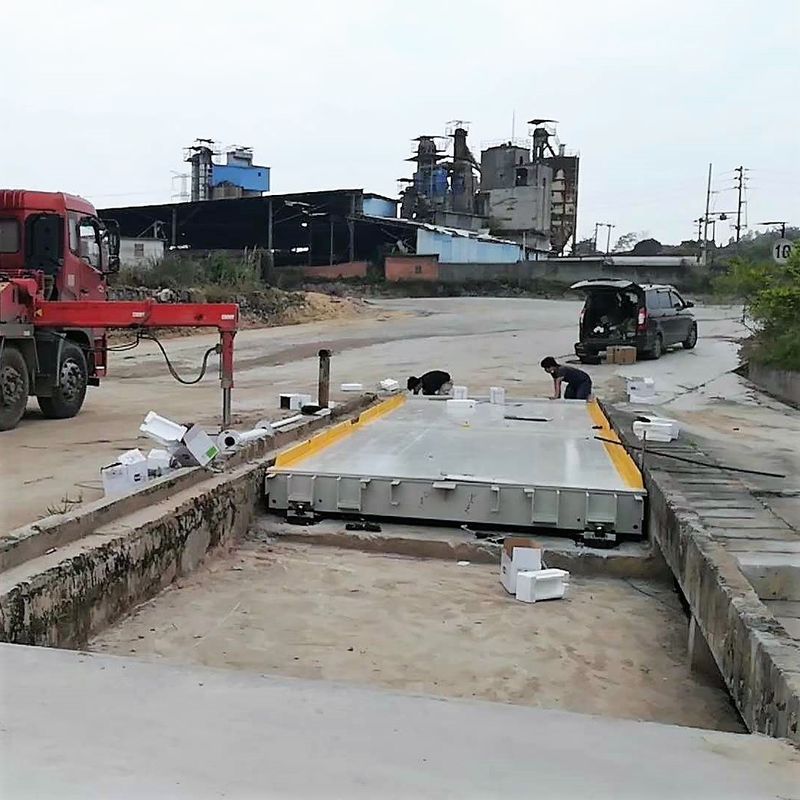

The SCS Truck scale is available in both surface and pit mount designs. Key features include:
Truck Scale Technical Paramater |
|
|---|---|
| Type | Digital truck scale |
| Platfrom size | Customized |
| Platform material | 8, 10, 12, 20mm thickness top steel plate |
| Painting | poxy zinc rich primer and acrylic marine paint |
| Max. Cap | 120Ton |
| Accuracy | 50kg(OIML Ⅲ) |
| Safe over loade | 150%F.S |
| Power supply | 110V+-10%; 220V +-10% AC or DC, 50 or 60Hz |
| Load cell | Digital |
| Weighing indicator | YAOHUA or Keda indicator |
| Interface | RS232 (or RS485), PC, printer, extra scoreboard |
| Working temperture | -10~40ºC(indicator), -30~75ºC(load cell) |
| Working humidity | ≤95% |
| Certificate | CE, OIML, ISO9001:2015 |
Recommended dimension for truck scale platform |
|||||||||
| Capacity(Tons) | 30 | 40 | 50 | 60 | 80 | 100 | 120 | 150 | |
| Division Value | 5KG/10KG/20KG/50KG | ||||||||
| Platform size:L*W(m) | Recommended size | Packing(container) | |||||||
| 3*7 | √ | √ | 1x20'GP | ||||||
| 3*9 | √ | √ | √ | √ | √ | 1x20'GP | |||
| 3*12 | √ | √ | √ | √ | √ | √ | 1x20'GP | ||
| 3*14 | √ | √ | √ | √ | √ | √ | 1x20'GP | ||
| 3*16 | √ | √ | √ | √ | √ | 1x20'GP | |||
| 3*18 | √ | √ | √ | √ | √ | 1x20'GP | |||
| 3*20 | √ | √ | √ | √ | 1x40'GP | ||||
| 3*22 | √ | √ | √ | 1x40'GP | |||||
| 3*24 | √ | √ | 1x40'GP | ||||||
| Remark | Other capacity, size and apprearance can be customized according your requirements. | ||||||||
