Heavy duty Above Ground 3x18m 100ton Truck Scale with Printer

Basic Information
Place of Origin: Guangdong, China
Brand Name: KEDA
Certification: ISO
Model Number: SCS-100T
Minimum Order Quantity: One set
Price: USD6000~12500
Packaging Details: The body of truck weight bridge is nude packed and the accessories are packed in cartons
Delivery Time: 10~25 days
Payment Terms: L/C, T/T
Supply Ability: 100 Set/Sets per Month
Product Name: 100T Truck Scale Material: Q235
Sensor: Digital Type Power: 220V AC Or 9V DC
Accuracy: OIML 3 Safe Overload: 150% F.S
Structure: U-Beam Certificate: CE ISO9001
Interface: RS232 / Printer / PC Place Of Origin: Guangdong, China
Warranty: 12 Month Software: Intelligent Weighing Management System
High Light:

truck weight scale

,

vehicle weight scales

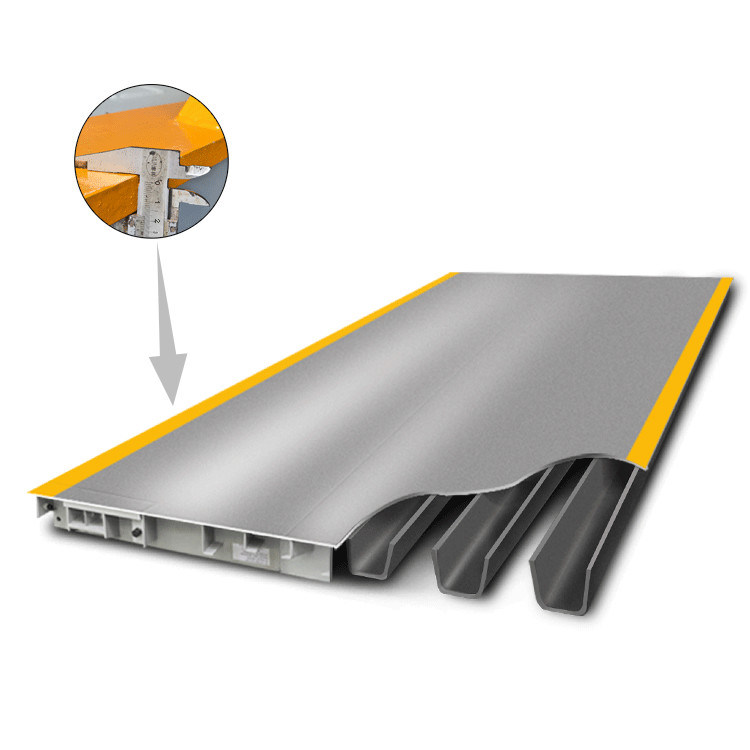

Heavy duty Above Ground 3x18m 100ton Truck Scale with Printer 0

Standard configuration:

Truck scale platform, high accuracy weighing load cells, weight indicator, junction box and shield cable are necessary parts of a basic truck scale printer, scoreboard and computer management system are optional so as to complete the requirements of data management and transmission on the higher level.



The SCS Truck scale is available in both surface and pit mount designs. Key features include:

Truck Scale Technical Paramater

Type Digital truck scale
Platfrom size Customized
Platform material 8, 10, 12, 20mm thickness top steel plate
Painting poxy zinc rich primer and acrylic marine paint
Max. Cap 100Ton
Accuracy 50kg(OIML Ⅲ)
Safe over loade 150%F.S
Power supply 110V+-10%; 220V +-10% AC or DC, 50 or 60Hz
Load cell Digital
Weighing indicator YAOHUA or Keda indicator
Interface RS232 (or RS485), PC, printer, extra scoreboard
Working temperture -10~40ºC(indicator), -30~75ºC(load cell)
Working humidity ≤95%
Certificate CE, OIML, ISO9001:2015

Heavy duty Above Ground 3x18m 100ton Truck Scale with Printer 1

Heavy duty Above Ground 3x18m 100ton Truck Scale with Printer 2

Recommended dimension for truck scale platform

Capacity(Tons) 30 40 50 60 80 100 120 150
Division Value 5KG/10KG/20KG/50KG
Platform size:L*W(m) Recommended size Packing(container)
3*7             1x20'GP
3*9       1x20'GP
3*12     1x20'GP
3*14     1x20'GP
3*16       1x20'GP
3*18       1x20'GP
3*20         1x40'GP
3*22           1x40'GP
3*24             1x40'GP
Remark Other capacity, size and apprearance can be customized according your requirements.

Heavy duty Above Ground 3x18m 100ton Truck Scale with Printer 3

Heavy duty Above Ground 3x18m 100ton Truck Scale with Printer 4

Heavy duty Above Ground 3x18m 100ton Truck Scale with Printer 5

Heavy duty Above Ground 3x18m 100ton Truck Scale with Printer 6

Heavy duty Above Ground 3x18m 100ton Truck Scale with Printer 7
