| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | Keda |
| Certification: | ISO |
| Model Number: | SCS-100T |
| Minimum Order Quantity: | 1 set |
| Price: | USD8500~13500 |
| Packaging Details: | The body of truck weight bridge is nude packed and the accessories are packed in cartons |
| Delivery Time: | 10~25 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 Set/Sets per Month |
| Product Name: | Industrial Truck Scale | Material: | Q235 |
|---|---|---|---|
| Sensor: | Digital Load Cells | Power Supply: | 220V AC Or 9V DC |
| Capacity: | 100 Ton | Accuracy: | 50kg |
| Safe Overload: | 150% | Structure: | U-shape Beams |
| Certificate: | CE ISO9001 OIML | Interface: | RS232C/485 / Printer / PC /Scoreboard |
| Place Of Origin: | Guangdong, China | Warranty: | 1 Year |
| High Light: | public weigh scales,vehicle weight scales |
||
Standard configuration of KEDA Industrial Truck Scale:

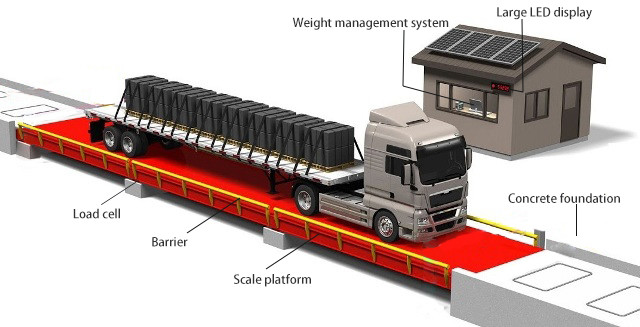

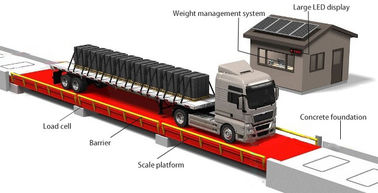

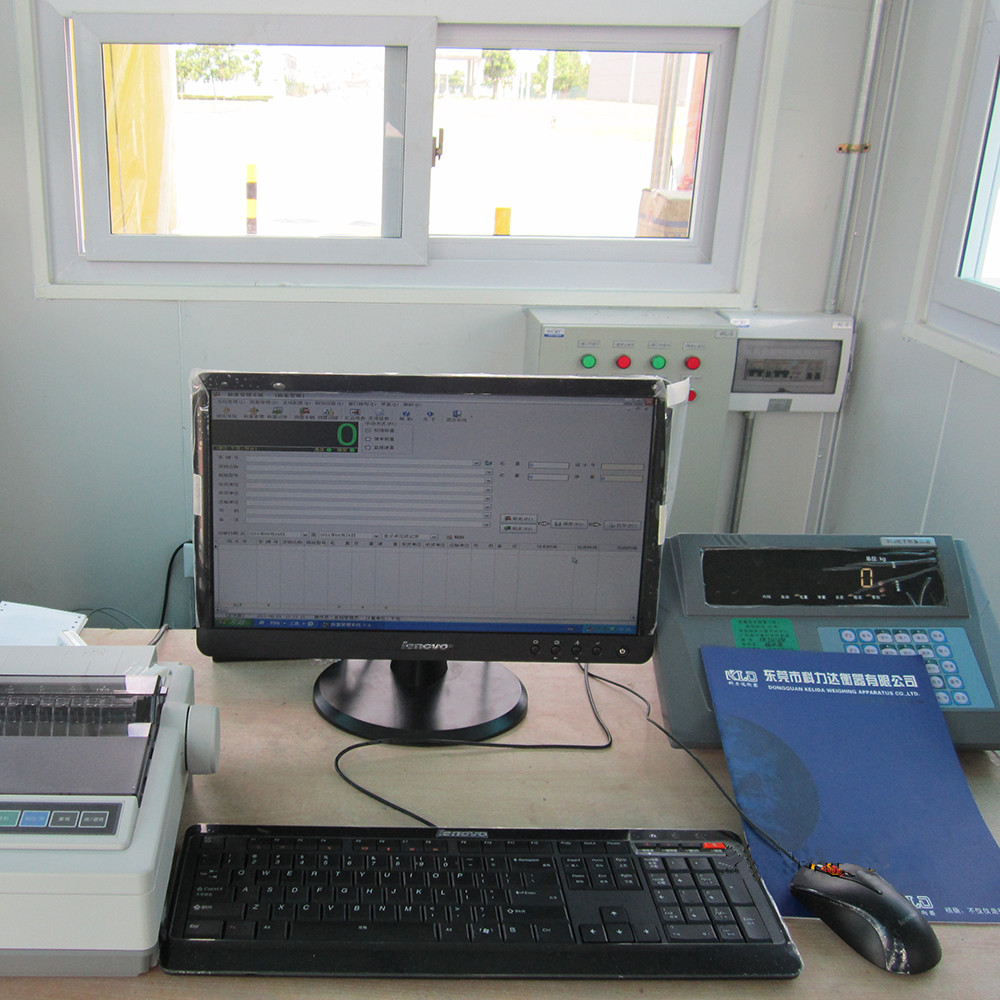

Truck scale platform, high accuracy weighing load cells, weight indicator, junction box and shield cable are necessary parts of a basic truck scale. Printer, scoreboard and computer management system are optional so as to complete the requirements of data management and transmission on the higher level.

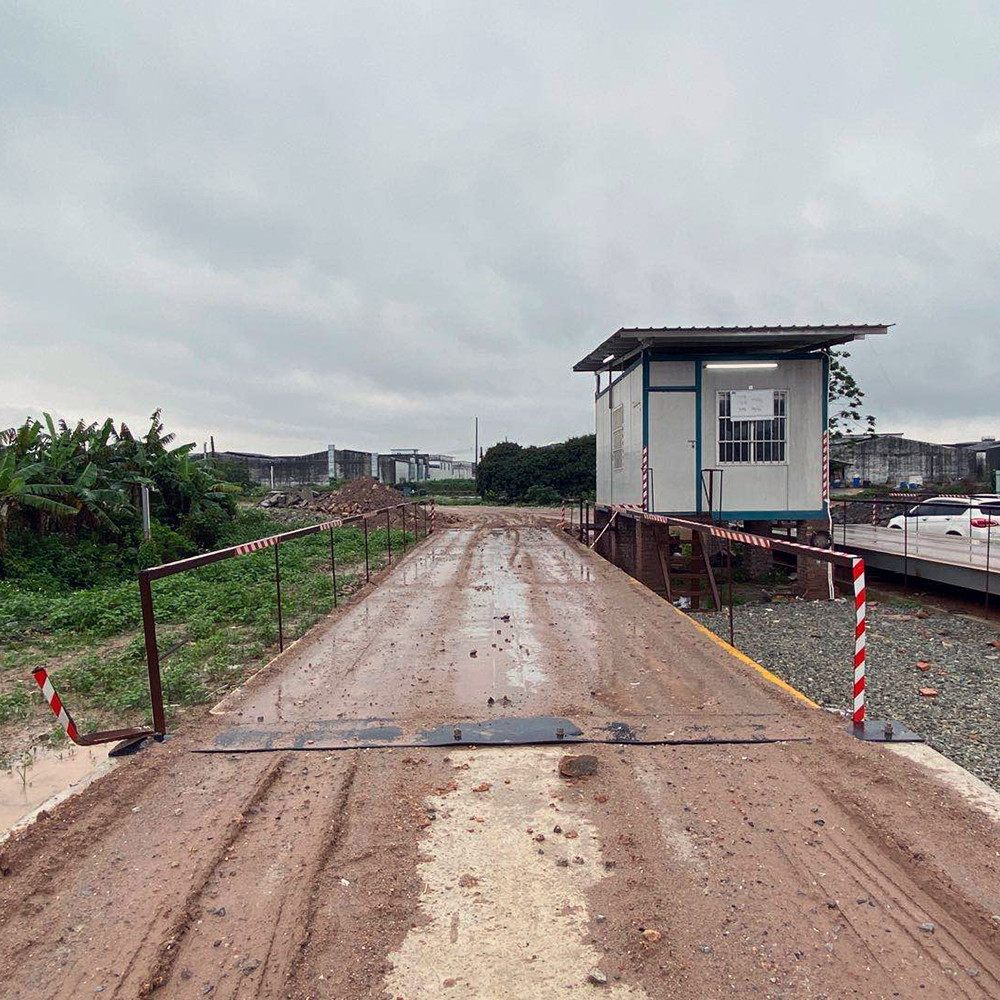

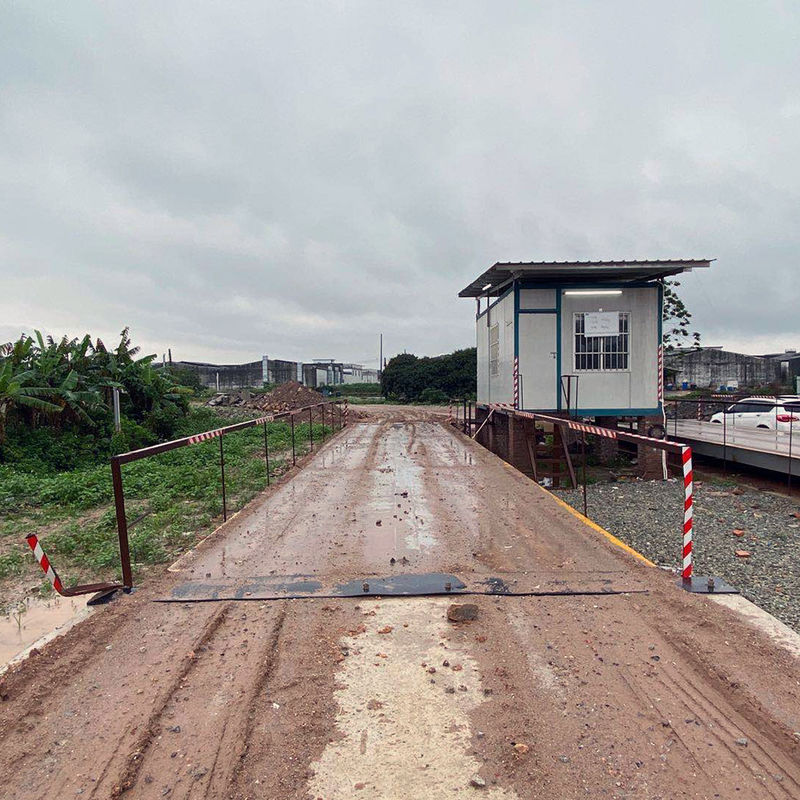

The SCS Truck scale is available in both surface and pit mount designs. Key features include:
KEDA Industrial Truck Scale Technical Paramater |
|
|---|---|
| Type | Digital type |
| Platfrom size | From 6m to 24m |
| Platform material | 8-20mm thickness top steel plate |
| Painting | poxy zinc rich primer and acrylic marine paint |
| Max. Cap | 70 ton |
| Accuracy | 20kg (OIML Ⅲ) |
| Safe over loade | 150%F.S |
| Power supply | 110V+-10%; 220V +-10% AC or DC, 50 or 60Hz |

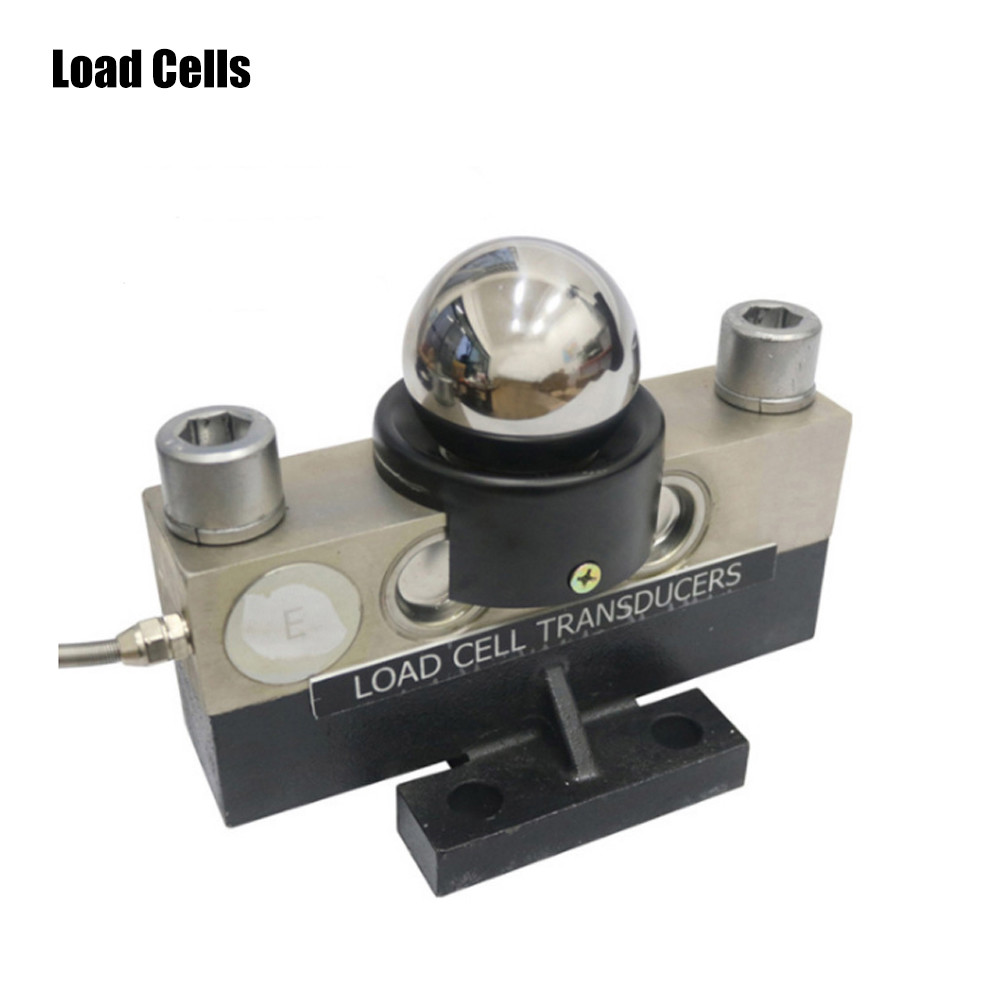

| Load cell | Keli digital load cell or ZEMIC digital load cell |

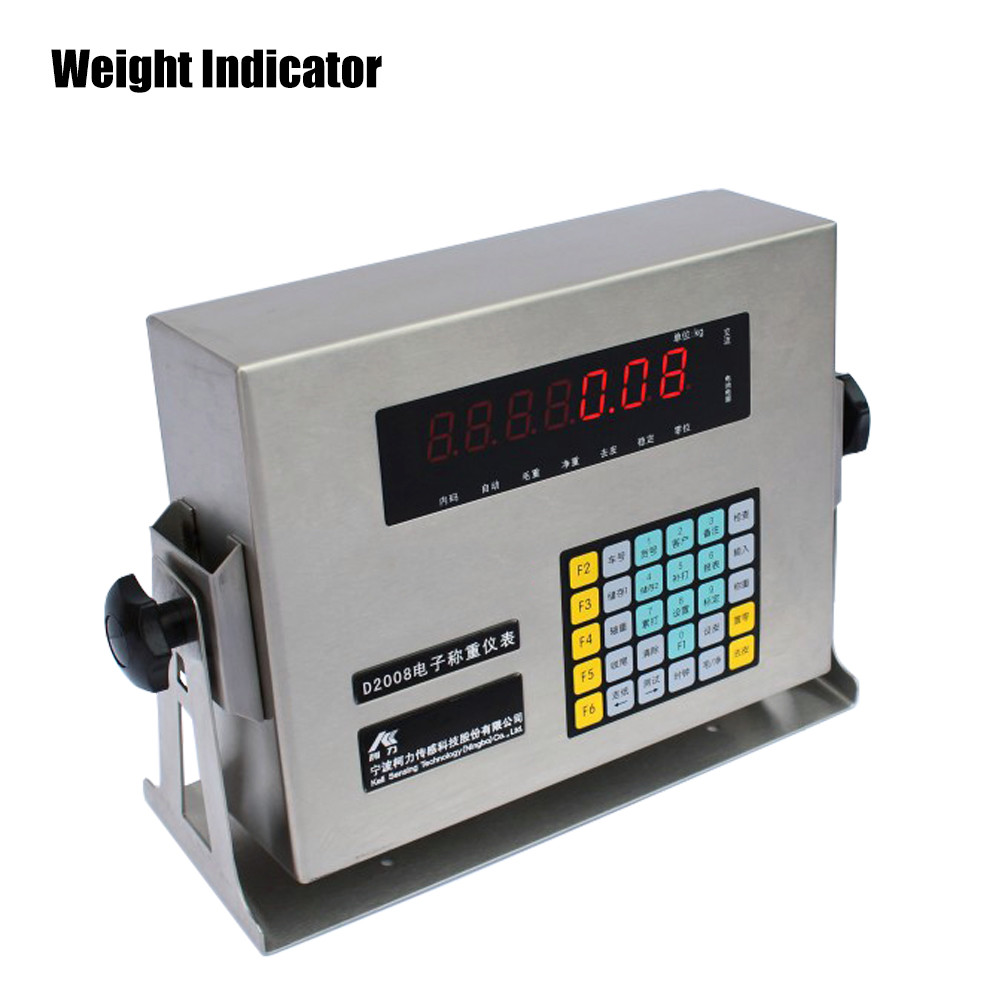

| Weighing indicator | YAOHUA or Keda indicator |
| Interface | RS232 (or RS485), PC, printer, extra scoreboard |
| Working temperture | -10~40ºC(indicator), -30~75ºC(load cell) |
| Working humidity | ≤95% |
| Certificate | CE, OIML, ISO9001:2015 |
Recommended dimension for KEDA truck scale platform |
|||||||||
| Capacity(Tons) | 30 | 40 | 50 | 60 | 80 | 100 | 120 | 150 | |
| Division Value | 5KG/10KG/20KG/50KG | ||||||||
| Platform size:L*W(m) | Recommended size | Packing(container) | |||||||
| 3*7 | √ | √ | 1x20'GP | ||||||
| 3*9 | √ | √ | √ | √ | √ | 1x20'GP | |||
| 3*12 | √ | √ | √ | √ | √ | √ | 1x20'GP | ||
| 3*14 | √ | √ | √ | √ | √ | √ | 1x20'GP | ||
| 3*16 | √ | √ | √ | √ | √ | 1x20'GP | |||
| 3*18 | √ | √ | √ | √ | √ | 1x20'GP | |||
| 3*20 | √ | √ | √ | √ | 1x40'GP | ||||
| 3*22 | √ | √ | √ | 1x40'GP | |||||
| 3*24 | √ | √ | 1x40'GP | ||||||
| Remark | Other capacity, size and apprearance can be customized according your requirements. | ||||||||
