High Accurate 60T 80T 100T Electronic Digital Truck Weight Scale

Basic Information
Place of Origin: Guangdong, China
Brand Name: Keda
Certification: ISO
Model Number: SCS-100T
Minimum Order Quantity: 1 set
Price: USD8500~13500
Packaging Details: The body of truck weight bridge is nude packed and the accessories are packed in cartons
Delivery Time: 10~25 days
Payment Terms: L/C, T/T
Supply Ability: 100 Set/Sets per Month
Product Name: Industrial Truck Scale Material: Q235
Sensor: Digital Load Cells Power Supply: 220V AC Or 9V DC
Capacity: From 30T To 100T Accuracy: 50kg
Safe Overload: 150% Structure: U-shape Beams
Certificate: CE ISO9001 OIML Interface: RS232C/485 /Printer /PC /Scoreboard
Place Of Origin: Guangdong, China Warranty: 1 Year
High Light:

truck weight scale

,

vehicle weight scales

High Accurate 60T 80T 100T Electronic Digital Truck Weight Scale 0

Standard configuration of KEDA Industrial Truck Scale:

Truck scale platform, high accuracy weighing load cells, weight indicator, junction box and shield cable are necessary parts of a basic truck scale. Printer, scoreboard and computer management system are optional so as to complete the requirements of data management and transmission on the higher level.



The SCS Truck scale is available in both surface and pit mount designs. Key features include:

KEDA Industrial Truck Scale Technical Paramater

Type Digital type
Platfrom size From 6m to 24m

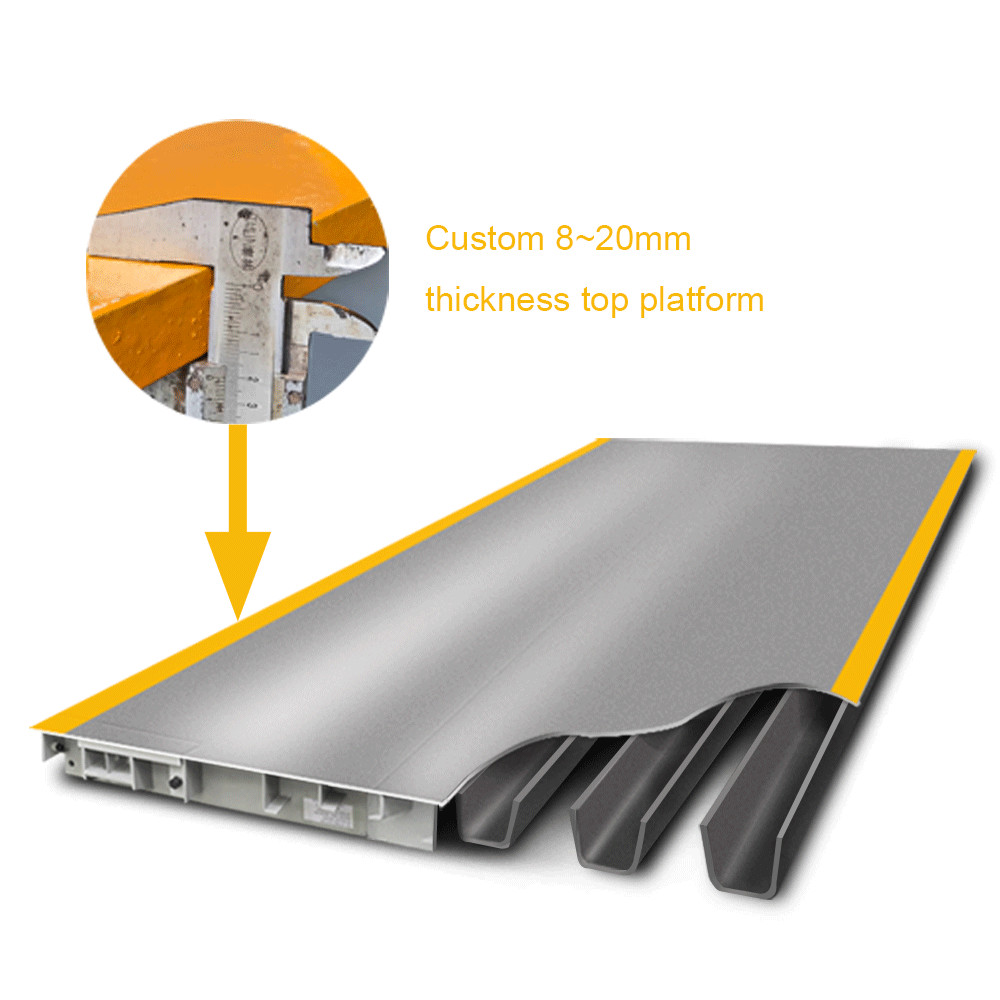

Platform material 8-20mm thickness top steel plate
Painting poxy zinc rich primer and acrylic marine paint
Max. Cap From 30T to 100T
Accuracy OIML Ⅲ
Safe over loade 150%F.S
Power supply 110V+-10%; 220V +-10% AC or DC, 50 or 60Hz
Load cell Keli digital load cell or ZEMIC digital load cell
Weighing indicator YAOHUA or Keda indicator
Interface RS232 (or RS485), PC, printer, extra scoreboard
Working temperture -10~40ºC(indicator), -30~75ºC(load cell)
Working humidity ≤95%
Certificate CE, OIML, ISO9001:2015

High Accurate 60T 80T 100T Electronic Digital Truck Weight Scale 1

High Accurate 60T 80T 100T Electronic Digital Truck Weight Scale 2

Recommended dimension for KEDA truck scale platform

Capacity(Tons) 30 40 50 60 80 100 120 150
Division Value 5KG/10KG/20KG/50KG
Platform size:L*W(m) Recommended size Packing(container)
3*7             1x20'GP
3*9       1x20'GP
3*12     1x20'GP
3*14     1x20'GP
3*16       1x20'GP
3*18       1x20'GP
3*20         1x40'GP
3*22           1x40'GP
3*24             1x40'GP
Remark Other capacity, size and apprearance can be customized according your requirements.

High Accurate 60T 80T 100T Electronic Digital Truck Weight Scale 3

High Accurate 60T 80T 100T Electronic Digital Truck Weight Scale 4

High Accurate 60T 80T 100T Electronic Digital Truck Weight Scale 5

High Accurate 60T 80T 100T Electronic Digital Truck Weight Scale 6

High Accurate 60T 80T 100T Electronic Digital Truck Weight Scale 7
