Place of Origin: | Guangdong, China |
---|---|
Brand Name: | KEDA |
Certification: | ISO CE |
Model Number: | SCS-60T |
Minimum Order Quantity: | 1 set |
Price: | USD9800~14500 |
Packaging Details: | The platform of weighbridge is nude packed and the accessories are packed in cartons or wooden box |
Delivery Time: | 10~25 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 200 Set/Sets per Month |
Features: | High Precision And Stable Performance | Product Name: | Industrial Weighbridge |
---|---|---|---|
Power Supply: | 220V/50HZ, AC/DC | Display Type: | KELI D2008H |
Type: | Digital Type | Capacity: | 60T |
Accuracy: | 10KG | Overload Protection: | 150%F.S |
Material: | 8~20mm Steel Q235 | Structure: | U Beam Girders With 6pcs And 6mm Thickness |
Load Cell: | KELI Or Zemic With OMIL Certificated | Use: | Heavy Goods |
Item: | Weighbridge | Display: | LED/LCD |
Warranty: | 1 Year | ||
High Light: | vehicle weight scales,electronic truck scale |

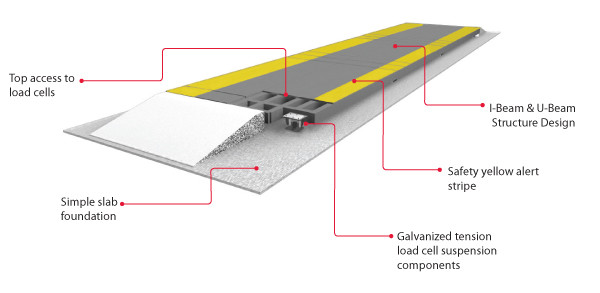

ZEMIC Load Cells Computerised Digital Pitless weighbridge 60 tons price
Why choose our industrial weighbirdge?
More than 1000 Keda weighbridge had live through kinds of verifications. Their high quality had win customers trust. Now they are widely used in leather, steel, coal, grain, ceramic, chemical, dock and other industries.
Standard configuration of Industrial Weighbridge:
Weighbridge platform, high accuracy weighing load cells, weighing indicator, junction box and shield cable are necessary parts of one set weighbridge truck scale. Printer, scoreboard and computer management system are optional so as to complete the requirements of data management and transmission on the higher level.
The outside frame use professional sections;
The inside use double fabric reinforcement;
Use latch plate type connecting way;
Use high capacity electronic weighing load cell;
High anticorrosion strength, suitable for damp land near the sea and the area that corroded by chemicals long -Service of life;
Lightning stroke resistant, avoid the possible damage caused by lighting stroke;
Long term stability, can be used more than 10 years;
Weighbridge Technical Paramater | |
Type | Digital Weighbridge |
Platfrom size | Length: 6~21m, width: 3~3.5m |
Platform material | 8-20mm thickness top steel plate |
Painting | poxy zinc rich primer and acrylic marine paint |
Max. Cap | From 30 ton to 150 ton |
Accuracy | OIML Ⅲ stardard |
Safe over loade | 150%F.S |
Power supply | 110V+-10%; 220V +-10% AC or DC, 50 or 60Hz |
Load cell | Keli digital load cell or ZEMIC digital load cell |
Weighing indicator | YAOHUA or Keda indicator |
Working temperture | -10~40ºC(indicator), -30~75ºC(load cell) |
Working humidity | ≤95% |
Certificate | CE, OIML, ISO9001:2015 |
