| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | KEDA |
| Certification: | ISO CE |
| Model Number: | SCS-60T |
| Minimum Order Quantity: | 1 set |
| Price: | USD9800~14500 |
| Packaging Details: | The platform of weighbridge is nude packed and the accessories are packed in cartons or wooden box |
| Delivery Time: | 10~25 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Set/Sets per Month |
| Features: | High Precision And Stable Performance | Product Name: | Industrial Weighbridge |
|---|---|---|---|
| Power Supply: | 220V/50HZ, AC/DC | Display Type: | KELI Or YAOHUA |
| Type: | Digital Type | Capacity: | 60 Ton |
| Accuracy: | 10KG | Overload Protection: | 150%F.S |
| Material: | 8~20mm Steel Q235 | Structure: | U Beam Girders With 6pcs And 6mm Thickness |

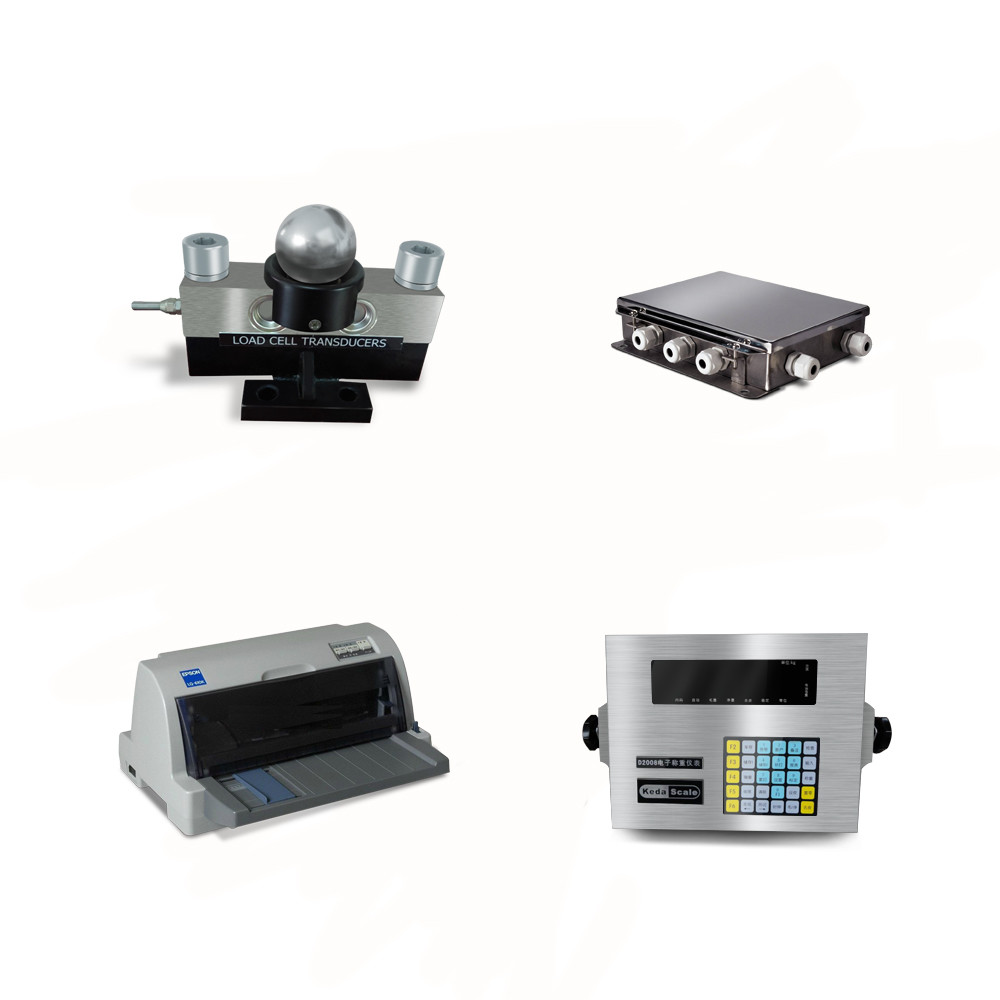

| Load Cell: | KELI Or Zemic With OMIL Certificated | Use: | Heavy Goods |
| Item: | Weighbridge | Display: | LED/LCD |
| Warranty: | 1 Year | ||
| High Light: | vehicle weight scales,electronic truck scale |
||
Strong transmission signal and no interference
Reduced unbalanced loading due to temperature and creeping due to time
Auto-diagnosis on failure,error code prompt function,very convenient in calibration and repair
Digital signal transmission avoiding man-made interference and cheating
PCB in the sensor has a lightening-protection design,prevents the lightening-protection of the whole system
| Technical parameter | |
|---|---|
| Accuracy class | OMIL III |
| Weighing range | 10~150(t) |
| Safe overload | 150%F.S |
| Material | Q235 |
| Thickness | 8, 10, 12, 14mm (optional) |
|
Structure |
U shape bridge construction stucture (6mm thickness) |
|
Painting |
Anti rust and anti corrosion painting |
| Length | 5~24(m) |
| Width | 3m,3.2m,3.5m,4m |
| Safe overload | 150%Max |
| Input voltage | 110V±10%~220V±10%,AC |
| Input power frequency | 50Hz,60Hz |
| Power consumption | 12V,DC |
| Printer interface | compatible parallel port |
| Relative humidity | <95% |
| Working temperature |
indicatior: -10+45 centigrade weighing platform and load cell: -30+65 centigrade |
Communication interface RS485 and RS232 (PC)
Error information indication
EMC protection measurement
Auto-corner adjustment and manually corner adjustment function
Printing: standard parallel print interface; filled type bill format can be optional
Memory: able to save 256 vehicle ID and corresponding tare eight, 256 weighing records
Two-stage division, two-stage capacity can be selected
Non-linearity calibration function, daily report printing; timing turn off function
Separate calibration of the design and operation parameters
Time: auto leap year, leap month, can display year/month/date/hour/minute/second
Display: 6 bits VFD, 6 state indication symbols
Keyboard: Data key: 0~9; function key: 20 pieces (9 of them are same as data key)
Scoreboard screen display interface: serial output mode and current loop, 11 bits binary number, 600 baud rate
