| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | Keda |
| Certification: | ISO |
| Model Number: | SCS-100T |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiated price |
| Packaging Details: | The platform of truck bridge is nude packed and the accessories are packed in cartons |
| Delivery Time: | 10~25 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 Set/Sets per Month |
| Size: | 3x18m | Capacity: | 50 Ton |
|---|---|---|---|
| Accuracy: | 10kg | Safe Overload: | 150% F.S |
| Power Supply: | 220V AC Or 9V DC | Material: | Q235 Steel |
| Structure: | U-Beams | Load Cells: | Keli Or Zemic Load Cell |
| High Light: | truck weight scale,public weigh scales |
||
weighing platform, high accuracy weighing load cell and weighing indicator. Printer, scoreboard and computer management system are optional so as to complete the requirements of data management and transmission on the higher level.

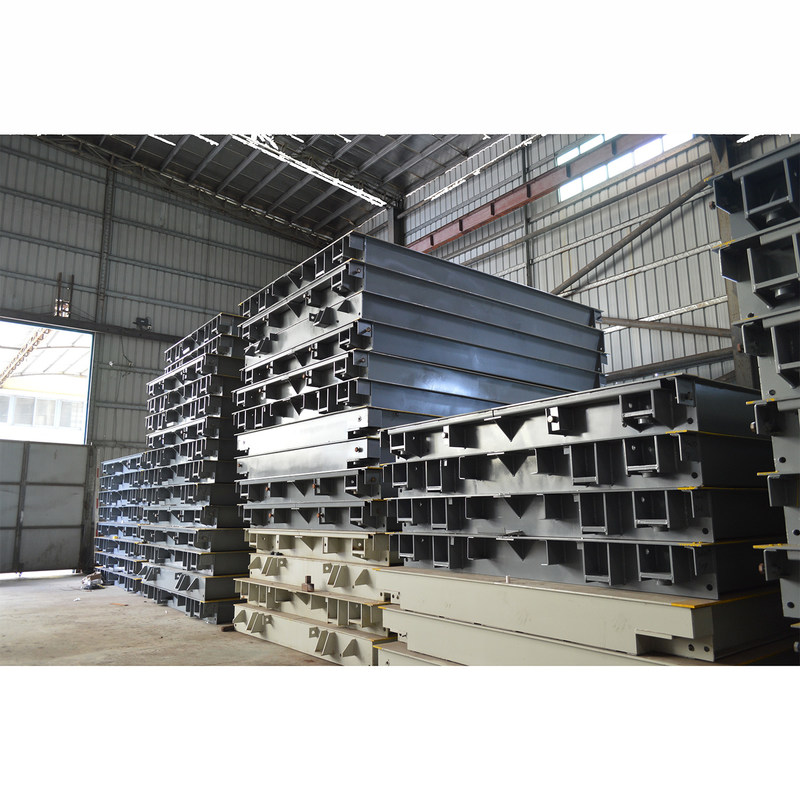

1. Use U-shape beam structure, scientific and reasonable, strong and durable;
2. Undersurface uses high quality antirust paint so as to increase its service life;
3. Modular, sealed cavity, anticorrosion, convenient installation.
1. use imported A/D conversion chip, which has rich practical experience in the market;
2. high resolution, can reach 1/500000;
3. self fault diagnosis function and tare two-way recovery function;
4. battery indication and low battery protection;
5. can use single-layer, duplex and three-ply weight list, can be equipped with weighing software and connected to the computer.
| Weighing load cell | Cantilever beam type | Bridge type | Colum type |
| Rated load(t) | 0.5,1,2,5,10,20 | 10,15,20,25,30,40,50 | 20,30,50 |
| Rated output(m/v) | 2±0.01 | 2±0.01 | 1.0±0.04 |
| Input resistance(Ω) | 400±5 | 750±5 | 450±5 |
| Output resistance(Ω) | 351±1 | 700±1 | 350±5 |
| Non-repeatability(%FS) | ±0.02 | ±0.02 | ±0.02 |
| Recommended excitation(V) | 10DC | 10DC | 10DC |
| Width(m) | Weighing platform length(m) | |||||||||
| 7 | 9 | 10 | 12 | 14 | 15 | 16 | 18 | 20 | 21 | |
| 3 | * | * | * | * | * | |||||
| 3.2 | * | * | * | |||||||
| 3.4 | * | * | * | * | ||||||
| Our company accepts special specification order. * represents optimal specifications. | ||||||||||
| Model: SCS-60T | Maximum weighing(T): 60 | Division value(kg): 10, 20 | ||||||||
