| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | KEDA |
| Certification: | ISO9001:2018 |
| Model Number: | SCS-50T |
| Minimum Order Quantity: | 1 set |
| Price: | Negi |
| Packaging Details: | The platform of weighbridge is nude packed and other electronic accessories is packed by carton box or wooden case. |
| Delivery Time: | 10~25 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 sets per month |
| Product Name: | Weighbridge | Model: | SCS-50 |
|---|---|---|---|
| Platform Size: | Custom | Material: | Q235 Steel |
| Capacity: | 50 Ton | Accuracy: | 5/10kg |
| Accuracy Class: | OIML 3 | Warranty: | 12 Months |
| High Light: | public weigh scales,vehicle weight scales |
||

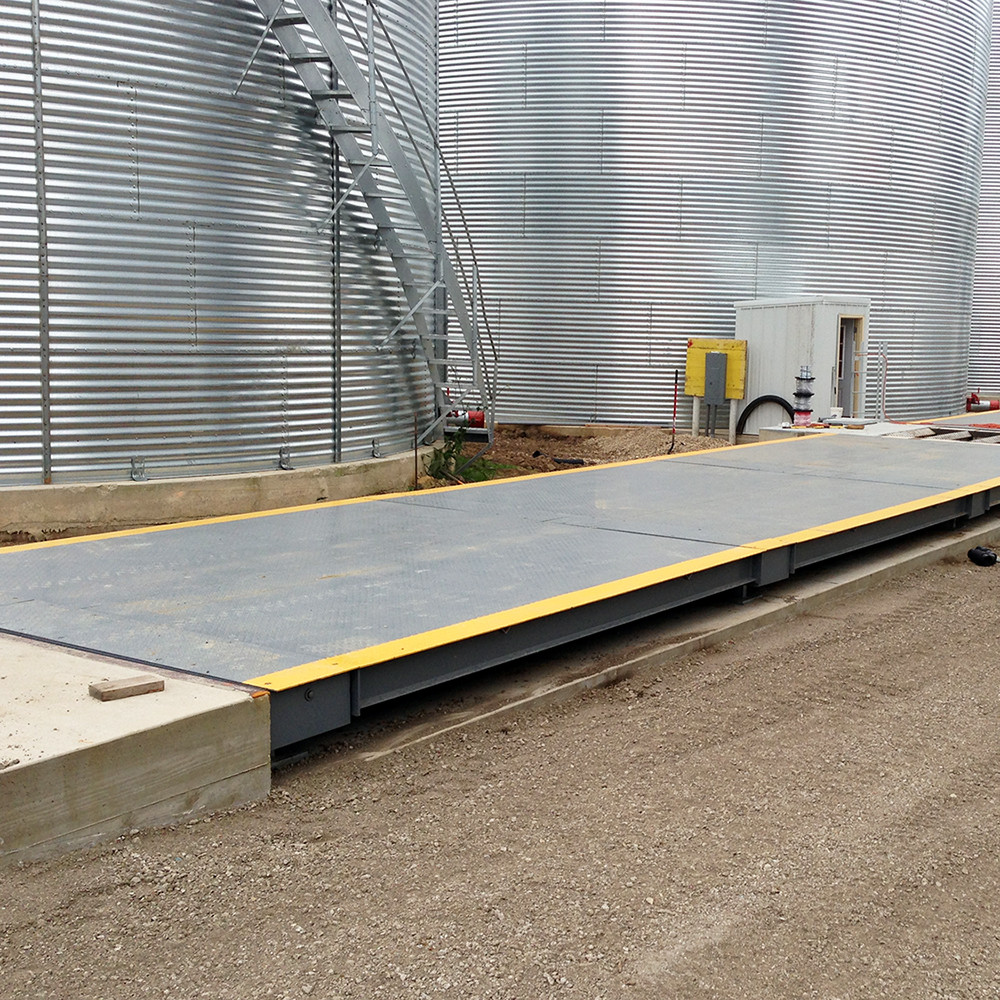

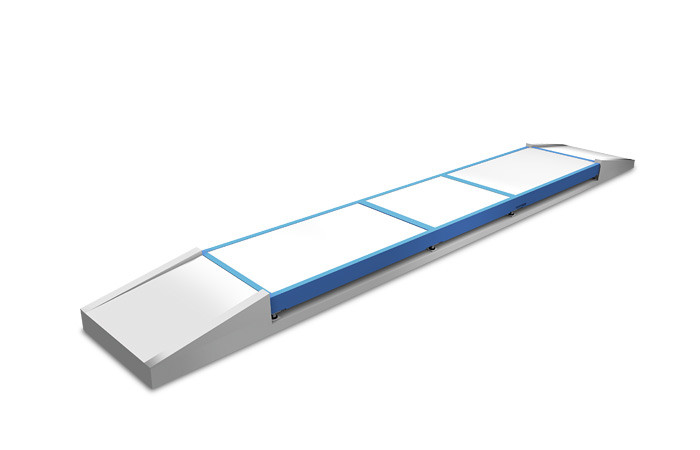

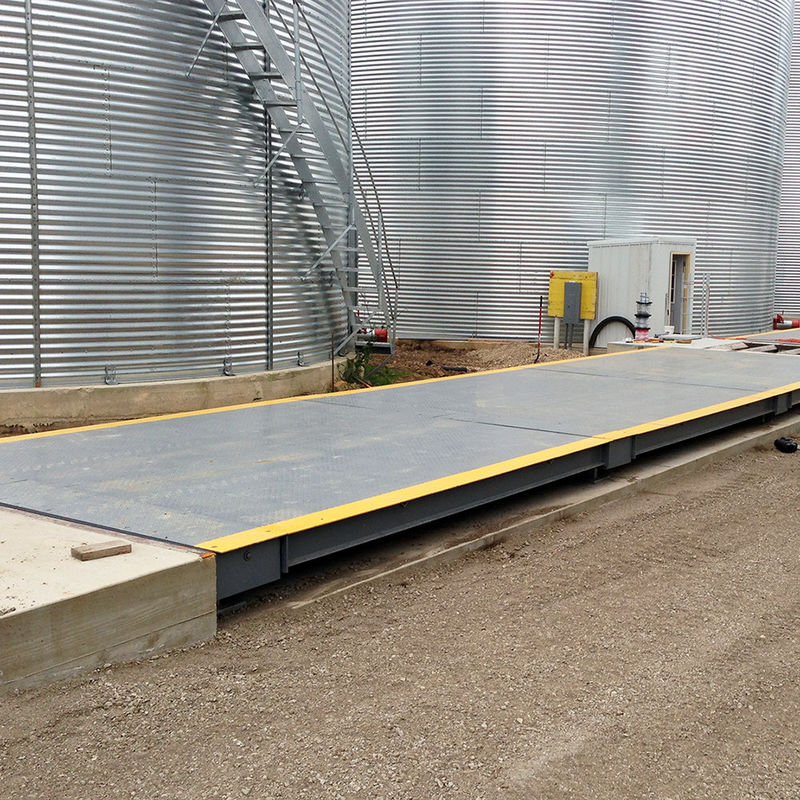

5/10KG Accuracy 50 Ton Electronic Digital Dynamic Weighbridge
The export truck scale is developed in consideration of the restrictions on the size of the electronic vehicle weigher by sea freight container transportation. It has the advantages of convenient assembly, simple structure without affecting the strength, fastness and accuracy of the weighing body, and the products are suitable for factories and freight yards, Warehousing, ports, mines, granaries, purchase stations, sites and other goods in and out metering, but also for ultra-wide transport restrictions in the market.
| Plate Material | Q235 carbon steel, 8/10/12mm steel plate is optional |
| Indicator/Display | Analog A9, A9P optional(OIML&CE approved), Digital Yaohua DS10 or DS8 and Keli D2008H |
| Load Cells | Keli or Zemic bridge type digital load cells |
| Display Designators | On/Off, Zero, Tare, kg/lb. |
| Transmission Distance | RS232C≤30m |
| Power Supply | Rechargeable Battery, AC 220V;50Hz (-2%~+2%), DC 12V/7AH |
| Junction box | Anti-surge junction box, 4, 6,8,10,12-wire are optional, adapt to all weighing systems |
| Signal cable | 20m single shielded 4-core cable, can't cut when use otherwise will effect accurate |
| Color | Standard color |
|
Recommended dimension for KEDA truck scale platform |
|||||||||
| Capacity(Tons) | 30 | 40 | 50 | 60 | 80 | 100 | 120 | 150 | |
| Division Value | 5KG/10KG/20KG/50KG | ||||||||
| Platform size:L*W(m) | Recommended size | Packing(container) | |||||||
| 3*7 | √ | √ | 1x20'GP | ||||||
| 3*9 | √ | √ | √ | √ | √ | 1x20'GP | |||
| 3*12 | √ | √ | √ | √ | √ | √ | 1x20'GP | ||
| 3*14 | √ | √ | √ | √ | √ | √ | 1x20'GP | ||
| 3*16 | √ | √ | √ | √ | √ | 1x20'GP | |||
| 3*18 | √ | √ | √ | √ | √ | 1x20'GP | |||
| 3*20 | √ | √ | √ | √ | 1x40'GP | ||||
| 3*22 | √ | √ | √ | 1x40'GP | |||||
| 3*24 | √ | √ | 1x40'GP | ||||||
| Remark | Other capacity, size and apprearance can be customized according your requirements. | ||||||||
