| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | KEDA |
| Certification: | ISO9001:2018 |
| Model Number: | SCS-60T |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiated price |
| Packaging Details: | The platform of truck scale is nude packed and other electronic accessories is packed by carton box or wooden case. |
| Delivery Time: | 10~25 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 sets per month |
| Product Name: | Truck Load Scales | Platform Size: | Custom |
|---|---|---|---|
| Material: | Q235 Steel | Display: | LED |
| Capacity: | 30 To 120 Ton Available | Accuracy: | 5/10/20kg |
| Accuracy Class: | OIML 3 | Warranty: | 12 Months |
| High Light: | truck weight scale,vehicle weight scales |
||
SCS Digital Computerised Weighbridge / Computerised Truck Scale
We offer a range of high accurate Mechanical Weigh Bridge, which is popular for its sturdy construction and operations. Available in customized options, our weighing bridge is ideally used for measuring the weight of the truck. These are manufactured from quality raw material and are quality tested on well-defined parameters before being delivered to our clients. These Electronic Computerized Weigh Bridge are manufactured from quality raw material and are quality tested on well-defined parameters before being delivered to our clients.
Weigh bridge resistance strain digital sensor, good moisture proof seal, adapt to any bad working environment
intelligent instrument with many display function and mass storage volume, standard serial output, strong extended function
modular weighing platform, U type steel structure, high solidity, good interchangeable function, can be equipped with computer management system
multi-functional weighing measurement system
| Plate Material | Q235 carbon steel, 8/10/12mm steel plate is optional |
| Indicator/Display | Analog A9, A9P optional(OIML&CE approved), Digital Yaohua DS10 or DS8 and Keli D2008H |

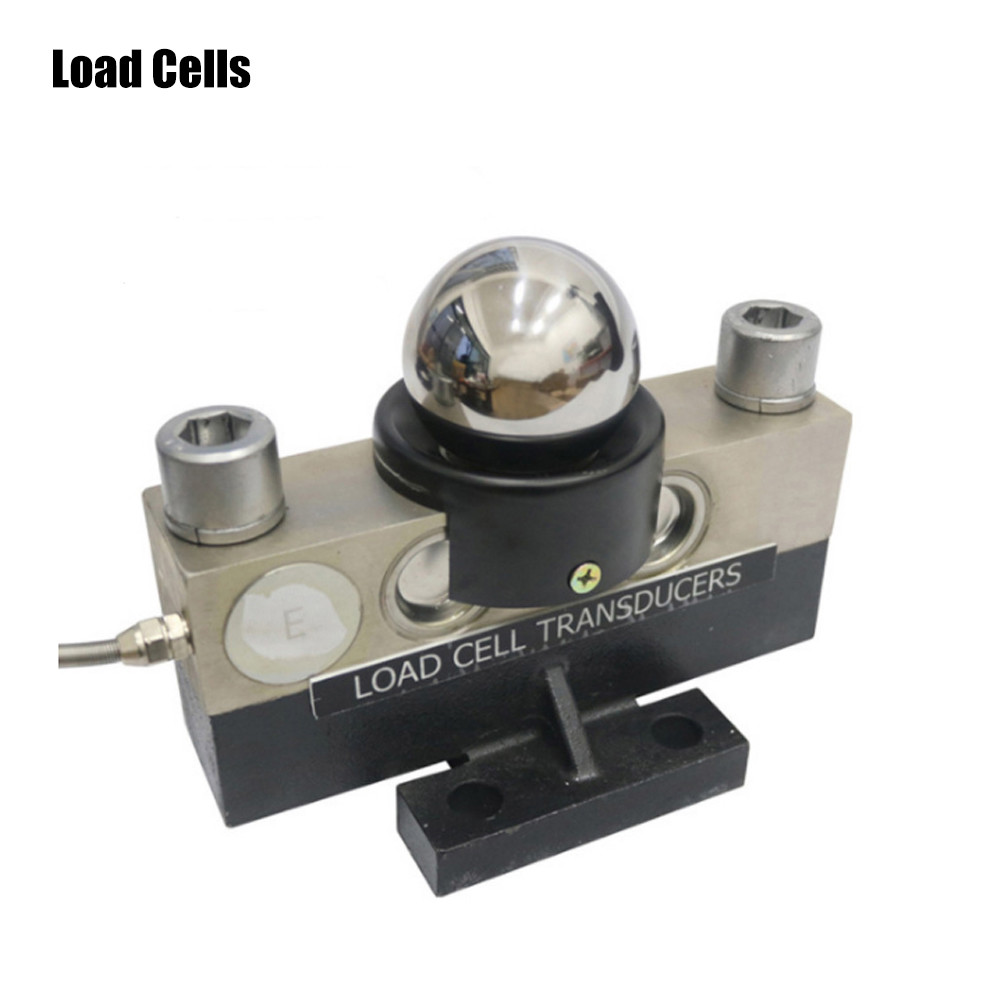

| Load Cells | Keli or Zemic bridge type digital load cells |
| Display Designators | On/Off, Zero, Tare, kg/lb. |
| Transmission Distance | RS232C≤30m |
| Power Supply | Rechargeable Battery, AC 220V;50Hz (-2%~+2%), DC 12V/7AH |
| Junction box | Anti-surge junction box, 4, 6,8,10,12-wire are optional, adapt to all weighing systems |
| Signal cable | 20m single shielded 4-core cable, can't cut when use otherwise will effect accurate |
| Color | Standard color |
|
Recommended dimension for KEDA truck scale platform |
|||||||||
| Capacity(Tons) | 30 | 40 | 50 | 60 | 80 | 100 | 120 | 150 | |
| Division Value | 5KG/10KG/20KG/50KG | ||||||||
| Platform size:L*W(m) | Recommended size | Packing(container) | |||||||
| 3*7 | √ | √ | 1x20'GP | ||||||
| 3*9 | √ | √ | √ | √ | √ | 1x20'GP | |||
| 3*12 | √ | √ | √ | √ | √ | √ | 1x20'GP | ||
| 3*14 | √ | √ | √ | √ | √ | √ | 1x20'GP | ||
| 3*16 | √ | √ | √ | √ | √ | 1x20'GP | |||
| 3*18 | √ | √ | √ | √ | √ | 1x20'GP | |||
| 3*20 | √ | √ | √ | √ | 1x40'GP | ||||
| 3*22 | √ | √ | √ | 1x40'GP | |||||
| 3*24 | √ | √ | 1x40'GP | ||||||
| Remark | Other capacity, size and apprearance can be customized according your requirements. | ||||||||
