| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | Keli |
| Certification: | ISO CE OIML |
| Model Number: | SQB-1T |
| Minimum Order Quantity: | 20PCS |
| Price: | USD35~55 |
| Delivery Time: | 10~25 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50000 Set/Sets per Month |

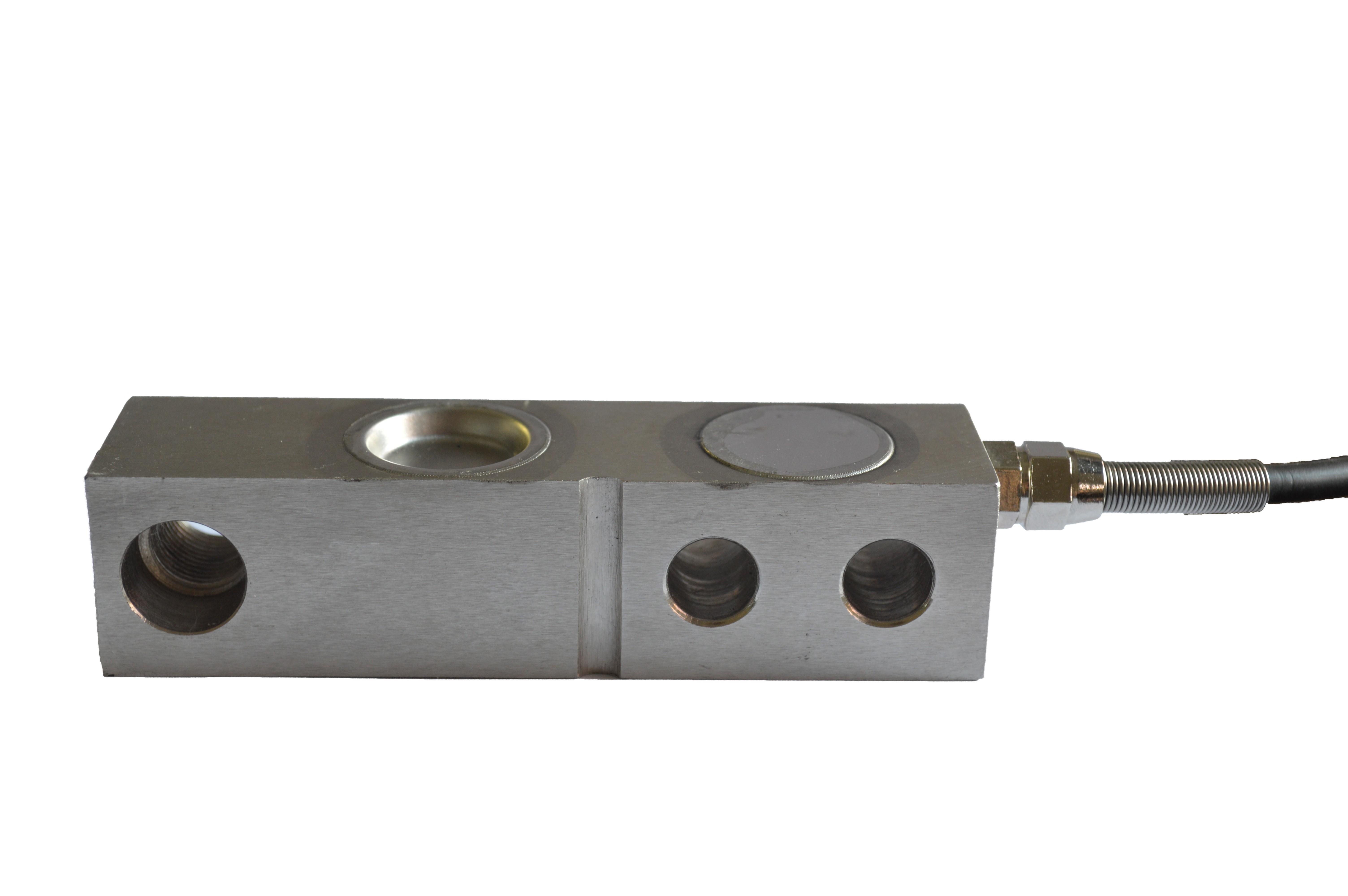

| Type: | Shear Beam Load Cell | Material: | Alloy Steel |
|---|---|---|---|
| Product Name: | Micro Load Cell | Capacity: | 1000kg |
| Safe Overload: | 120%FS | Application: | Floor Scale / Platform Scale |
| Accuracy Class: | OIML C3 | Output: | Digital |
| High Light: | weighbridge load cell,weight machine load cell |
||
Technical Parameter:
| Rate load | 1, 2, 3, 5, 7.5, 10t | Insulation resistance | ≥5000MΩ |
| Accurancy class | 0.03 | Nominal Temp Range | -10~+40℃ |
| Sensitivity | 3.0±0.003mV/V | Service Temp Range | -30~+70℃ |
| Non-linearity | ±0.03%F.S | Safe Load Limit | 150%F.S |
| Hysteresis error | ±0.03%F.S | Breaking Load | 200%F.S |
| Creep(30min) | ±0.02%F.S | Nominal of range excitation | 10~12V DC |
| TC ZERO | ±0.02%F.S/10℃ | Protection Class | IP68 |
| TC SPAN | ±0.02%F.S/10℃ | Material | Alloy steel |
| Input resistance | 400±20Ω | Cable | Lengh: 4.2m(3t~5t), 5m(7.5t~10t) |
| Output resistance | 352±3Ω | Wiring method | Red: Exc+, Black: Exc-, Green: Sig+, White: Sig- |
