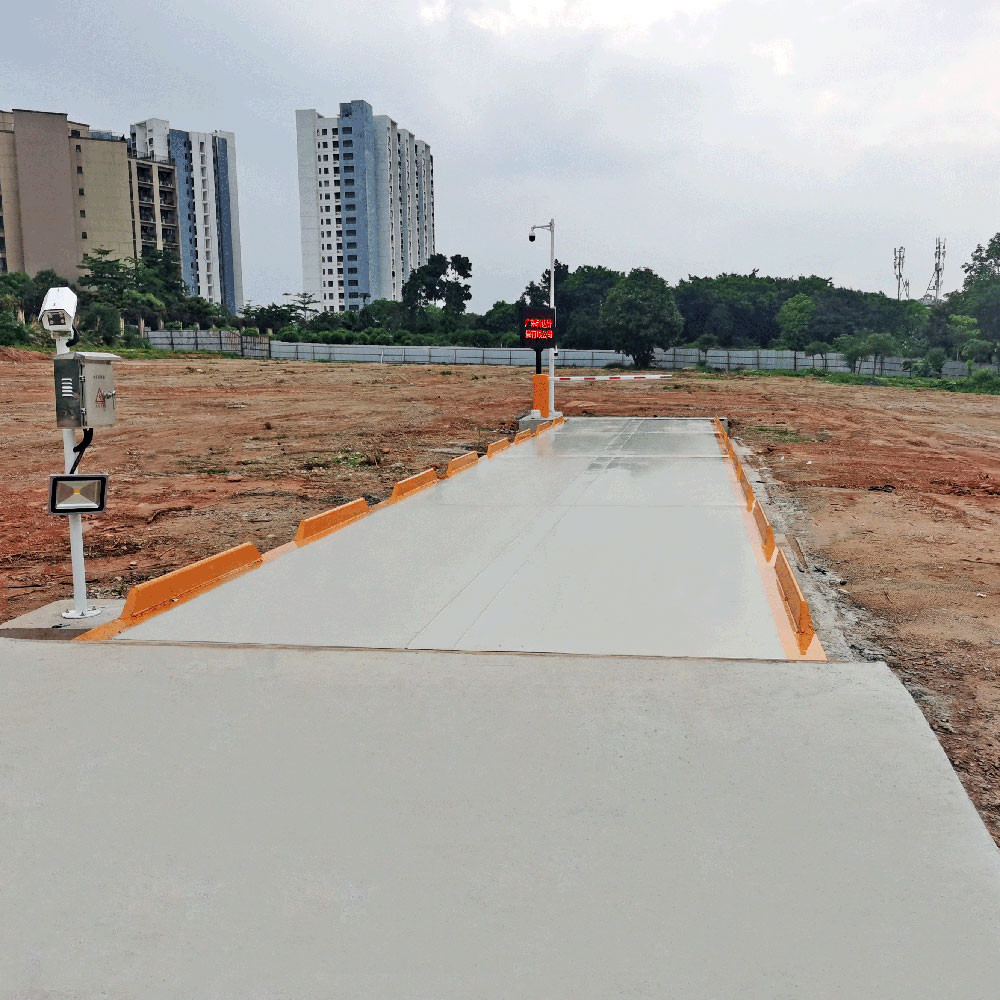

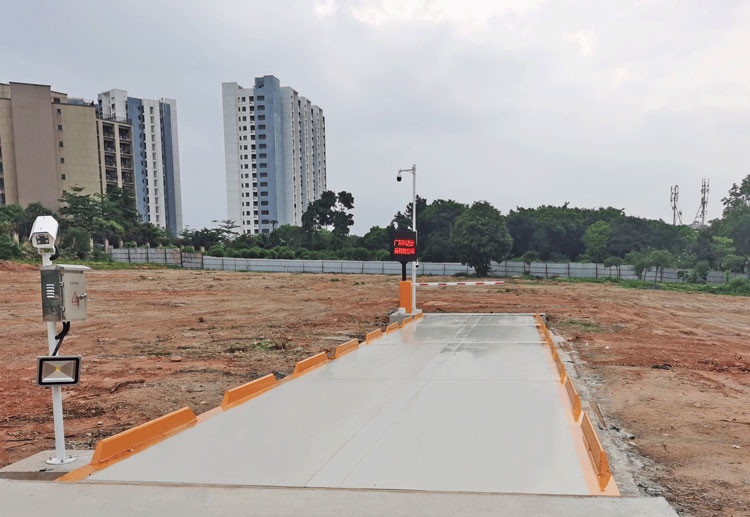

Pitless CE Electronic Truck Weighing System 50 Ton Weighbridge

Basic Information
Place of Origin: Guangdong, China
Brand Name: KEDA
Certification: ISO CE
Model Number: SCS-60T
Minimum Order Quantity: 1 set
Price: Negotiated price
Packaging Details: The platform of weighbridge is nude packed and the accessories are packed in carton or wooden box
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 200 Set/Sets per Month
Product Name: Digital Weighbridge Max. Cap: 60 Ton
Min. Cap: 400kg Accuracy: 20KG
Material: Q235 Steel Plate Size: Customized
Structure: U Beam With 6pcs
High Light:

Electronic Truck Weighing System 50 Ton


Pitless 50 Ton Truck Weighbridge


CE Electronic Truck Weighing System

Pitless Industrial Electronic Truck Weighing System 50 Ton Weighbridge For Sale


Designed with demanding industrial environments in mind, KEDA truck scales weigh vehicles dependably and accurately over a long scale life.


Our versatile truck scales can be paired with a range of indicators, software and accessories for a complete weighing and data management solution.

Truck scale is modular, standardized, scale body and cross can mix and match , Customers can assemble freely according to the required length.

Easy and simple to install, don't need to slip the scale body, a forklift can complete the installation.

Manufactured and built from high quality Q235 steel, your truck scale from KEDA will feature:
1. Automatic reset force transmission system
2. Can be matched with various indicators
3. Digital display gross weight, net weight, tare
4. Dynamic, under load and overload, etc state display
5. Modularization, standardization,
6. Subtract tare and clear tare automatically
7. Keyboard set/calibration
8. Vehicle No., tare storage, subitem accumulation, total accumulation
9. Data output/print automatically


Product description & specification
Width 3~3.5m
Length 6~24m
Accuracy class OIML(III)
Max Capacity range 10-150(Ton)
Safe overload 150%
Painting Anti rust and anti corrosion painting
Work temperature Indicator:-10°C to +40°C Scale platform: -30°C to +65°C
power supply 220V 60HZ or 110V 60HZ(AC and DC)
Packing detail Carton packing
Quality system ISO9001:2008
Certificate 04809Q11426R0M
Standard accessory part include:
Weighing indicator Digital type
Load cell/sensor 30 Ton high accuracy load cell
Printer Epson Brand optional(Use print out weight bill)
Junction boxes Stainless Waterproof type junction boxes (IP68)
Connect cable 50M(depends on the distance from scale house to scale)
Screw 8.8 class high strength Bolts-screws,limit screw,loading cell screw,cover plate screw
Installation tools Inner six angle spanner,Uncrock spanners,Screwdriver.
Optional accessory part include:
Scoreboard Convenience for seeing weighing result in the long distance.(LED)
Weighing management software Install software in PC and operate the truck ID,tare,net,gross,accumulation etc intelligence automatic system.
PC Brand desktop computer
Protect rail Use warm and protect safe weighing
Steel ramps Use convenient for truck drive on scale weighing
Note Other optional part:Camera,traffic light,fence,etc
