| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | KEDA |
| Certification: | ISO CE |
| Model Number: | SCS-80T |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiated price |
| Packaging Details: | The platform of weighbridge is nude packed and the accessories are packed in carton or wooden box |
| Delivery Time: | 10~25 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Set/Sets per Month |
| Material: | Q235 Steel | Size: | 3*12m |
|---|---|---|---|
| Capacity: | 80T | Load Cells: | Digital |
| Protection Class: | IP68 | Display: | LED |
| Software: | KEDA Weighing Mangement System | ||
| High Light: | 3*12m Truck Weight Scale,80T Steel Truck Weight Scale,IP68 Truck Weight Scale |
||

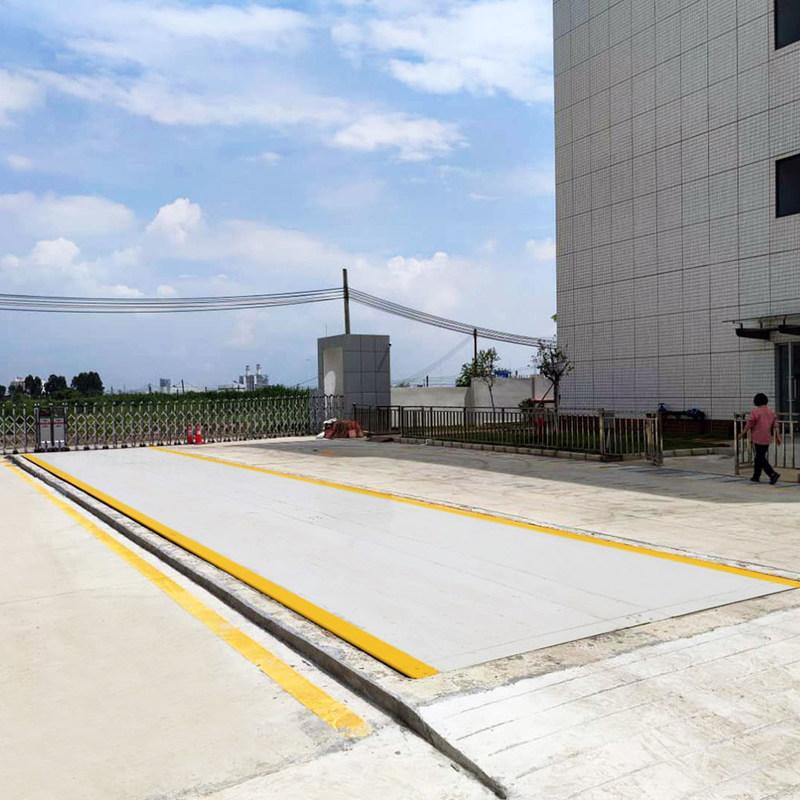

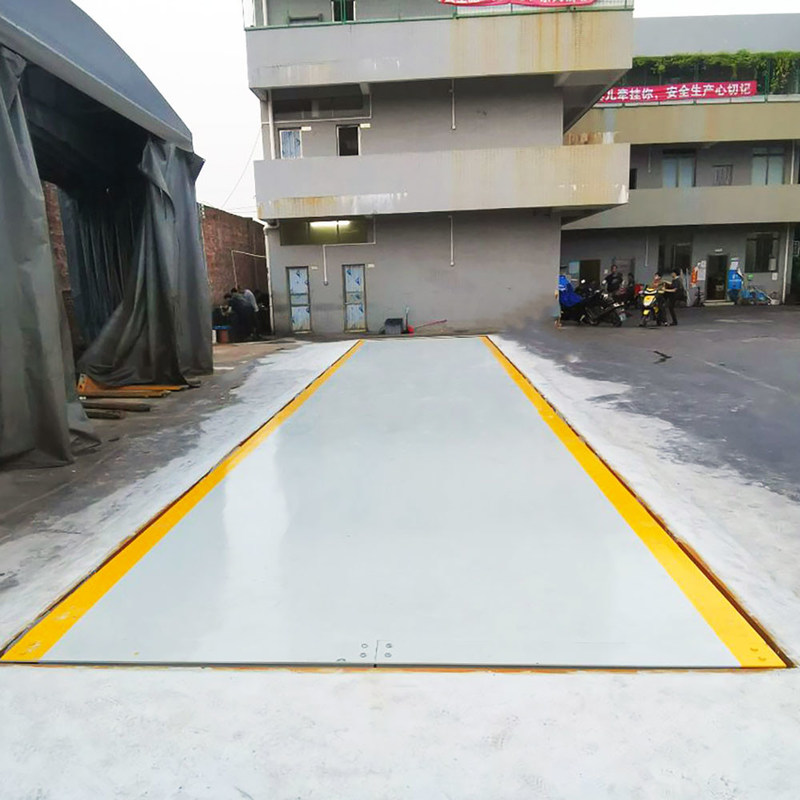

Exported 3*12 Meters Steel Desk Truck Weight Scale 80T
Characteristics of trcuk scales:
Combination type
Simple platform module
Suitable for analog and digital load cell
Heavy duty structure
High production efficiency
Able to realize production in batch
Convenient for container transportation
The composition and feature of SCS Series Truck Scale:
It mainly consists of platform, load cells,weighing indicator, connecting assembly, junction box, spacing devices and signal cable.but can also matching printers, large screen monitors, computers, weighing management software, stabilized voltage supply and other external equipment.
Technical data:
Weighing Accuracy: OIML Class III
Working voltage: ~220V(180V~245V)/50Hz
Relative humidity: ≤95%RH
Working temperature: -10°C~50°C(instrumentation). -30~70°C(transducer)
| Product description & specification | |
| Width | 3m,3.2m.3.4m,3.5m,4.5m |
| Length | 6m,7m,8m,9m,10m,12m,14m,16m,18m,20m,21m,22m,23m,24m |
| Accuracy class | OIML(III) |
| Max Capacity range | 10-200(Ton) |
| Safe overload | 150% |
| Painting | Anti rust and anti corrosion painting |
| Work temperature | Indicator:-10°C to +40°C Scale platform: -30°C to +65°C |
| power supply | 220V 60HZ or 110V 60HZ(AC and DC) |
| Packing detail | Carton packing |
| Quality system | ISO9001:2008 |
| Certificate | 04809Q11426R0M |
| Standard accessory part include: | |
| Weighing indicator | Analog type or digital type(Stainless surface with LED OR LCD) |
| Load cell/sensor | High accuracy load cell(Rate load 30ton) |
| Printer | Epson Brand optional(Use print out weight bill) |
| Junction boxes | Stainless Waterproof type junction boxes (IP68) |
| Connect cable | 50M(depends on the distance from scale house to scale) |
| Screw | 8.8 class high strength Bolts-screws,limit screw,loading cell screw,cover plate screw |
| Installation tools | Inner six angle spanner,Uncrock spanners,Screwdriver. |
| Optional accessory part include: | |
| Scoreboard | Convenience for seeing weighing result in the long distance.(LED) |
| Weighing management software | Install software in PC and operate the truck ID,tare,net,gross,accumulation etc intelligence automatic system. |
| PC | Brand desktop computer |
| Protect rail | Use warm and protect safe weighing |
| Steel ramps | Use convenient for truck drive on scale weighing |
| Note | Other optional part:Camera,traffic light,fence,etc |
