U Beam Digital Vehicle Weight Scales Weighbridge System 120 Ton

Basic Information
Place of Origin: Guangdong, China
Brand Name: KEDA
Certification: ISO CE
Model Number: SCS-60T
Minimum Order Quantity: 1 set
Price: Negotiated price
Packaging Details: The platform of weighbridge is nude packed and the accessories are packed in carton or wooden box
Delivery Time: 10~25 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 Set/Sets per Month
Model: SCS-60T Material: 10~14mm Thichness Q235 Steel Plate
Structure: U Beam Girders With 6pcs And 6mm Thickness Capacity: 120 Ton
Size: Custom Display: LED
Load Cells: Digital 30T Warranty: 12 Months
High Light:

U Beam Vehicle Weight Scales

,

120 Ton Digital Vehicle Weight Scales

,

U Beam Vehicle Weighbridge System

Digital Weighbridge System Electronic Weigh Scale Connect Computer



U Beam Digital Vehicle Weight Scales Weighbridge System 120 Ton 0

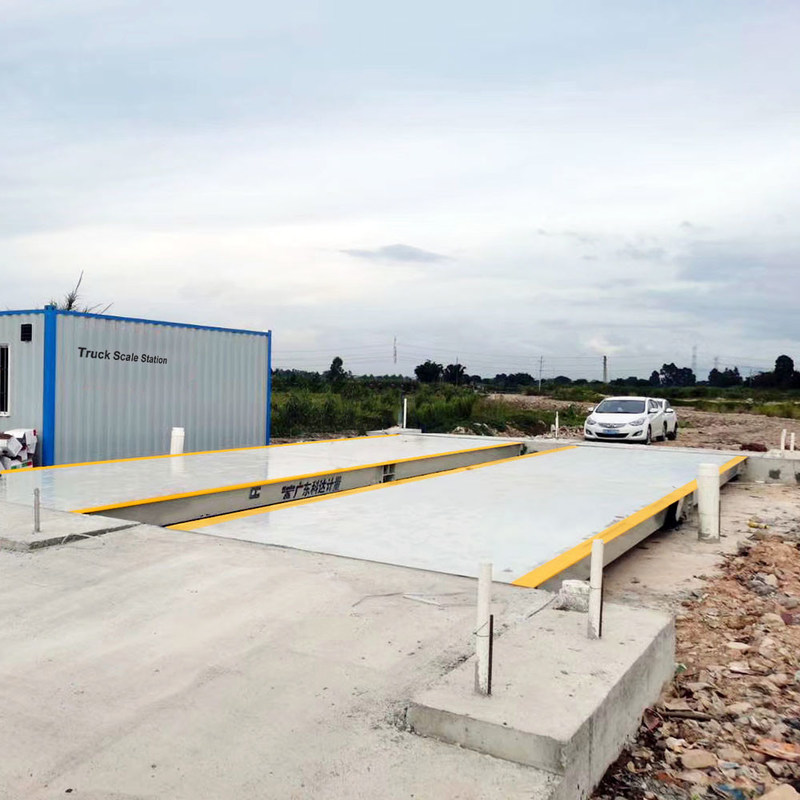

Keda Digital Eletronic Truck scale Introduce



The export split truck scale adopts the all-electronic modular vehicle weighing system designed by the world's advanced weighing sensors and weighing indicators and various external equipment. The whole truck scale system has strong environmental adaptability. After the configuration is strengthened, it can be fully intelligent and unattended, and the metering performance is superior, the accuracy is high, the long-term stability is good, and the installation, commissioning and maintenance are convenient. Widely used in foreign metallurgy, mining, machinery, chemical, port and road cargo stations and other industries.



Truck scale Main Features



  1. Plain plate or chequered plate optional
  2. From side to access to the load cell
  3. Middle dissected, with bolts connection
  4. Composed of 4 or 6 U beams and C channel beams, robust and rigid.
  5. Double shear beam load cell or column load cell selectable
  6. Easy assembly and installation
  7. Pit & pitless mounted alternatively, and pitless mounted more often
  8. Side rails optional (preventing trucks from slipping from the platform)



Name Weighbridge
Structure U-beam
Load capacity 30T,40T,50T,60T,80T,100T,120T,150T,200T
Platform Dimension (L*W): 3 x10/12/14/15/18/20/22/24m,allowed OEM
Installation height about 500mm (scale body and load cell)
Accuracy Grade OIML III
Platform Material 10mm Q235 Carbon Structural Steel OR 8mm 610L high-strength steel
U-beam Material 6mm 610L high-strength steel
Division value 10kg/20kg/50kg
Load sensor ZEMIC ,KELI
Load sensor Qty. Based on OEM size
Indicator Ditigital type, YAOHUA
Painting Processing Primer paint*2, coat paint*2
Power Supply: Rechargeable Battery
Available color grey, blue
Packing nuke packing with Felt cushion covers all corners
MOQ 1pcs
Delivery Time 15~25 work days
Payment T/T or LC at sight



U Beam Digital Vehicle Weight Scales Weighbridge System 120 Ton 1

U Beam Digital Vehicle Weight Scales Weighbridge System 120 Ton 2

U Beam Digital Vehicle Weight Scales Weighbridge System 120 Ton 3
