| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | KEDA |
| Certification: | ISO9001:2015 |
| Model Number: | SCS-60T |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiated price |
| Packaging Details: | 20GP or 40GP container (the platform of truck scale is nude packed and the accessories are packed in carton or wooden box) |
| Delivery Time: | 15~25days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2000+ set per year |
| Name: | 60T Truck Scale | Structure: | U-beam |
|---|---|---|---|
| Capacity: | 30T To 120T | Size: | Custom |
| Shipping: | 20GP Container | Load Cells: | Digital |
| Safe Overload: | 150%FS | Ultimate Overlad: | 300%FS |
| Indicator: | LED Display | Power: | 110V+-10%; 220V +-10% AC, 50 Or 60Hz |

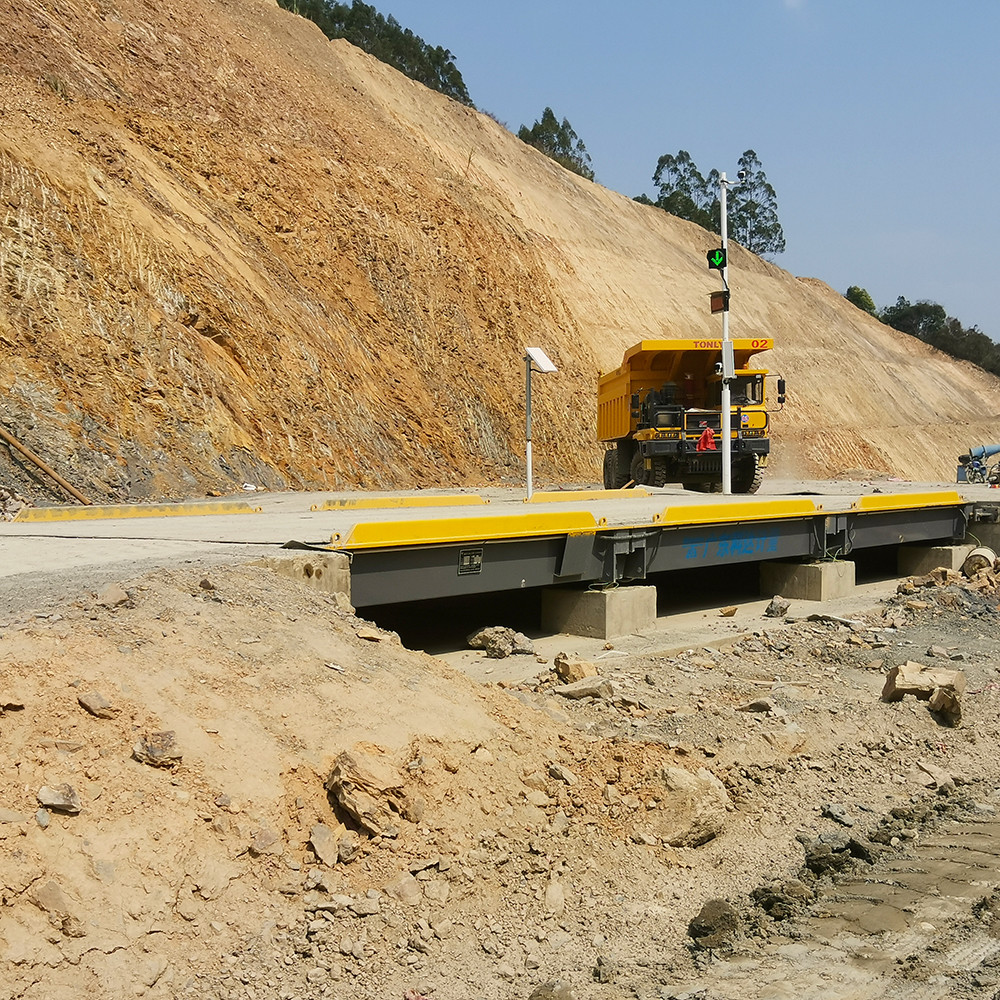

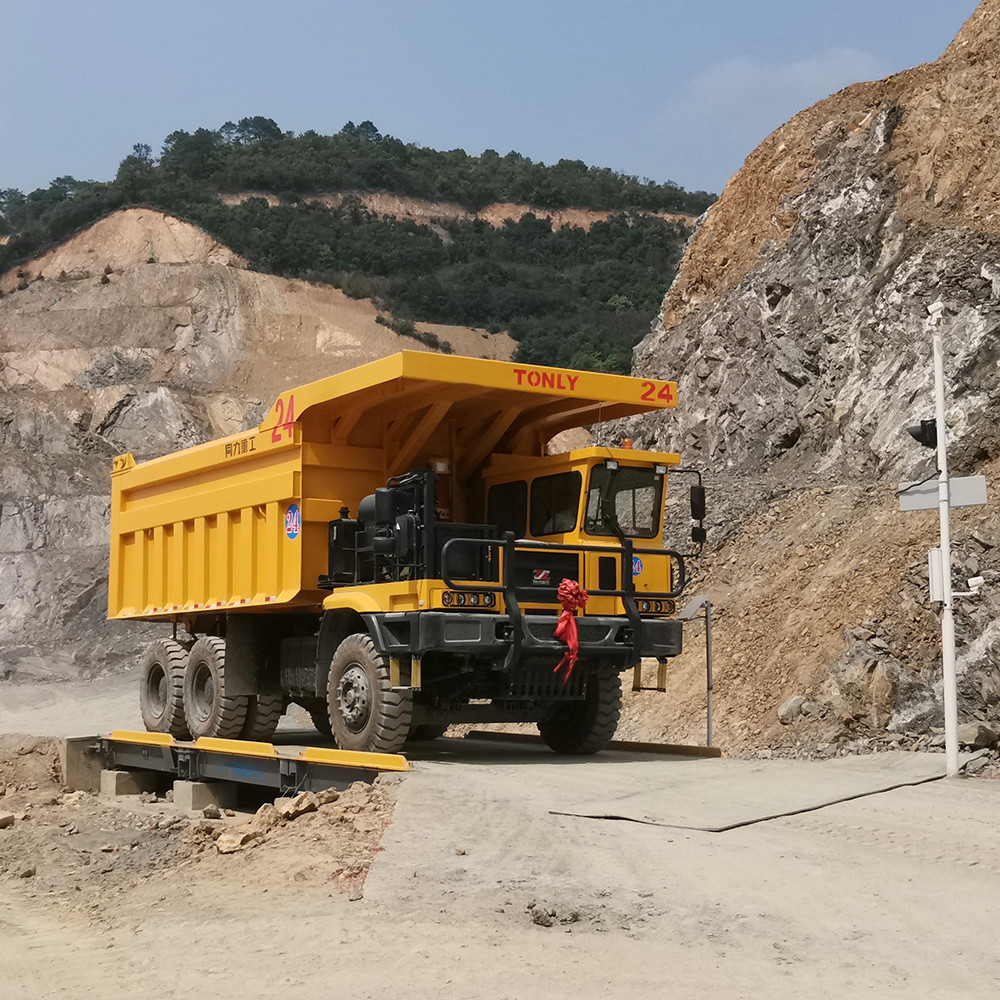

LED Display Waterproof 80T Weighbridge Truck Scale
Truck Scale Platform Features Specifications:
| Product description & specification | |
| Width | 3m,3.2m.3.4m,3.5m,4.5m |
| Length | 6m,7m,8m,9m,10m,12m,14m,16m,18m,20m,21m,22m,23m,24m |
| Accuracy class | OIML(III) |
| Max Capacity range | 10-200(Ton) |
| Safe overload | 150% |
| Painting | Anti rust and anti corrosion painting |
| Work temperature | Indicator:-10°C to +40°C Scale platform: -30°C to +65°C |
| power supply | 220V 60HZ or 110V 60HZ(AC and DC) |
| Packing detail | Carton packing |
| Quality system | ISO9001:2008 |
| Certificate | 04809Q11426R0M |
| Standard accessory part include: | |
| Weighing indicator | Analog type or digital type(Stainless surface with LED OR LCD) |
| Load cell/sensor | High accuracy load cell(Rate load 30ton) |
| Printer | Epson Brand optional(Use print out weight bill) |
| Junction boxes | Stainless Waterproof type junction boxes (IP68) |
| Connect cable | 50M(depends on the distance from scale house to scale) |
| Screw | 8.8 class high strength Bolts-screws,limit screw,loading cell screw,cover plate screw |
| Installation tools | Inner six angle spanner,Uncrock spanners,Screwdriver. |
| Optional accessory part include: | |
| Scoreboard | Convenience for seeing weighing result in the long distance.(LED) |
| Weighing management software | Install software in PC and operate the truck ID,tare,net,gross,accumulation etc intelligence automatic system. |
| PC | Brand desktop computer |
| Protect rail | Use warm and protect safe weighing |
| Steel ramps | Use convenient for truck drive on scale weighing |
| Note | Other optional part:Camera,traffic light,fence,etc |
