Digital Truck Scale System With RS232 Inferface

Basic Information
Place of Origin: Guangdong, China
Brand Name: KEDA
Certification: ISO CE
Model Number: SCS-40T
Minimum Order Quantity: 1 set
Price: Negotiated price
Packaging Details: The platform of weighbridge is nude packed and the accessories are packed in carton or wooden box
Delivery Time: 10~25 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 Set/Sets per Month
Model: SCS-40T Material: 10~14mm Thichness Q235 Steel Plate
Structure: U Beam Girders With 6pcs And 6mm Thickness Capacity: 40 Ton
Size: Custom Display: LED
Load Cells: Digital Load Cells Warranty: 12 Months

Digital Truck Scale System With RS232 Inferface



Company Catalogue.pdf



The Superiority of our truck scale :
Modularization, standardization, serialization platform, multi-unit combination
Automatic reset force transmission system
Can be matched with various indicators
Digital display gross weight, net weight, tare
Dynamic, under load and overload, etc state display
Digital filtering, clear tare automatically
Subtract tare and clear tare automatically
Keyboard set/calibration
Vehicle No., tare storage, subitem accumulation, total accumulation
Data output/print automatically



Truck scale Main Features

  1. Modularization, standardization, serialization platform, multi-unit combination
  2. Automatic reset force transmission system
  3. Can be matched with various indicators
  4. Digital display gross weight, net weight, tare
  5. Dynamic, under load and overload, etc state display
  6. Digital filtering, clear tare automatically
  7. Subtract tare and clear tare automatically
  8. Keyboard set/calibration
  9. Vehicle No., tare storage, subitem accumulation, total accumulation
  10. Data output/print automatically





Name Truck Scale
Structure U-beam
Load capacity 30T,40T,50T,60T,80T,100T,120T,150T,200T
Platform Dimension (L*W): 3 x10/12/14/15/18/20/22/24m,allowed OEM
Installation height about 500mm (scale body and load cell)
Accuracy Grade OIML III
Platform Material 10mm Q235 Carbon Structural Steel OR 8mm 610L high-strength steel
U-beam Material 6mm 610L high-strength steel
Division value 10kg/20kg/50kg
Load sensor ZEMIC ,KELI
Load sensor Qty. Based on OEM size
Indicator Ditigital type, YAOHUA
Painting Processing Primer paint*2, coat paint*2
Power Supply: Rechargeable Battery
Available color grey, blue
Packing nuke packing with Felt cushion covers all corners
MOQ 1pcs
Delivery Time 15~25 work days
Payment T/T or LC at sight

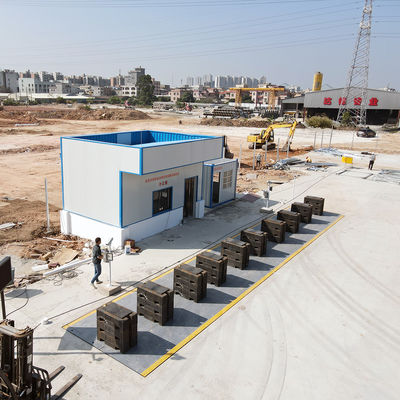

Digital Truck Scale System With RS232 Inferface 0

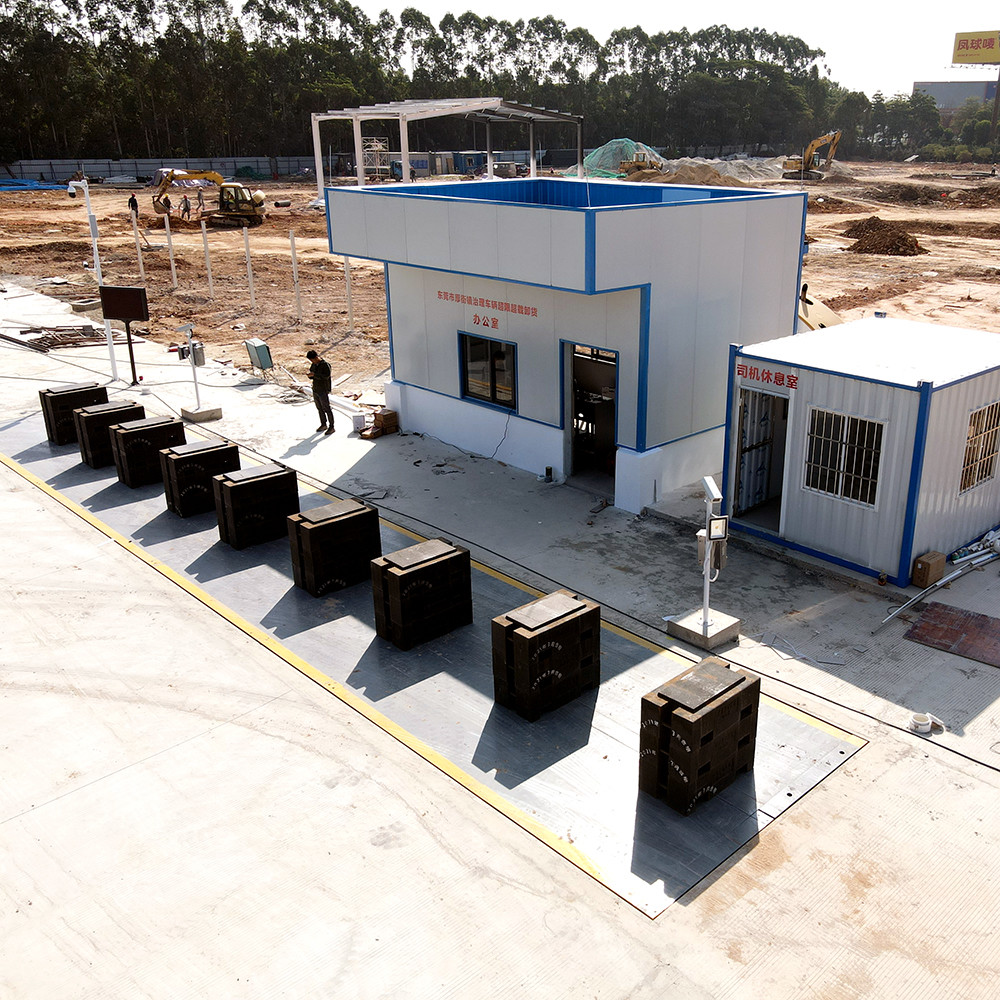

Digital Truck Scale System With RS232 Inferface 1

Digital Truck Scale System With RS232 Inferface 2

Digital Truck Scale System With RS232 Inferface 3
