| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | KEDA |
| Certification: | ISO9001:2015 |
| Model Number: | SCS-60T |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiated price |
| Packaging Details: | 20GP or 40GP container (the platform of truck scale is nude packed and the accessories are packed in carton or wooden box) |
| Delivery Time: | 15~25days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2000+ set per year |
| Name: | 50T Weighbridge | Structure: | U-beam |
|---|---|---|---|
| Capacity: | 60T To 120T | Accuracy: | 20kg Or 50kg |
| Size: | 3x15m Or Custom | Load Cells: | Digital |
| Safe Overload: | 150%FS | Ultimate Overlad: | 300%FS |
| Indicator: | LED Display | Power: | 110V+-10%; 220V +-10% AC, 50 Or 60Hz |

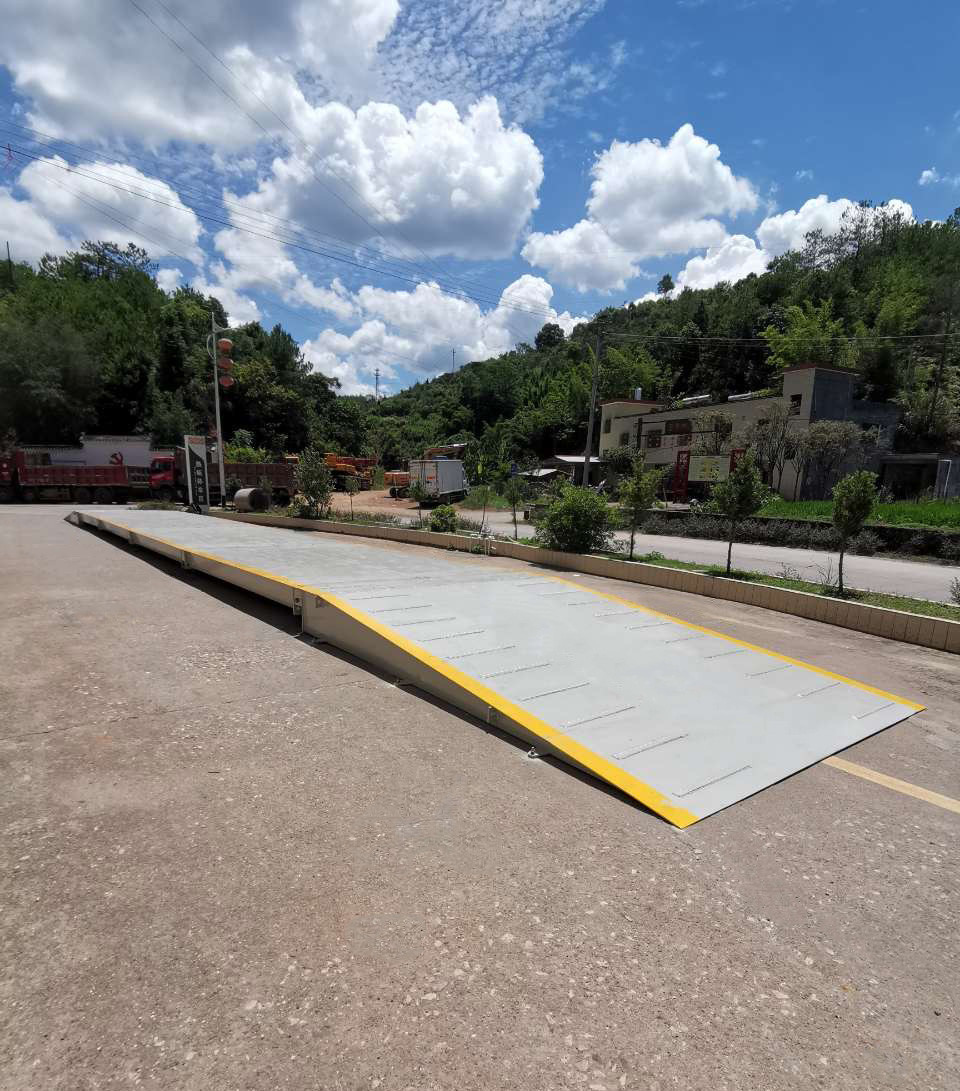

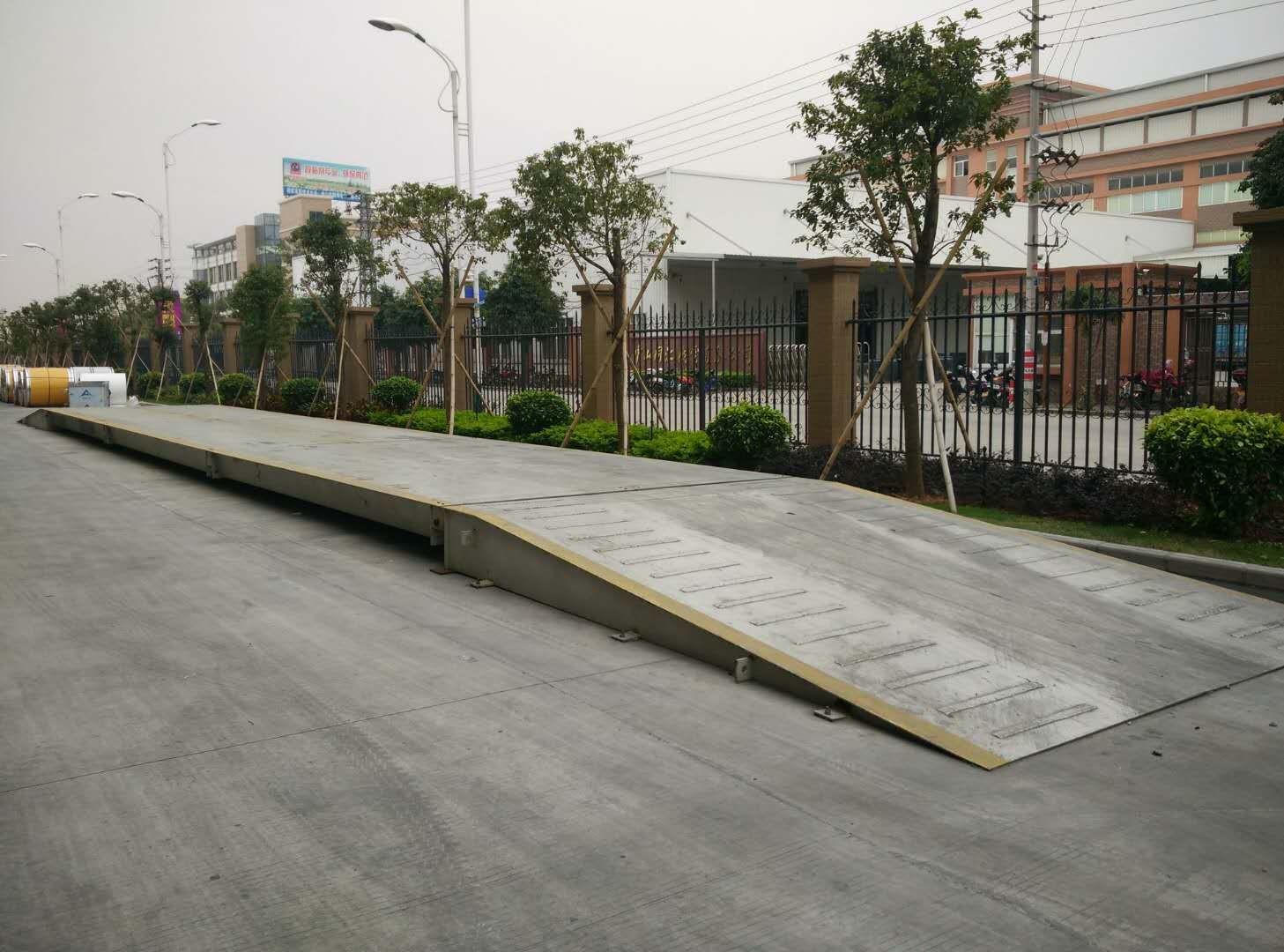

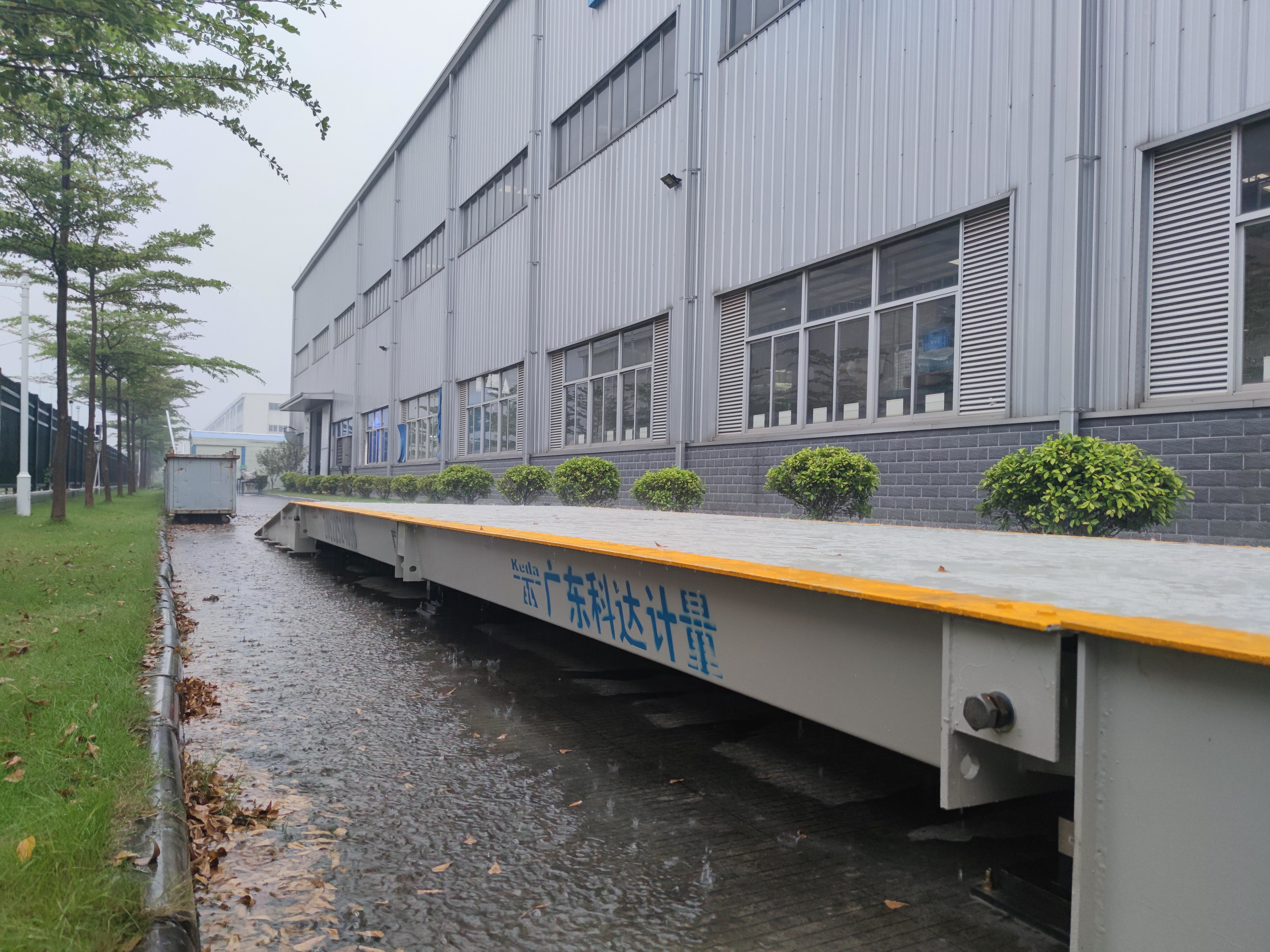

Steel Platform Industrial Truck Scales Digital Electronic
Features:
1. High accuracy Load Cell
2. Automatic reset power transmission system
3. Digital signals can be transmitted over a long distance
4. Showing the gross weight, net weight and tare by digital
5. Digital filtering and automatic clear trace
6. Data output, automatic printing
7. Fault diagnosis, weighing data memory
KEDA Digital U-beam Structure Weighbridge:
SCS-series electronic truck is a new generation truck scale, adopts all truck scale advantage. It’s gradually developed by our own technology and launched after long period of overloading tests.
The main beam is high-strength U-beam structure. The weighing platform panel is made of Q-235 flat steel, joined to a closed box-type structure, which is strong and reliable.
The welding process adopts unique fixture, precise space orientation and measurement technology.
The advanced welding technology effectively ensure the flatness of such a large weighing platform.
Specification
| Name | Weighbridge |
| Structure | Completed |
| Load capacity | 30T,40T,50T,60T,80T,100T,120T,150T |
| Platform Dimension | (L*W): 3 x10/12/14/15/18/20/22/24m, allowed OEM |
| Installation height | about 500mm (scale body and load cell) |
| Accuracy Grade | OIML III |
| Platform Material | 8~20mm Q235 Carbon Structural Steel OR 8mm 610L high-strength steel |
| U-beam Material | 5mm 610L high-strength steel |
| Division value | 5kg/10kg |
| Load sensor | ZEMIC, KELI |
| Load sensor Qty. | Based on OEM size |
| Indicator | Digital type, YAOHUA |
| Painting Processing | Primer paint*2, coat paint*2 |
| Power Supply: | Rechargeable Battery |
| Available color | grey, blue |
| Packing | nuke packing with Felt cushion covers all corners |
| MOQ | 1pcs |
| Delivery Time | 10 work days |
| Payment | T/T or LC at sight |
